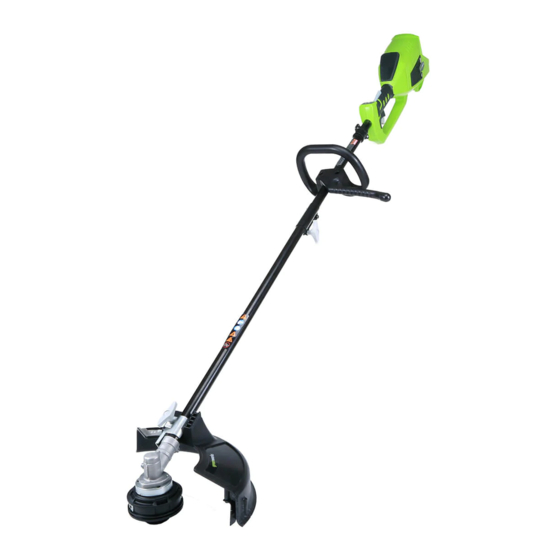

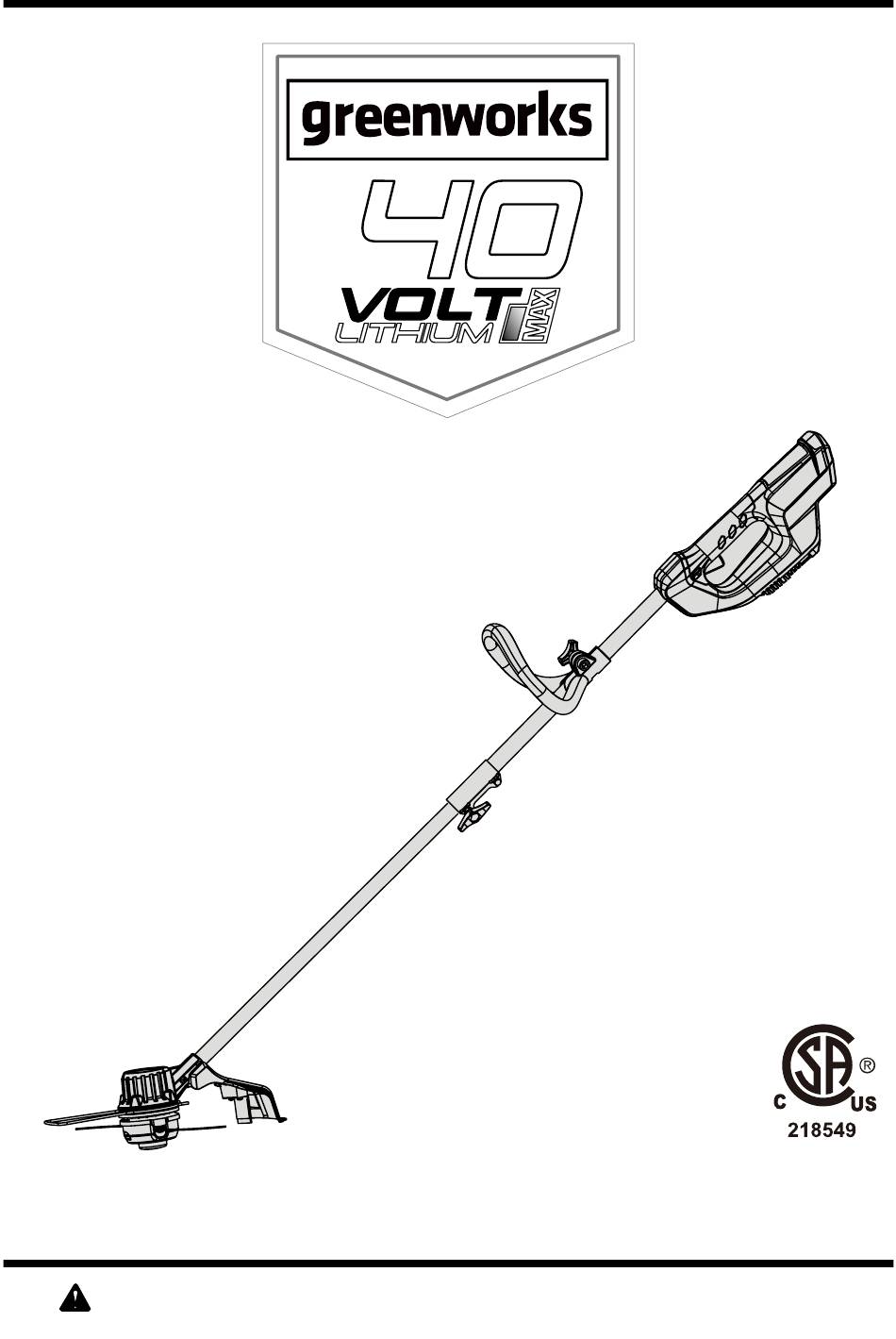

- Page 1 40V Cordless String Trimmer ST40L210 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 Important Safety Instructions ....................3 Symbols ..........................5 Know Your String Trimmer ....................7 Assembly ..........................9 Operation ........................... 1 5 Battery & Charger Maintenance..................2 4 Maintenance........................... 26 Environmentally Safe Battery Disposal .................27 Troubleshooting........................28 Warranty..........................30 Exploded View and Part List ........ -
Page 3: Important Safety Instructions
IMPORTANT SAfETY INSTRUCTIONS W A R N I N g Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Use only identical manufacturer’s replacement parts and accessories. Use of any other parts may create a hazard or cause product damage. -
Page 4: Battery & Charger Maintenance
IMPORTANT SAfETY INSTRUCTIONS • Do not dispose of the batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. • Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. -
Page 5: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYmBOL NAmE DESIgNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second) - Page 6 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYmBOL SIgNAL mEANINg DANgER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNINg Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 7: Know Your String Trimmer
KNOW YOUR STRING TRIMMER Fig. 1... - Page 8 KNOW YOUR STRING TRIMMER KNOW YOuR STRINg TRImmER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
-
Page 9: Assembly
ASSEMBLY uNPACKINg This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the tool carefully to make sure no breakage or damage occurred during shipping. •... - Page 10 ASSEMBLY W A R N I N g If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. W A R N I N g Do not attempt to modify this product or create accessories not recommended for use with this string trimmer.
- Page 11 ASSEMBLY ATTACHINg THE guARD (See Figure 3.) NOTE: Install the guard before the attachment is connected to the lower shaft. Invert the string trimmer to access the trimmer head. Remove supplied screws (1) from the trimmer head (4) with a philips head screwdriver (not included).
- Page 12 ASSEMBLY INSTALLINg THE uPPER SHAFT TO THE LOWER SHAFT (See Figure 4.) W A R N I N g Never install, remove, or adjust any attachment while string trimmer is running. Failure to stop the motor can cause serious personal injury. The attachment connects to the power head by means of a coupler device.
- Page 13 ASSEMBLY ATTACHINg THE AuXILIARY HANDLE (See Figure 5.) Press the auxiliary handle (1) onto the upper shaft so that the handle is angled toward the rear handle that allows for comfortable operation. Slide the auxiliary handle over the metal ring (2) and ensure the metal ring fits between the slot on the auxiliary handle.
- Page 14 ASSEMBLY ADJuSTINg THE CuTTINg SWATH (See Figure 6.) This trimmer is currently set at the 14 in. cutting swath. To adjust to a cutting swath of 16 in.: • Remove the battery pack. • Loosen the blade screw then rotate the line cut-off blade 180°. •...
-
Page 15: Operation
OPERATION W A R N I N g Read and understand entire Operator's Manual for each optional attachment used on this power head and follow all warnings and instructions. failure to follow all instructions may result in electric shock, fire and/or serious personal injury. W A R N I N g Do not allow familiarity with this product to make you careless. - Page 16 OPERATION INSTALLINg THE BATTERY PACK (See Figure 7.) • Place the battery pack in the trimmer. Align raised ribs (3) on battery pack with grooves in the trimmer’s battery port. • Make sure the latch on the back of the battery pack clicks into place and that battery pack is fully seated and secure in the trimmer before beginning operation.
- Page 17 OPERATION OPERATINg THE TRImmER (See Figure 9.) W A R N I N g Always hold the string trimmer away from the body keeping clearance between the body and the string trimmer. Any contact with the string trimmer cutting head while operating can result in serious personal injury.
- Page 18 OPERATION W A R N I N g Any contact with the attachment cutting head can result in burns and/or other serious personal injury. W A R N I N g Read the safety information for safe operation when using a blade attachment and refer to the safety rules and instructions in your attachment manual.
- Page 19 OPERATION REPLACINg THE BumP KNOB (See Figure 11.) Remove the battery pack. Press the tabs simultaneously on the side of the trimmer head and remove cover and spool. Fig. 11.1 While holding the bump knob (1), firmly pull it out or pry out with a wrench. Fig.
- Page 20 OPERATION REPLACINg THE LINE (See Figure 12.) Press the tabs simultaneously on the side of the trimmer head and remove cover and spool. Cover Spool Fig. 12.1 Remove any remaining line. Clean dirt and debris from all parts. Replace spool if it is worn or damaged. Replace with a pre-wound spool, or replace line using 25 feet (8 meters) of 0.080 inch (2.0 mm) diameter line.
- Page 21 OPERATION When installing new line on an existing spool, hold the spool as shown. Bend the line at the midpoint and insert the bend into the slot in the center rim of the spool. Ensure line snaps into position in the slot. Slot Fig.
- Page 22 OPERATION Place the spool in the cover as shown below. Fig. 12.5 10. Insert the ends of the lines through the line exit holes in the sides of the cover. Fig. 12.6 11. Reinstall the spool and cover onto the trimmer head. Push until cover snaps into place. Fig.
- Page 23 OPERATION CuTTINg TIPS (See Figure 13.) • Keep the trimmer tilted toward the area being cut; this is the best cutting area. • The trimmer cuts when passing the unit from right to left. This will avoid throwing debris at the operator.
- Page 24 BATTERY & CHARGER MAINTENANCE CHECKINg BATTERY CAPACITY Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below: BATTERY CAPACITY LIGHT METER INDICATOR (BCI) BUTTON BATTERY METER Lights Capacity 4 Green Lights The battery is at full capacity 3 Green Lights The battery is at 75% capacity...
- Page 25 BATTERY & CHARGER MAINTENANCE CHECKINg THE CHARgE If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material. •...
-
Page 26: Maintenance
MAINTENANCE gENERAL mAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, lubricant, grease, etc. Always store the machine clean and in a dry enclosure with the battery charged. maintenance task Each time Every two... -
Page 27: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAfE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this string trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N g All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 28: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1. The battery pack is not 1. Attach the battery pack to the trimmer. attached to the trimmer. 2. No electrical contact 2. Remove battery check contact and reinstall between the trimmer and the battery pack. String trimmer battery. - Page 29 TROUBLESHOOTING Problem Cause Solution 1. Lines are welded to 1. Lubricate with silicone spray. themselves. 2. Not enough line on 2. Install more line. Refer to Line spool. Replacement earlier in this manual. Lines will not advance. 3. Lines are worn too short. 3.
-
Page 30: Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 31: Exploded View And Part List
EXPLODED VIEW... - Page 32 PARTS LIST Item No. Part No. Description 2100402 40V String trimmer 34105874 Auxiliary handle 333051429 Clamp 34116884AE Knob 34107511AC Knob 333041429 Edge guide 341081429AC Guard 32207319 Screw 341021429 Spool 341041429AB Bump knob 341031429 Spool cover...
- Page 33 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (10-13-16) Printed in China on 100% Recycled Paper...
