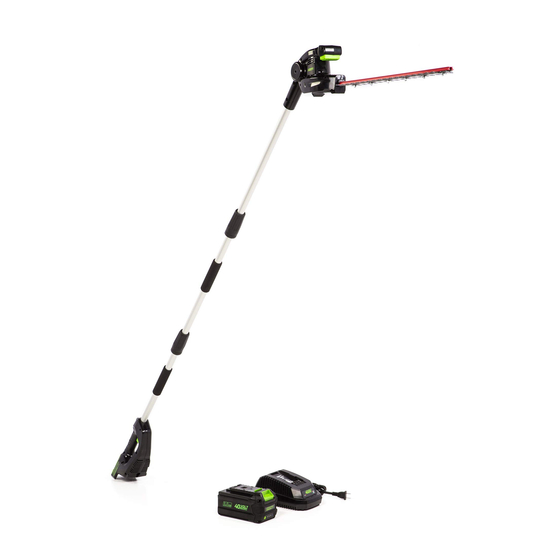

40V CORDLESS POLE HEDGE TRIMMER
HT-180-XR-T
Owner's Manual
TOLL-FREE HELPLINE: 1-833-493-5483
www.greenworkselite.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-180-XR-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GreenWorks Tools HT-180-XR-T

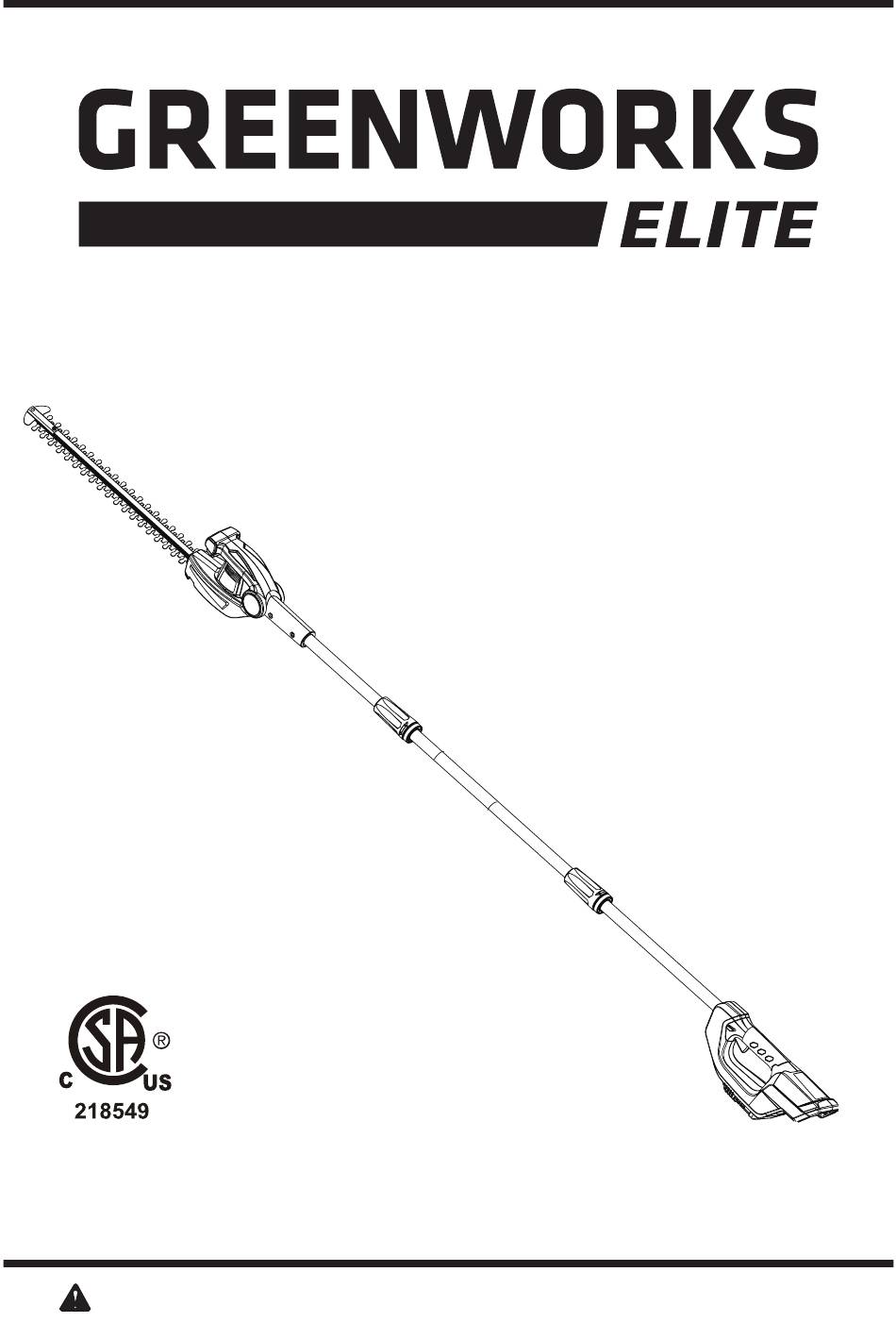

  • Page 1 40V CORDLESS POLE HEDGE TRIMMER HT-180-XR-T Owner’s Manual TOLL-FREE HELPLINE: 1-833-493-5483 www.greenworkselite.com Read all safety rules and instructions carefully before operating this tool.
  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product Specifications ......................2 Important Safety Instructions ....................3 Symbols ..........................8 Know Your Pole Hedge Trimmer ..................1 0 Assembly Instruction ......................11 Operation Instruction ......................1 3 Maintenance ........................17 Environmentally Safe Battery Disposal ................1 8 Troubleshooting .........................
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust- related hazards.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS POLE HEDGE TRIMMER SAFETY WARNINGS • Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS FOR ALL APPLIANCES • Avoid dangerous environment. Don’t use appliances in damp or wet locations. • Don’t use in rain. • Keep children away. All visitors should be kept at a distance from work area. • Dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear footwear is recommended when working outdoors.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS C A U T I O N The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines, Consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the extended reach hedge trimmer.
  • Page 8: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.
  • Page 10: Know Your Pole Hedge Trimmer

    KNOW YOUR POLE HEDGE TRIMMER Blade Seven-Position Pivoting Head Pivot Collar Button Safety Lock Button Collar Blade Cover Trigger Battery Compartment FIG.1 KNOW YOUR POLE HEDGE TRIMMER (See Figure 1.) The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.
  • Page 11: Assembly Instruction

    ASSEMBLY INSTRUCTION UNPACKING • This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
  • Page 12 ASSEMBLY INSTRUCTION W A R N I N G Do not insert the battery until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. (See Figure 2.) FITTING THE HEDGE TRIMMER HEAD The hedge trimmer head (1) can be mounted directly into handle pole (2) so as to achieve the standard length.
  • Page 13: Operation Instruction

    OPERATION INSTRUCTION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear safety goggles or safety glasses with side shields when operating power tools.
  • Page 14 OPERATION INSTRUCTION W A R N I N G Let the tool work at its own pace. Do not overload. TURNING THE TOOL ON AND OFF (See Figure 6.) SWITCHING ON 1. Press the safety lock button (1) using your thumb and at the same time squeeze the on/off switch (2).
  • Page 15 OPERATION INSTRUCTION (See Figure 7.) ADJUSTING THE TRIMMER HEAD ANGLE The trimmer head pivots 135° and can be locked into 7 positions within that range. 1. Squeeze the pivot button (1). 2. While squeezing the pivot button, move the head forward or backward. 3.
  • Page 16 OPERATION INSTRUCTION FIG.8 FIG.9 W A R N I N G Keep hands away from blade. Contact with blade will result in serious personal injury.
  • Page 17: Maintenance

    MAINTENANCE CLEANING, MAINTENANCE AND STORAGE Your tool has been designed to operate over a long period of time with a minimum of mainte- nance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. Your charger does not require any maintenance apart from regular cleaning. W A R N I N G Before performing any maintenance on the tool, remove the battery from the tool.
  • Page 18: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.
  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Battery not installed properly. Check the battery installation. Fully charge the battery by Battery discharged. following the instructions in the charger manual. Tool will not start. Press down the safety lock Safety lock button not button before engaging the actuated.
  • Page 20: Limited Warranty

    LIMITED WARRANTY YEAR/ANS/AN TOOL WARRANTY GARANTIE DE L'OUTIL GARANTÍA DE LA HERRAMIENTA GREENWORKS ELITE hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS ELITE, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
  • Page 21: Exploded View

    EXPLODED VIEW...
  • Page 22: Parts List

    PARTS LIST PART NO. DESCRIPTION RA341051426E KIT, REAR HANDLE ASSEMBLY RA341071726 KIT, TRIGGER SWITCH ASSEMBLY RA363012001 KIT, STROKE RESET SWITCH ASSEMBLY RA36200581A KIT, CONTROL BOARD ASSEMBLY RA34101994 KIT, HOUSING INSERT ASSEMBLY RA331012704 KIT, HANDLE POLE ASSEMBLY RA332091071B KIT, EXTENSION TUBE ASSEMBLY RA341102229 KIT, MOTOR ASSEMBLY RA333053117...
  • Page 23 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-833-493-5483 Rev: 00 (28-08-17)
