NXPERIENCE SOFTWARE
You must use NXperience software to configure and download data
from LogBox-AA. To install the software, simply run the file
NXperience_Setup.exe, available on our website.
RUNNING NXPERIENCE

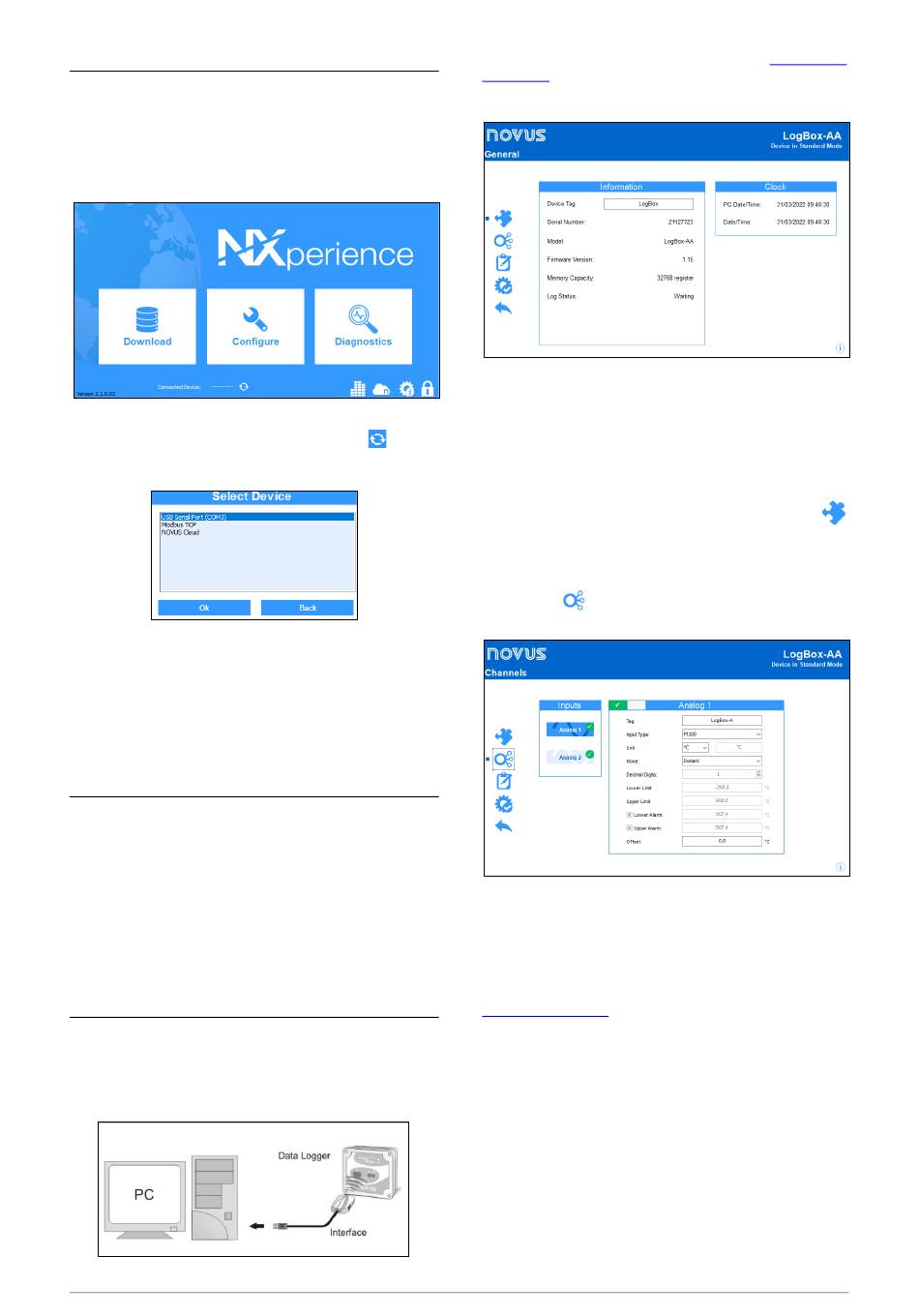

When you start NXperience, the home screen will appear:
Figure 3 – NXperience home screen
Next, at the bottom of the screen, you must click on the
indicate the serial port to be used by the IR-LINK3 Optical Interface,
which must be connected to the computer USB:
Figure 4 –
In the example above you should select the option "USB Serial Port
(COM3)" and click Ok. After that, simply click on the Configure
button and then on Read Device to perform the connection process.
Note: This manual provides basic information on how to configure
the device. For more specific information about other features,
please refer to the NXperience manual, available on our website.
IR-LINK3 OPTICAL INTERFACE
To configure, monitor, or download data from the logger through the
NXperience software, you must use an IR-LINK3 Communication
Interface (purchased separately).
IR-LINK3 acts as an intermediary between the device and the
computer being used and allows you to transmit and receive data
from the logger via infrared signals.
The driver will be installed during the NXperience installation
process. Once this is done, IR-LINK3 will be recognized whenever it
is connected to the computer.

CONFIGURING THE LOGGER

To configure the logger, IR-LINK3 Communication Interface must
be connected to the computer being used.
IR-LINK3 must be directed constantly towards the logger
communication window (see Figure 5) and kept at approximately 15
cm:
Figure 5 – Interface directed to the logger
NOVUS AUTOMATION
button to
Select a device
According to the instructions defined in the
SOFTWARE item, you must click the Read Device button to start the
communication between the recorder and the software. Then, the
general settings screen will be presented:
Figure 6 –
This screen displays general information about the device, such as
serial number, firmware version, and model. In the Device Tag
parameter, you can set a specific name for LogBox-AA.
If the communication between the logger and the computer is
established, the date and time displayed on the screen will be
constantly updated.
Afterwards, if you need to return to this screen, just click on the
button.
CHANNELS
By clicking the button, you can access the configuration fields of
the logger analog channels:
Figure 7 –
The configuration fields for the analog channels are the following:
Tag: Set of up to 8 characters that allows you to identify the variable.
Input Type: Allows you to define the signal applied to the analog
input of the logger. The list shows all the available input options. The
option adopted must be according to the jumper configuration (see
INPUT CONNECTIONS item).
Unit: Allows you to define the unit to be used for the measured
variable.
Mode: Allows you to define the recording mode:
Instant: The device performs a measurement. The value is
recorded at each acquisition "Interval".
Medium: The device periodically takes ten measurements over
each acquisition "Interval". The recorded value is the average of
these measurements.
Minimum: The device periodically takes ten measurements over
each acquisition "Interval". The recorded value corresponds to the
smallest measurement.
Maximum: The device periodically takes ten measurements over
each acquisition "Interval". The recorded value corresponds to the
largest measure.
LogBox-AA Data Logger
NXPERIENCE
General settings
Analog channel
