Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

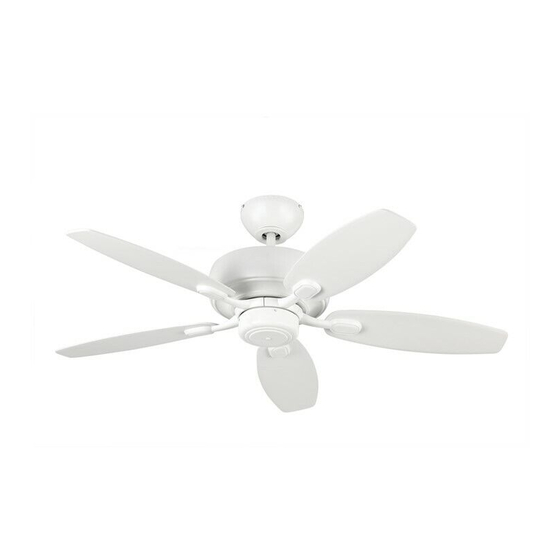

5CQM44XXX Series Fan
CUL Model NO. : 5CQM44XXX
RETAILER NAME:
RETAILER ADDRESS:
6.6 kg
14.52 lbs
Total fan weight
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company 5CQM44RZW
Summary of Contents for Monte Carlo Fan Company 5CQM44RZW
- Page 1 Owner’s Guide and Installation Manual 5CQM44XXX Series Fan CUL Model NO. : 5CQM44XXX Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 6.6 kg 14.52 lbs Total fan weight...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. -
Page 3: Installation Instruction
P reparation Warning: Before starting assembly of this product, please disconnect power to area and familiarize yourself with the safety information provided on page 2. Determine mounting method to use. A - Downrod Mount B - Angle Mount Important: If using the angle mount, check to make sure the ceiling angle is not steeper than 30º. - Page 4 Installation Instruction (Downrod Mount) Partially loosen downrod set screws from yoke at top of motor assembly. Downrod Remove keeper pin and cross pin from yoke, and save for later use. Canopy Place downrod over canopy and yoke cover. Thread lead wires and Yoke cover safety cable from motor assembly through downrod.
- Page 5 Installation Instruction (Flushmount) Fig. 5 Remove canopy cover by turning counterclockwise. There are 6 holes on the bottom of the canopy, 3 of them are larger. (Fig. 5) Canopy cover Thread lead wires and safety cable through canopy. Place canopy over Screws yoke, aligning larger holes in canopy with the 3 existing screws on top of motor housing.
- Page 6 Wall Switch Wiring White Power Black Line Warning: Make sure main power is turned off before making Grounded/ wiring. Green Black Make wire connections as indicated. Connect Black and Blue Blue wire from fan to Black (Hot) wire from house. Connect White White wire from Fan to White (Neutral) wire from house.
- Page 7 Blade installation Install blade bracket with blade by 3 blade screws and washers provided. Tighten screws securely. Repeat this process for remaining blades. (Fig. 9) Remove shipping stabilizers from motor assembly. Install the blade assembly to motor using the preinstalled screws. Tighten screws securely.
-
Page 8: Troubleshooting
Trouble Shooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. - Page 9 Oct.2019 Jun.2020 branding...
