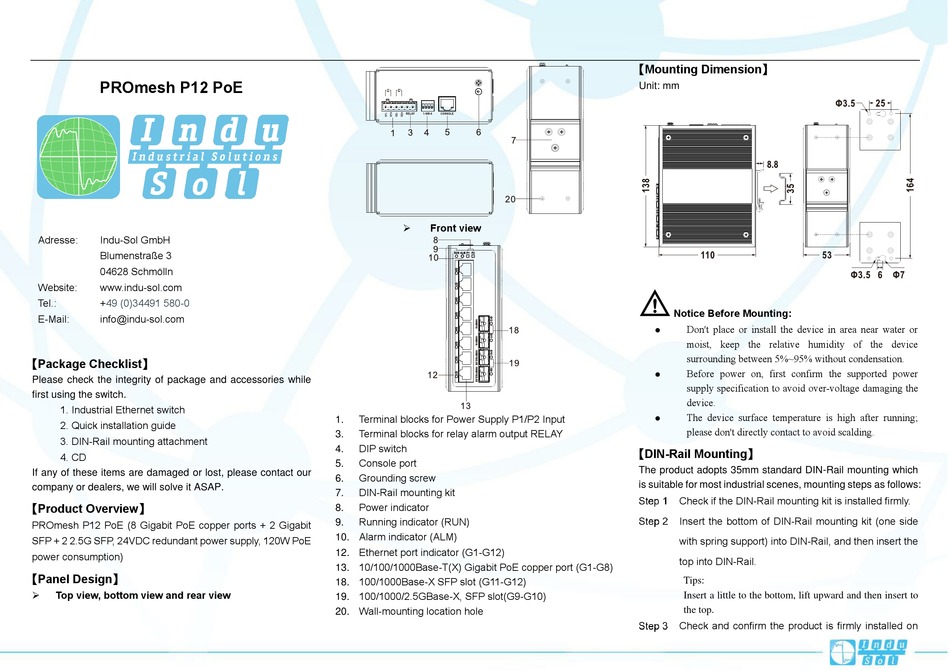

Indu-Sol PROmesh P12 PoE Quick Start Manual

PROmesh P12 PoE
Adresse: Indu-Sol GmbH
Blumenstraße 3
04628 Schmölln
Website: www.indu-sol.com
Tel.: +49 (0)34491 580-0
E-Mail: info@indu-sol.com
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Quick installation guide
3. DIN-Rail mounting attachment
4. CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】

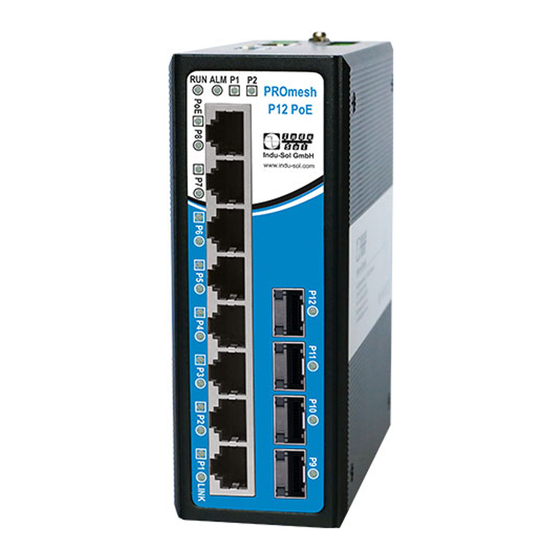

PROmesh P12 PoE (8 Gigabit PoE copper ports + 2 Gigabit
SFP + 2 2.5G SFP, 24VDC redundant power supply, 120W PoE
power consumption)
【Panel Design】
 Top view, bottom view and rear view
 Front view
Terminal blocks for Power Supply P1/P2 Input
1.
Terminal blocks for relay alarm output RELAY
3.
DIP switch
4.
Console port
5.
Grounding screw
6.
DIN-Rail mounting kit
7.
Power indicator
8.
Running indicator (RUN)
9.
10. Alarm indicator (ALM)
12. Ethernet port indicator (G1-G12)
13. 10/100/1000Base-T(X) Gigabit PoE copper port (G1-G8)
18. 100/1000Base-X SFP slot (G11-G12)
19. 100/1000/2.5GBase-X, SFP slot(G9-G10)
20. Wall-mounting location hole
【Mounting Dimension】
Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or

moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
The device surface temperature is high after running;

please don't directly contact to avoid scalding.
【DIN-Rail Mounting】
The product adopts 35mm standard DIN-Rail mounting which
is suitable for most industrial scenes, mounting steps as follows:
Check if the DIN-Rail mounting kit is installed firmly.
Insert the bottom of DIN-Rail mounting kit (one side
with spring support) into DIN-Rail, and then insert the
top into DIN-Rail.
Tips:
Insert a little to the bottom, lift upward and then insert to
the top.
Check and confirm the product is firmly installed on
