BGS technic 8216 Instruction Manual

Engine Timing Tool Set VW 2,4 & 2,5 Diesel

GENERAL

This timing tool set enables checking and adjusting of the engine timing and is suitable for VW models
Transporter 2.4D (95-03), Crafter 2.5TDI (06-09) and LT models with engine codes AAB, AJA, BJJ,
BJK, BJL, BJM.

SAFETY ADVICE

x
DO NOT use the set if any parts are missing or damaged.
x
Never lay tools on the vehicle's battery. This may short the terminals together.
x
Be careful when working on running engines. Loose clothes, tools and other things can be caught
up in revolving parts which may lead to serious injuries.
x
Keep children and other unauthorised persons away from the working area.
x
Be careful when working on hot engines – risk of burn!
x
Remove the ignition key before repair so that the engine will not start unintentionally.
x
This manual is just brief information and will not replace a garage handbook.
x
Always consult specific service literature for information about torques, assemblies and
disassemblies etc.
x
After any successful maintenance and before starting the engine, you should rotate the engine for
two turns manually to check the new control time.
x
Do not use cleaning fluids on belts, sprockets or rollers
x
Turn the engine in the normal direction (clockwise unless stated otherwise)

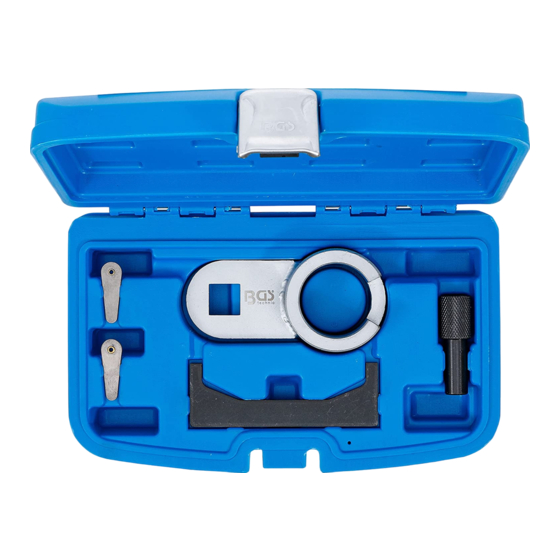

TOOLS

A
Crankshaft Counterholder
B
Pump Locking Tool
C
Crankshaft Adjusting Tool
SW-Stahl und Werkzeugvertriebs GmbH
L e v e k r u s r e t S a r s s e 6 5
D 4 - 2 8 9 7 R e m s c h e d i
to be used as
OEM T10025
to be used as
OEM 2064
to be used as
OEM 2065A
Tel. +49 (0) 2191 / 46438-0
F ax +49 (0) 2191 / 46438-40
- E M a : l i n i o f @ s w s a t l h d . e
Art. 8216
