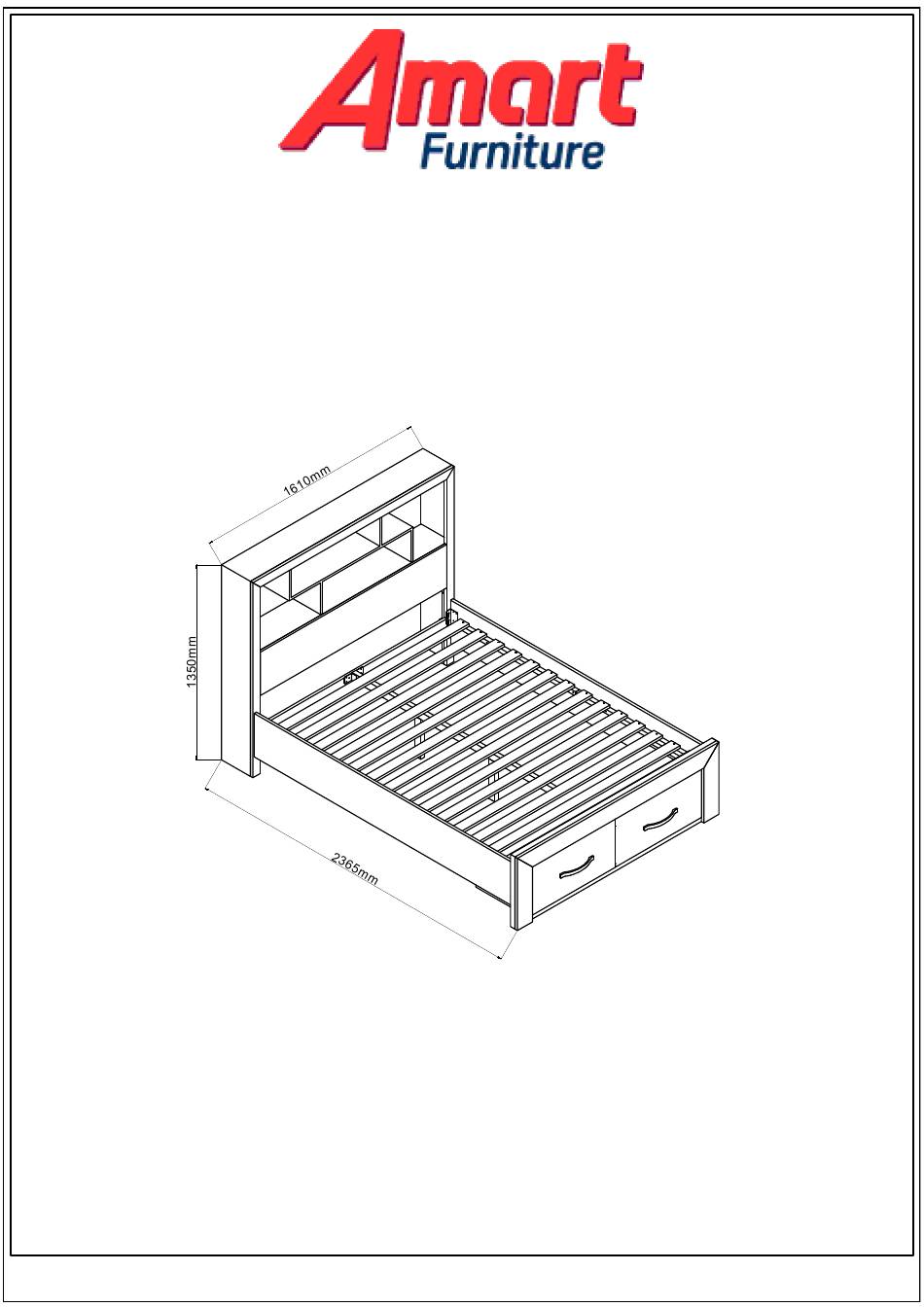

ASSEMBLY INSTRUCTION

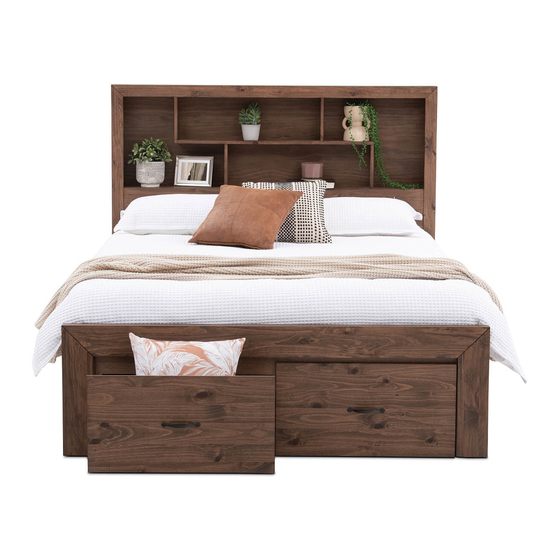

BROOKHAVEN - QUEEN BED
ITEM CODE - 72571
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
for any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
for any assistance to assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084
72571
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture BROOKHAVEN 72571
Summary of Contents for Amart Furniture BROOKHAVEN 72571
- Page 1 ASSEMBLY INSTRUCTION BROOKHAVEN - QUEEN BED ITEM CODE - 72571 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. for any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Freecall 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION BEFORE YOU START : Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST HEADBOARD BOLTS WASHER SPRING WASHER SCREW BOLTS FOOTBOARD SIDE RAILS 2PCS M8x30: 12pcs M8x2x19: 12pcs M8x1.2x13: 12pcs Ø4X30: 28pcs M6X50: 2pcs SLATS 14PCS DOWEL ALLEN KEY CENTRE RAIL SUPPORT LEGS 2PCS Ø8X30: 4pc M4X59: 1pc 72571...
- Page 4 Step 1: Attach the side rail (3) with the headboard (1) and footboard (2) using (B), spring washer (C), and using allen key (G) bolts (A), washer BOLTS WASHER SPRING WASHER ALLEN KEY M8x30: 12pcs M8x2x19: 12pcs M8x1.2x13: 12pcs M4X59: 1pc 72571...
- Page 5 Step 2: the Midle support rail (5) the Support foot(6) Fasten with using bolts (D), dowel (F), allen key (G) DOWEL ALLEN KEY BOLTS Ø8X30: 4pcs M4X59: 1pc M6X50: 2pcs 72571...
- Page 6 Step 3:Attach the slats (4) to the side rails (3) with screws (E) Not provide SCREW Ø4X30: 28pcs 72571...
- Page 7 ASSEMBLY COMPLETE CAUTION: ALWAYS LIFT YOUR BED WHEN MOVING/RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE CENTRE SUPPORT LEGS TO BEND/BREAK. 72571...
- Page 8 72571...
