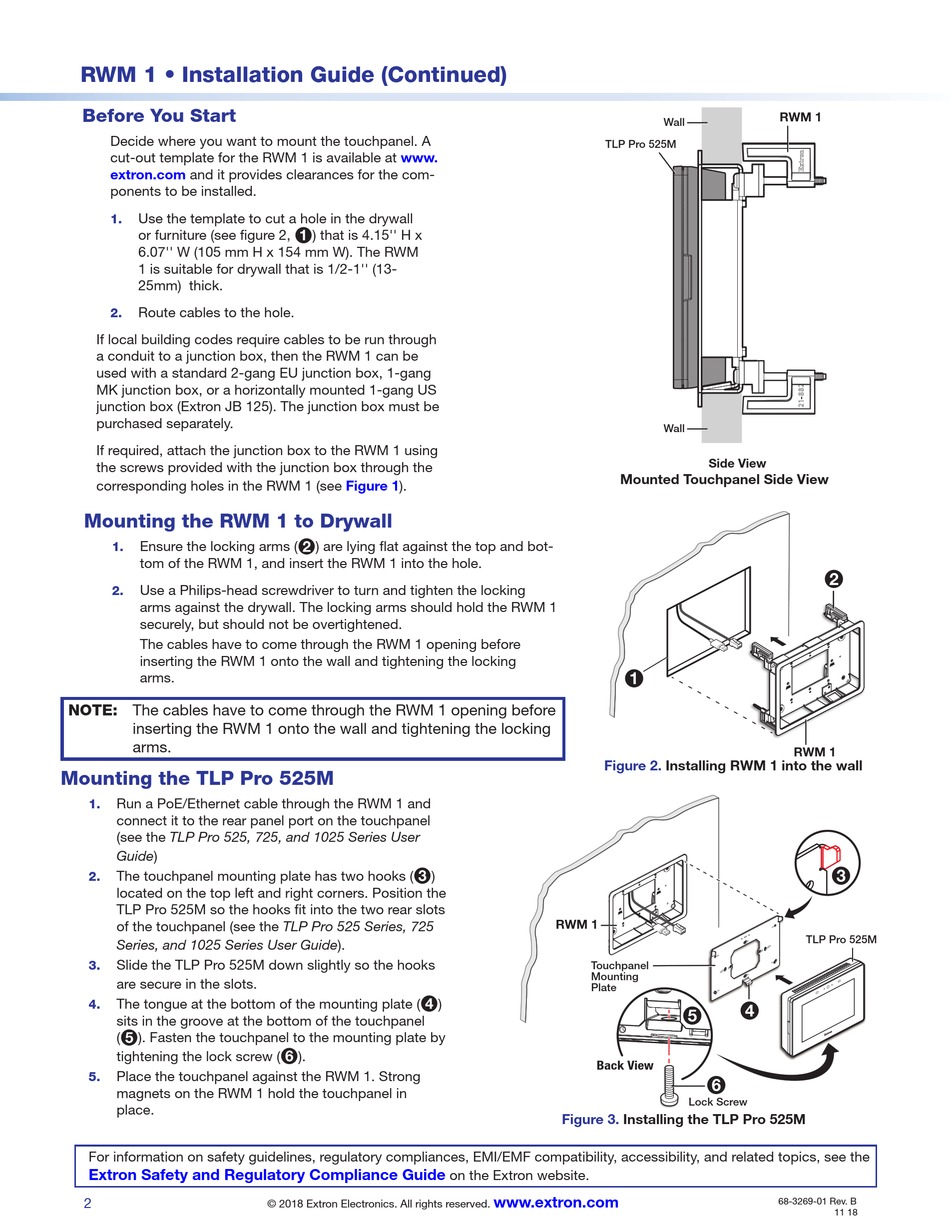

RWM 1 • Installation Guide (Continued)
Before You Start
Decide where you want to mount the touchpanel. A
cut-out template for the RWM 1 is available at
extron.com
and it provides clearances for the com-
ponents to be installed.
Use the template to cut a hole in the drywall
1.
or furniture (see figure 2,
6.07'' W (105 mm H x 154 mm W). The RWM
1 is suitable for drywall that is 1/2-1'' (13-
25mm) thick.
Route cables to the hole.
2.
If local building codes require cables to be run through
a conduit to a junction box, then the RWM 1 can be
used with a standard 2-gang EU junction box, 1-gang
MK junction box, or a horizontally mounted 1-gang US
junction box (Extron JB 125). The junction box must be
purchased separately.
If required, attach the junction box to the RWM 1 using
the screws provided with the junction box through the
corresponding holes in the RWM 1 (see
Mounting the RWM 1 to Drywall
Ensure the locking arms (
1.
tom of the RWM 1, and insert the RWM 1 into the hole.
Use a Philips-head screwdriver to turn and tighten the locking
2.
arms against the drywall. The locking arms should hold the RWM 1
securely, but should not be overtightened.
The cables have to come through the RWM 1 opening before
inserting the RWM 1 onto the wall and tightening the locking
arms.
NOTE: The cables have to come through the RWM 1 opening before
inserting the RWM 1 onto the wall and tightening the locking
arms.
Mounting the TLP Pro 525M
Run a PoE/Ethernet cable through the RWM 1 and
1.
connect it to the rear panel port on the touchpanel
(see the TLP Pro 525, 725, and 1025 Series User
Guide)
The touchpanel mounting plate has two hooks (
2.
located on the top left and right corners. Position the
TLP Pro 525M so the hooks fit into the two rear slots
of the touchpanel (see the TLP Pro 525 Series, 725
Series, and 1025 Series User Guide).
Slide the TLP Pro 525M down slightly so the hooks
3.
are secure in the slots.
The tongue at the bottom of the mounting plate (
4.
sits in the groove at the bottom of the touchpanel
( ). Fasten the touchpanel to the mounting plate by
5
tightening the lock screw (
Place the touchpanel against the RWM 1. Strong
5.
magnets on the RWM 1 hold the touchpanel in
place.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
2
www.
1 ) that is 4.15'' H x
Figure 1).
2 ) are lying flat against the top and bot-
3 )
4 )
6 ).
© 2018 Extron Electronics. All rights reserved.
TLP Pro 525M
Mounted Touchpanel Side View
1 1
Figure 2.
RWM 1
Touchpanel
Mounting
Plate
Back View
Figure 3. Installing the TLP Pro 525M
on the Extron website.
www.extron.com
RWM 1
Wall
Wall
Side View
2 2
RWM 1
Installing RWM 1 into the wall
3 3
TLP Pro 525M
4 4
5 5
e
6 6
Lock Screw
68-3269-01 Rev. B
