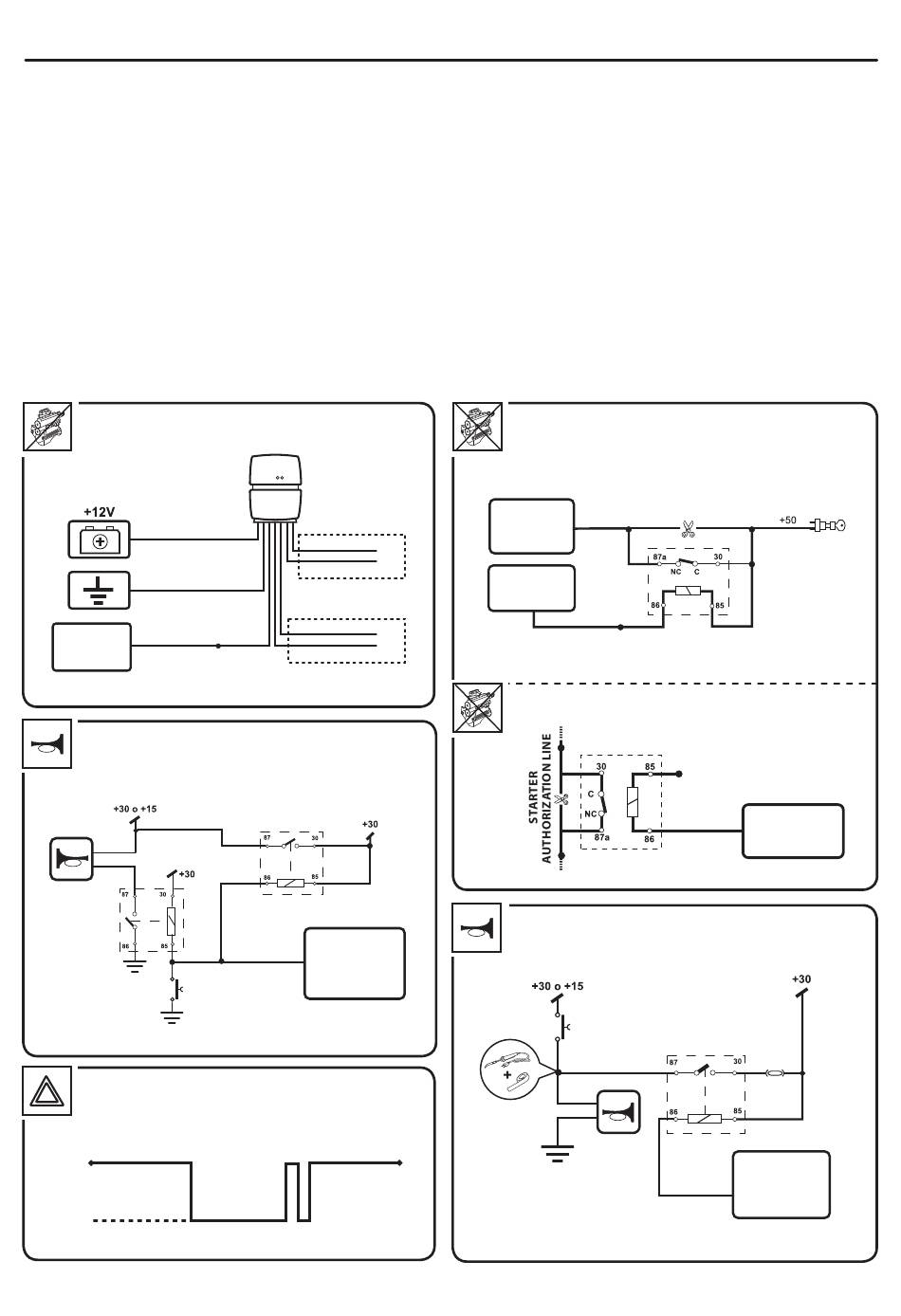

8. FUNCTIONS OF PROGRAMMABLE OUTPUTS OF BLE42 MODULE
The BLE42 Module has three programmable outputs able to provide different functions, below the list of the possible
options:
1. If it has been selected coded output when the BLE42 Module has a complete arming the external coded relays
actives opening their contacts, the contacts will be restored only after received the coded unlock command coming
from the BLE42 Module (Fig.2).
2. If it has been selected the output depending from the ID-TAG Card B9.5 presence, with BLE42 Module activated
this output will be activate every time the ID-TAG Card B9.5 will be out of its transmission range. With this output
it is possible pilot an external relay avoiding the car starting when the ignition key is ON or the +30 "sleep" passes to
active (Fig.3a/3b).
3. If it has been selected as a horn output when BLE42 Module is armed this output will be activate a 25 sec ON/OFF
cycle every time ignition key will turn ON ; the alarm cycle will start 10 sec after turning on the ignition key, turning
off the ignition key during the alarm cycle it doesn't stop and will be completed. If the ignition key stay ON more of 25
sec the alarm cycles will be repeated for max 10 times with a 5 sec pause between the cycles (Fig.4/5).
4. If it has been selected as a Hazard button output when BLE42 Module is armed this output will be activate a 25 sec of
turning indicators cycle when ignition key will turn ON; the turning indicators activation will start 10 sec after turning
on the ignition key and the activation signal it is shown in Fig.6.
CODED
RELAY
RED
BLACK
OUT (1/2/3)
BLE42
Fig.2
CLACSON
PILOTING
HORN
ORIGINAL
HORN
RELAY
ORIGINAL
CONTROL
Fig.4
HAZARD BUTTON
PILOTING
NO COMMAND
NEGATIVE PULSE
COMMAND
Fig.6
Coded output Set-Up
RELAY 1
BROWN
BROWN
RELAY 2
GREEN
BLUE
GREEN
Horn output Set-Up
INSTALL ADDITIONAL
RELAY IF HORN
IS POWERED BY
IGNITION-ON
OUT (1/2/3)
BLE42
HORN
Hazard button Set-Up
1 SEC.
25 SEC.
1 SEC.
STANDARD
STARTER
IMMOBILIZER
STARTER
MOTOR
C
NC
BLE42
C
OUT (1/2/3)
NC
Fig.3a
STARTER AUTHORIZATION
LOCKING
Fig.3b
CLACSON
PILOTING
Fig.5
9
Card depending Set-Up
CUT ORIGINAL WIRE
Card depending
POSITIVE WITH A SLEEP
+30/F
MODE FUNCTION
OUT (1/2/3)
Horn output Set-Up
ORIGINAL
INSTALL AN
HORN
ADDITIONAL
CONTROL
RELAY
HORN
BLE42
OUT (1/2/3)
IGNITION
KEY BLOCK
INSTALL AN
ADDITIONAL
25A RELAY
Set-Up
BLE42
