Meta System T.2 Installation Manual

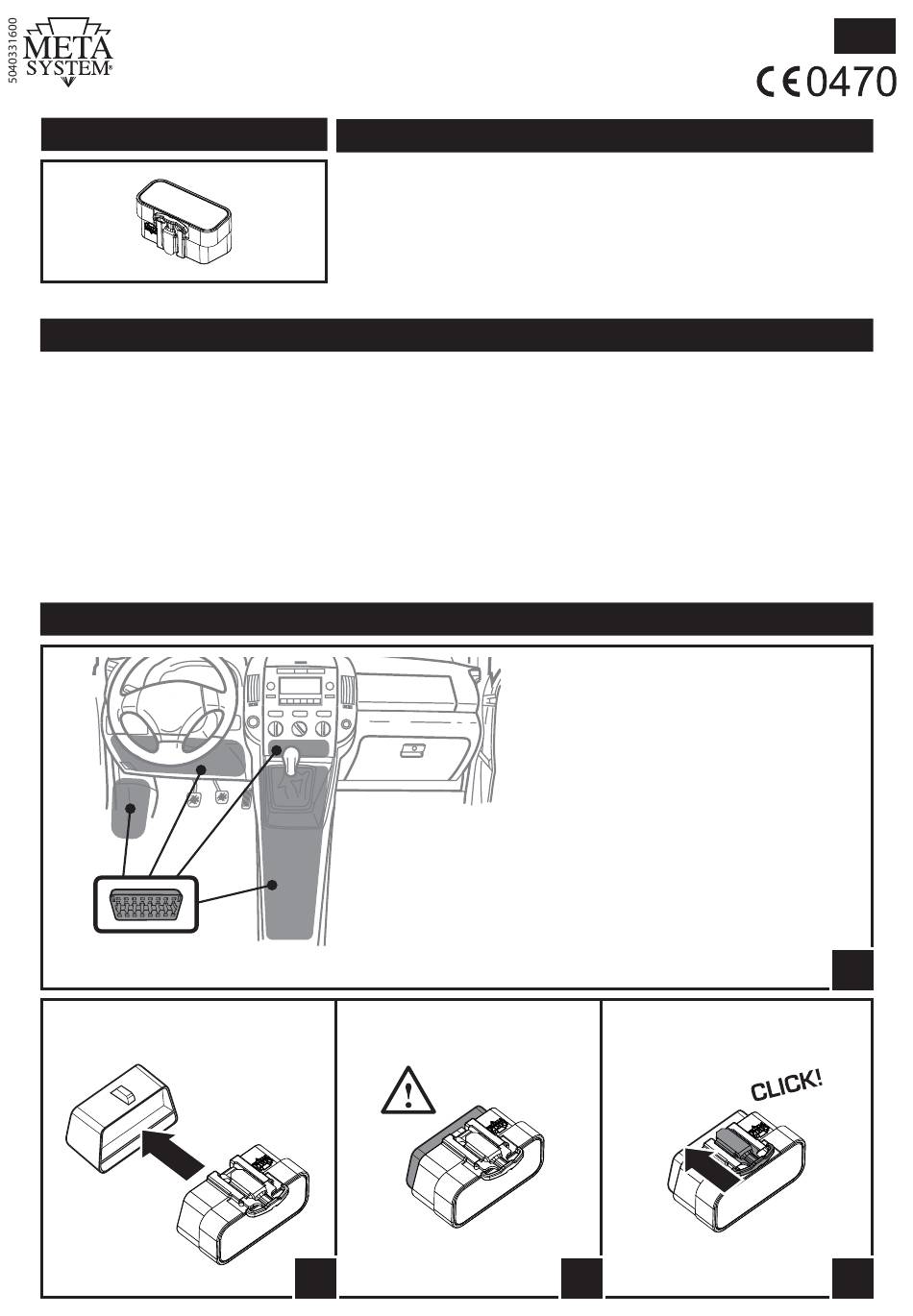

T.2 INSTALLATION MANUAL

KIT COMPOSITION

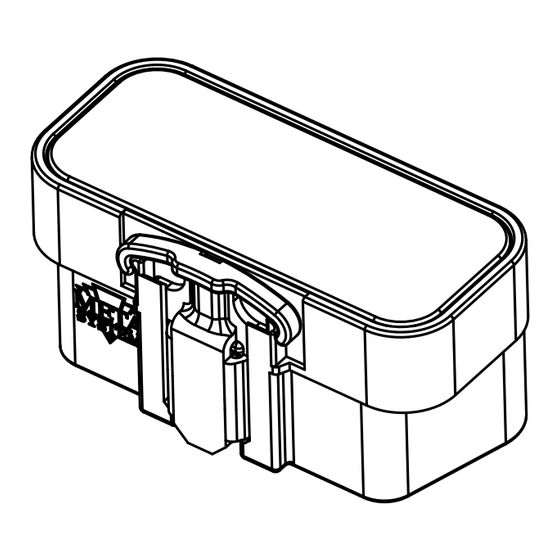

TELEMATIC CONTROL UNIT
• ALL INSTALLATION OPERATIONS MUST BE CARRIED OUT WITH THE MOTOR OFF.
• Before starting installation, detect the OBD port location referring to the use and maintenance manual of the
vehicle.
• If the OBD connector should be used for other purpose, such as maintenance, remove T2 and, after tempora-
ry operation, reconnect the T2 to OBD connector.
• Strictly comply with operations indicated in this manual.
• Installation staff are not authorised to remove warranty seals and/or access the inside of the product.
• The device must be connected to OBD port on board to the vehicle, provided with protectec power supply
by means a 5 A fuse maxiumum activation current.
• The manufacturer assumes no responsibility for damages caused to property and/or people, caused
by the incorrect installation of the product.

OBD PORT

Plug the connector into the vehi-
cle's OBD.

TECHNICAL SPECIFICATIONS

Power Supply: .................................................................................. 12Vdc (9V-14V)
Working temperature: ..........................................................from -30°C to +80°C
IP: .....................................................................................................................................40
Application classifi cation: ...........................................passenger compartment

WARNINGS

INSTALLATION

Check that the device is fully
connected and does not unlock.
2a
By using user manual of the vehicle fi nd
the OBD connector on your car.
Typically OBD plug can be located:
• near the breaks unit
• near the fuse box
• under the dashboard
• in the middle console
Lock the Secondary Lock to se-
cure the device.
2b
EN
1
2c
