Technical Specifications; Product Setup; General Diagram - Meta System BLE42 User And Installation Manual

Power supply: ....................................................................................................................12Vdc/24Vdc
Dimensions: ..............................................................................................................70 x 52 x 22 mm
Consumption: ..................................................................< 5 mAmp (with instrument panel OFF)
Radio frequency (Bluetooth Low Energy): .........................2,402 Ghz ÷ 2,480 GHz (<10mW)
Max immobilizer current at 12V (C/NC): ..............................................................................25 Amp
Max immobilizer current at 24V (C/NC): ................................................................................10 Amp
Operating temperature: ..................................................................................................-30°C /+85°C
Main Power supply (+30 / GND)
Ignition Key positive input signal (+15)
Input/output for Override LED/Push button
Programmable outputs OUT1/OUT2/OUT3:
ATTENTION: the ID-TAG CARD B9.5 supplied in the
package is not active. To activate the card press
it's button 5 times. To pair additional cards, use
the PRG007 programmer V3 and the programming
cable 2010337600.
Use only the PRG007 Programmer V3 to select the
various functions of the product.
Software updates for the PRG007 Programmer V3 and
information about the programmable functions are
available ONLINE in the TECH AREA/VEHICLES AREA of the
www.metasystem.it website.
BLE42 Immobilizer
SN: 123456789012345678
MAC: B12345678901
Pin Code: 23456
PUK Code: 123456
MAC
ADDRESS
INTERNAL RELAY FOR
STARTER IMMOBILIZER
KEY IGNITION
Fig. 1

1. TECHNICAL SPECIFICATIONS

2. INPUTS/OUTPUTS
3. PRODUCT SET-UP

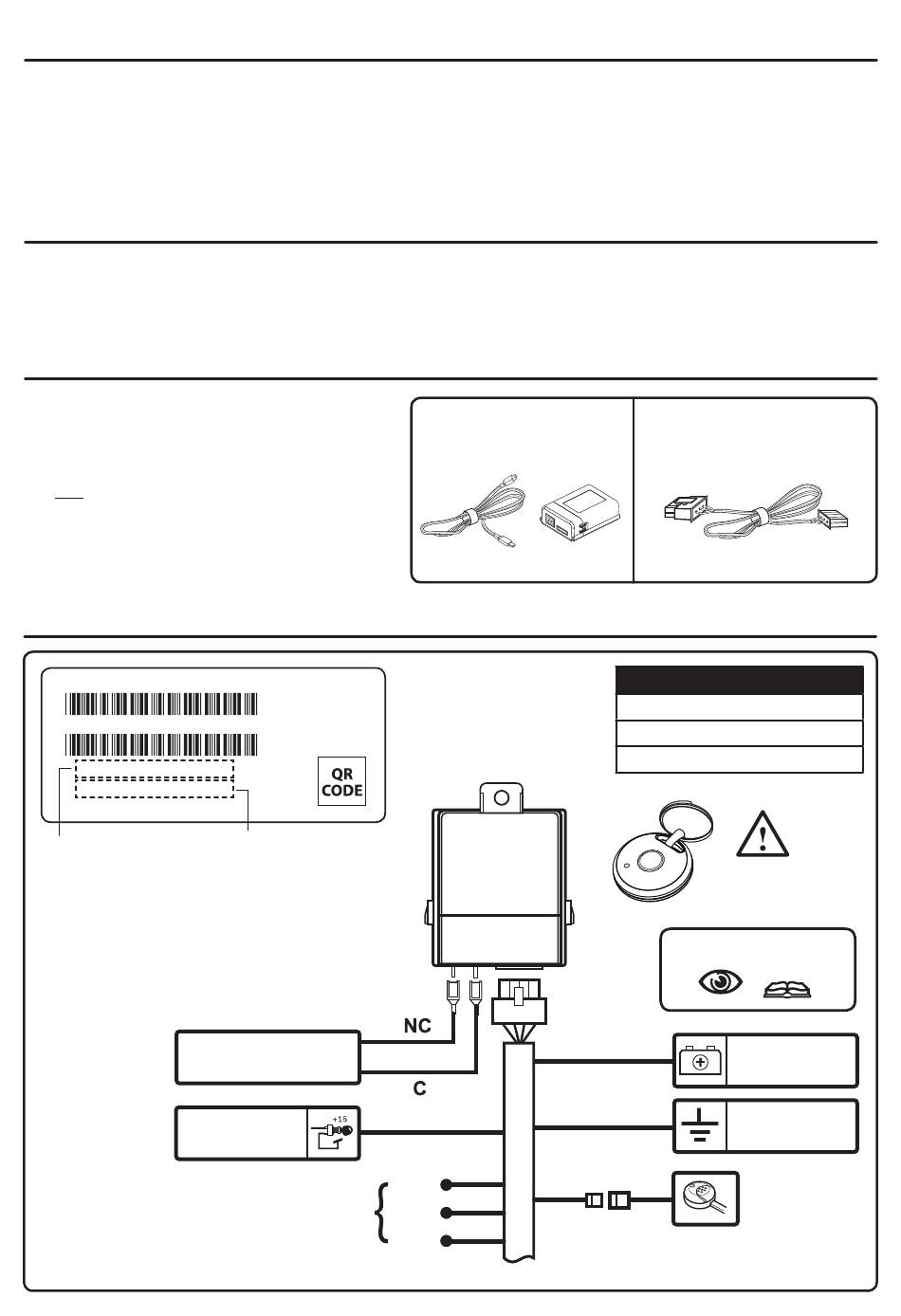

4. GENERAL DIAGRAM

Code: A6015941
FACTORY
PIN CODE
(+15)
PROGRAMMABLE
OUTPUTS
Active to GND with max load 500mA
PRG007 PROGRAMMER V3
MetaSystem code: ABS15090
BLE42
ORANGE
OUT1
OUT2
OUT3
7
PROGRAMMING WIRING FOR BLE42
MetaSystem code: 2010337600
FACTORY SET-UP
Out 1 = Coded output Set-Up
Out 2 = Card depending Set-up
Out 3 = Horn output
B9.5
CARD
ID-TAG CARD ACTIVATION
RED
BATTERY (+30)
BLACK
Paragraph 3
POSITIVE
GROUND
BUTTON/LED
