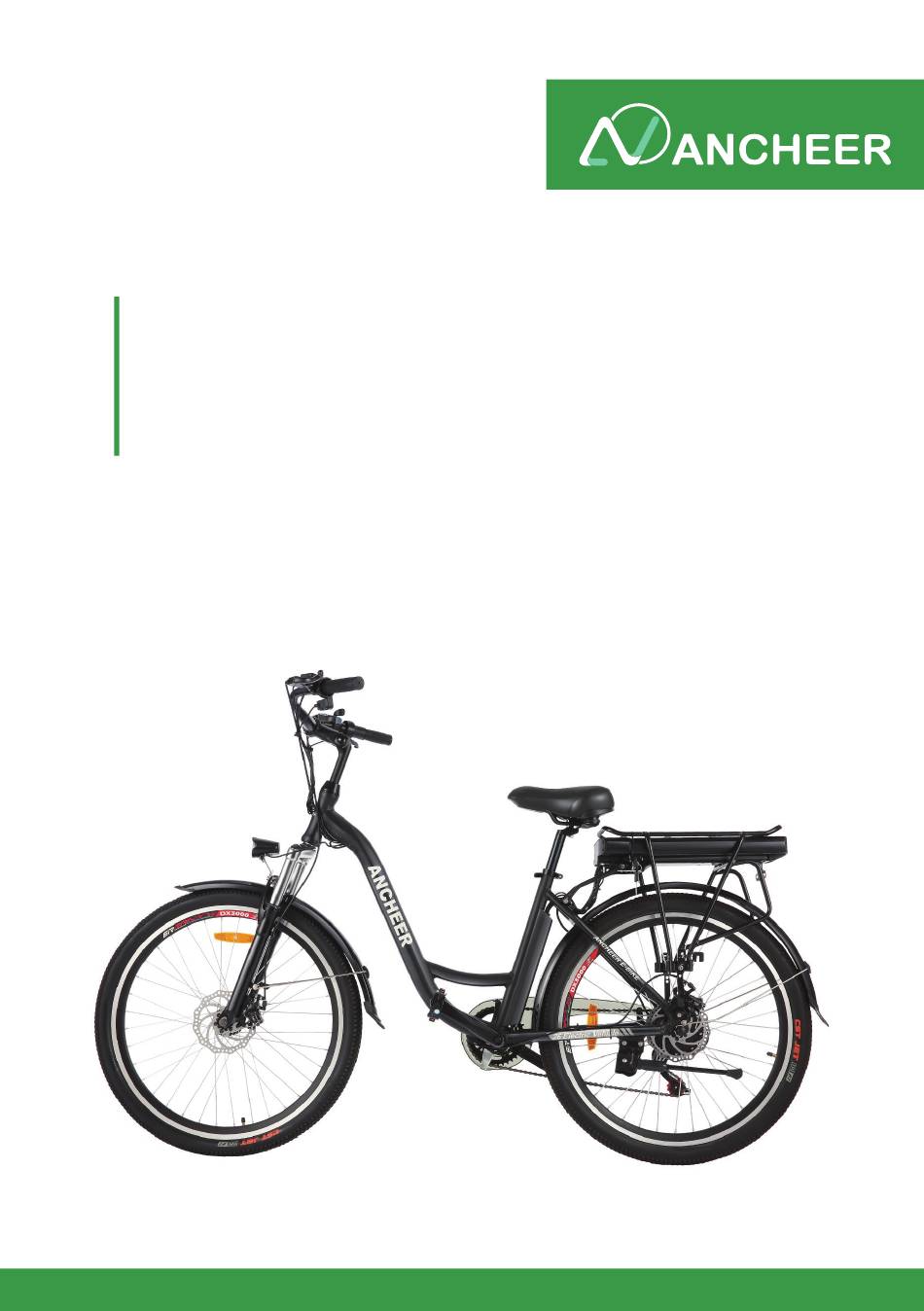

- Page 1 E-Bike PRODUCT INSTRUCTION MANUAL Caution : Please read the manual before your first ride!
-
Page 2: Table Of Contents
CONTENTS Safety Instruction General Information Bike Useage Installation And Adjustment Meter Operation Battery And Charging: Further Information Maintenance Warranty Attachment Warnings... -
Page 3: Safety Instruction
ANCHEER Safety Instruction Thank you for choosing our products. To ensure your safety and health, we encourage you to read this manual thoroughly before you assemble the bike and take the first ride.Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. - Page 4 ANCHEER Safety Instruction ● Before riding, please check whether the front and rear brakes work normally, check the fastening status of the handlebars and front and rear wheels, and check whether the reflector is damaged or contaminated; ● When using the motor, please be careful not to hit vigorously and keep the rotating shaft lubricated;...
-
Page 5: General Information
General Information 1. About ANCHEER Electric Bike ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only dedicating to innovation, cutting-edge technology and premium materials, but also providing cost effective e-bikes, to satisfy riders' various needs of transportation and even desire of exploring sports &... - Page 6 ANCHEER General Information 3. Bike Components 15 16 Rear Disc Brake Callipers Flywheel Tire Front Fork Rear Derailleur Head Light/Front Light Chain Stem Crank Seat Post Clamp/ Seat Clamp Chain Wheel Saddle Post/ Seat Tube Front Fender Saddle Front Disc Brake Calipers...
- Page 7 ANCHEER General Information Left Brake Lever Right Brake Lever Left Grip Throttle/ Twister Meter Right Grip Pedal Rear Shifter Kick Stand Handle Bar...
- Page 8 ANCHEER General Information 4. Tool list 5. Standover Height For the sake of safety and comfortable riding, when the rider stands on the ground there should be clearance of 46cm/18in from ground to the crotch of the rider. Also, at least 3-8cm/1-3in between the crotch and the top tube of the bike.
-
Page 9: Bike Useage
ANCHEER Bike Usage Before Riding ● Before riding the bike on the open road, try all the settings on the electric bike, and get used to various results in a safe and controllable environment. ● Please check the power circuit, lighting circuit, and test the brake system before cycling. - Page 10 ANCHEER Bike Usage Brake Adjustment Ensure that the brake cables are properly inserted into the brake levers before aligning a mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first. If the brake is not sensitive, loosen the...
-
Page 11: Installation And Adjustment
ANCHEER Installation And Adjustment Open the package of the bike, take out the electric bike and all the parts inside anduse the tool to cut off the packing rope. 1. Install the handlebar Remove the protective plug, install the handlebar into the stem, align it with the front fork, and then tighten the screw. - Page 12 ANCHEER Installation And Adjustment If you find the handlebar is not in the right direction, loosen the top bolt, adjust the angle of the handlebar to keep it in horizontal direction, then tighten the top bolt. 2. Install the rack Loosen the screws that secures the rack, put the rack in its position.
- Page 13 ANCHEER Installation And Adjustment 3. Install the controller and battery Loosen the screws used to fix the controller on the rear rack, then place the controller on the front of the rear rack, re-fix the screws and tighten them. Push the battery along the slide, and connect it with the controller.
- Page 14 ANCHEER Installation And Adjustment 4. Install the saddle tube Install the saddle tube into post receiver. Set right its position and adjust height to fit your ridding habit. Please be careful not to exceed the limit line. Then tighten the clamp that secures the saddle tube and fasten it.
- Page 15 ANCHEER Installation And Adjustment Take out the quick release from wheel and unscrew the bolt from the quick release. Remember to take out the protective gasket from the brake before installing the front wheel. Set front wheel into front fork. Make sure fork hanger hold onto wheel axle, and make sure the disc put into middle of brake.
- Page 16 ANCHEER Installation And Adjustment 6. Assemble the front fender and headlight Loosen the screw on the corresponding position of the front wheel, as shown in the figure below. Put the fender in this position. Connect the front light, and re-fix the loosened screw. Adjust the position of the light and tighten the screws.
- Page 17 ANCHEER Installation And Adjustment 7. Install the pedals and the kickstand There are a right pedal marked "R" and a left pedal marked "L". When installing, make sure to identify the R/L letter on the pedal bolt. Ensure that the thread of each pedal is fully inserted into the crank arm.
-
Page 18: Meter Operation
ANCHEER Meter Operation 1. Meter Instruction Assistance Level:Low Assistance Level:Mid Assistance Level:High MODE POWER Battery Indicator DOWN ON/OFF 2. Meter Operation Operating instructions MODE MODE MODE MODE high high high high POWER POWER POWER POWER Press and hold To increase the “high”... -
Page 19: Battery And Charging: Further Information
ANCHEER Battery And Charging: Further Information Battery: Further information ● Keep the battery out of reach of children. ● Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F. - Page 20 ANCHEER Battery and charging: Further Information ● When charging, it should be placed in a ventilated environment, and it is strictly forbidden to charge in a confined space, residential building or in a hot environment. ● The charger should not be carried with the ebike as much as possible. If it is really necessary to carry it, it should be placed in the toolbox after the shock absorption treatment is done.
-
Page 21: Maintenance
ANCHEER Maintenance ● The front and rear wheels of the vehicle should be located in the center of the front fork or frame. ● After riding, please store the bike in a place without sunlight and rain. ● Water showering is forbidden, and the surface of the car body can be wiped with a semi-dry cloth. -
Page 22: Warranty
Warranty One-Year Limited Hardware Warranty Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides warranty service for the electric bikes. If there is a hardware defect and a valid claim is received during the warranty period, we will resend new parts within the scope permitted by law. -
Page 23: Attachment
ANCHEER Attachment Technical parameters Performance index Project Parameter Vehicle Size 1800*640*1200MM Wheel Size 26*1.95 Inches Frame Material Aluminium Alloy Basic Parameters Maximum Load 120KG Vehicle Weight 28KG Maximum Speed 20mph(32km/h) Recommended Gradient < 10 degrees Rear Derailleur 6-Speed Performance Parameters... - Page 24 ANCHEER Attachment Remarks: ● After fully charged, the charger indicator light turns from red to green. ● The amount of battery remaining, load of the bike(weight of rider and cargo), tire pressure, road environment, chain and wheel axle lubrication, etc. will affect the maximum speed;...
-
Page 25: Warnings
ANCHEER Warnings Operation General ● Only use the e-bike and the drive assist system for safe, recreational riding. Use of the e-bike for a purpose it was not intended for is dangerous and could result in property damage, serious injury or death. Always follow the instructions for intended use and limitations. - Page 26 ANCHEER Warnings fatigue and indicate that a part is at the end of its useful life and needs to be replaced. Product life is often related to the kind of riding you do and to the treatment to which you submit the bicycle. The bicycle’s warranty is not meant to suggest that the bicycle cannot be broken or will last forever.
- Page 27 ANCHEER Warnings ● Charging the battery with an incompatible battery charger may result in electrical fires, explosion, severe burns or electrocution. Ensure the battery charger and the A/C outlet are the same voltage before charging the battery. Only charge the battery using the battery charger specified by the instructions.
- Page 28 ANCHEER Warnings Although many catalogs, advertisements and articles about bicycling depict riders engaged in extreme riding, this activity is extremely dangerous, increases your risk of injury or death, and increases the severity of any injury. Remember that the action depicted is being performed by professionals with many years of training and experience.
- Page 29 ANCHEER Warnings lever travel. Brake lever travel insufficient to apply full braking power can result in loss of control, which may result in serious injury or death. All quick-release levers should be inspected before every ride to be sure they are fully closed and secure.
- Page 30 E Bike Input: DC42V, 2A max Highest speed: 32km / h Power: 250W Model: AMA005685 Guangzhou Myatu Pedelec Technology Co., Ltd Made in China support@iancheer.com ANCHEER Customer Service Tel: 626-330-6385 Monday-Friday 9:30AM-6:00PM...
