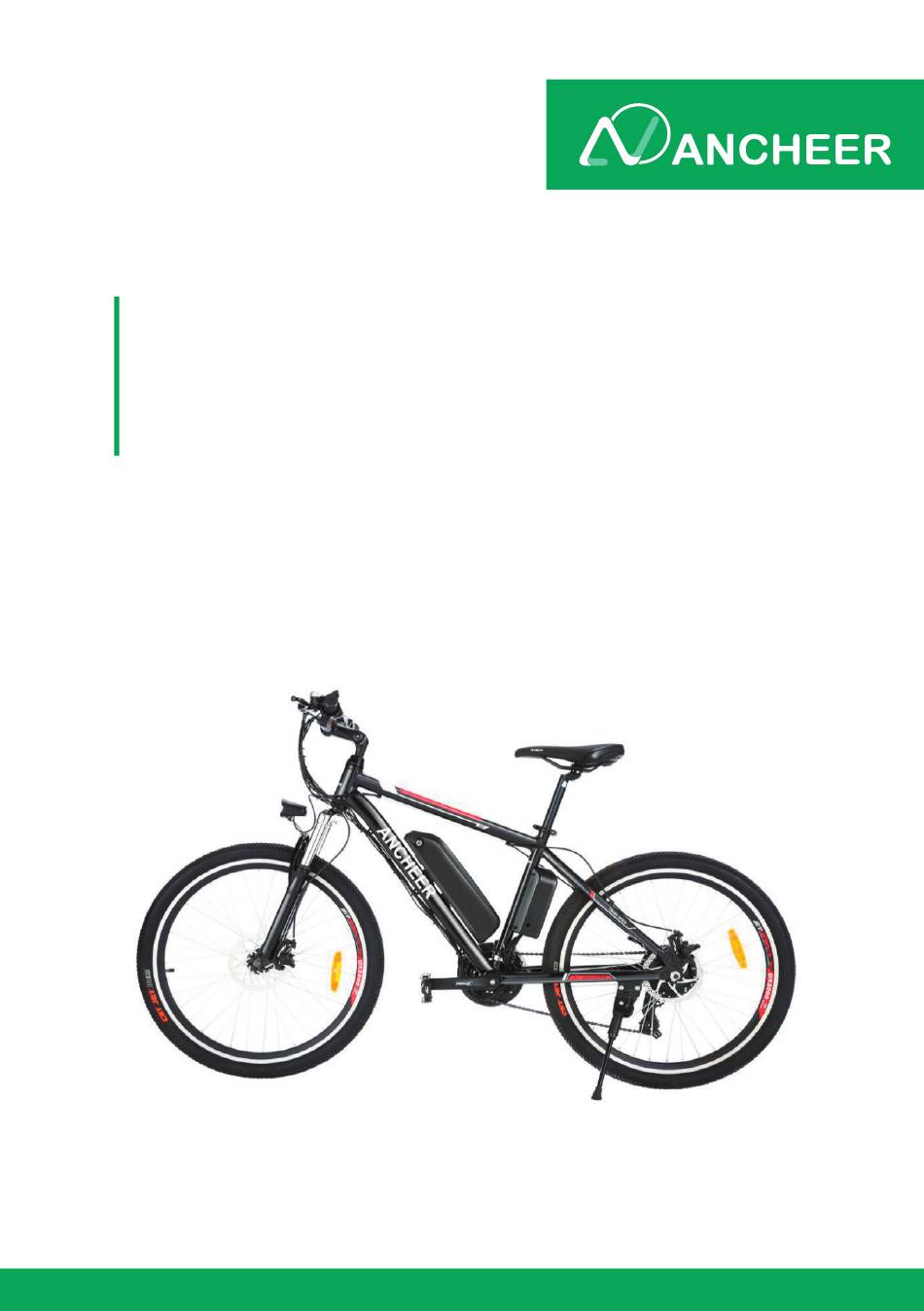

- Page 1 E-Bike PRODUCT INSTRUCTION MANUAL Caution : Please read the manual before your first ride!
-
Page 2: Table Of Contents
CONTENTS Safety Instruction General Information Bike Use Installation And Adjustment Meter Operation Battery And Charging: Further Information Maintenance Warranty Attachment Warnings... -
Page 3: Safety Instruction
ANCHEER Safety Instruction Thank you for choosing our products. To ensure your safety and health, we encourage you to read this manual thoroughly before you assemble the bike and take the first ride.Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly. - Page 4 ANCHEER Safety Instruction ● Before riding, please check whether the front and rear brakes work normally, check the fastening status of the handlebars and front and rear wheels, and check whether the reflector is damaged or contaminated; ● When using the motor, please be careful not to hit vigorously and keep the rotating shaft lubricated;...
-
Page 5: General Information
General Information 1. About ANCHEER Electric Bike ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only dedicating to innovation, cutting-edge technology and premium materials, but also providing cost effective e-bikes, to satisfy riders' various needs of transportation and even desire of exploring sports &... - Page 6 ANCHEER General Information 3. Bike Components Handlebar Battery Saddle Height Adjustment Lamp Motor Front Fork Tire Freewheel Pedal Chainwheel & Cranks Rear Derailleur 4. Tool List...
- Page 7 ANCHEER General Information CORRECT FRAME SIZE For safe and comfortabel riding there should be clearance of 78cm/31in from ground to the crotch of the intended rider. Also, at least 3-8cm/1-3in between the crotch and the top tube of the bicycle with both feet flat on the ground. Women can use a men's style bicycle to...
-
Page 8: Bike Use
ANCHEER Bike Usage Before Riding ● Before riding the bike on the open road, try all the settings on the electric bike, and get used to various results in a safe and controllable environment. ● Please check the power circuit, lighting circuit, and test the brake system before cycling. - Page 9 ANCHEER Bike Usage Brake Adjustment Ensure that the brake cables are properly inserted into the brake levers before aligning a mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first. ● Loosen or tighten the barrel adjuster at the end of the brake cable lever. This will make a small adjustment to the gap of the brake pads.
-
Page 10: Installation And Adjustment
ANCHEER Installation And Adjustment Open the package of the bike, take out the electric bike and all the parts inside and use the tool to cut off the packing rope. 1. Install Kickstand Unscrew the screw in the kickstand,and install the kickstand. - Page 11 ANCHEER Installation And Adjustment 3. Install the front wheel Using the tool to loosen the fixing rod of the front fork and remove it (this accessory is to prevent the front fork from being deformed during delivery). Take out the quick release from Wheel and unscrew the bolt from the quick release.
- Page 12 ANCHEER Installation And Adjustment Insert quick-release axle into spring and tighten screw(Quick release nut to be at the same end as the brake). 4. Assemble the headlight Screw front light right on front fork holder as shown. 5. Install the pedals Ensure that the thread of each pedal is fully inserted into the crank arm.
- Page 13 ANCHEER Installation And Adjustment 6. Assemble the saddle tue . First connect the seat and the seat tube. Insert seat post into post receiver, set right its position and adjust heightto fit your ridding habit.Tighten seat by clamp. 7. Adjust angle of brake lever, meter, gear shifter, throttle and louder controller on handlebar, then tightens them with tools.
-
Page 14: Meter Operation
ANCHEER Meter Operation 1. Meter Instruction Assistance Level:Low Assistance Level:Mid Assistance Level:High MODE POWER Battery Indicator DOWN ON/OFF 2. Meter Operation Operating instructions MODE MODE MODE MODE high high high high POWER POWER POWER POWER To switch on/ Press “+” to Press “+”... -
Page 15: Battery And Charging: Further Information
ANCHEER Battery And Charging: Further Information Battery: Further information ● Keep the battery out of reach of children. ● Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F. - Page 16 ANCHEER Battery and charging: Further Information Reminder Charge a new battery 6-8 hours before you use it in your product for the first time. If the battery is dropped or damaged due to a bicycle accident, there may be a danger of electrolyte leakage.
-
Page 17: Maintenance
ANCHEER Maintenance ● The front and rear wheels of the vehicle should be located in the center of the front fork or frame. ● After riding, please store the bike in a place without sunlight and rain. ● Water showering is forbidden, and the surface of the car body can be wiped with a semi-dry cloth. -
Page 18: Warranty
Warranty One-Year Limited Hardware Warranty Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides warranty service for the electric bikes. If there is a hardware defect and a valid claim is received during the warranty period, we will resend new parts within the scope permitted by law. -
Page 19: Attachment
ANCHEER Attachment Technical parameters Performance index Project Parameter Vehicle Size 1680*650*1080mm Wheel Size 26*1.95 Inches Frame Material Aluminium Alloy Basic Parameters Maximum Load 265 lbs (120KG) Vehicle Weight 55 lbs (25KG) Maximum Speed 20 mph (32km/h) Maximum Gradient 15 -20 Degrees... - Page 20 ANCHEER Attachment Remarks: ● The amount of battery remaining, load of the bike(weight of rider and cargo), tire pressure, road environment, chain and wheel axle lubrication, etc. will affect the maximum speed; ● Riding habits, temperature, load, tire pressure, road environment and other factors...
-
Page 21: Warnings
ANCHEER Warnings Operation General ● Only use the e-bike and the drive assist system for safe, recreational riding. Use of the e-bike for a purpose it was not intended for is dangerous and could result in property damage, serious injury or death. Always follow the instructions for intended use and limitations. - Page 22 ANCHEER Warnings fatigue and indicate that a part is at the end of its useful life and needs to be replaced. Product life is often related to the kind of riding you do and to the treatment to which you submit the bicycle. The bicycle’s warranty is not meant to suggest that the bicycle cannot be broken or will last forever.
- Page 23 ANCHEER Warnings ● Charging the battery with an incompatible battery charger may result in electrical fires, explosion, severe burns or electrocution. Ensure the battery charger and the A/C outlet are the same voltage before charging the battery. Only charge the battery using the battery charger specified by the instructions.
- Page 24 ANCHEER Warnings and fall. Although many catalogs, advertisements and articles about bicycling depict riders engaged in extreme riding, this activity is extremely dangerous, increases your risk of injury or death, and increases the severity of any injury. Remember that the action depicted is being performed by professionals with many years of training and experience.
- Page 25 ANCHEER Warnings it is to have correctly adjusted brakes, so that full braking power can be applied within available brake lever travel. Brake lever travel insufficient to apply full braking power can result in loss of control, which may result in serious injury or death.
- Page 26 Model: AM001907 Input: DC42V, 2A max Highest speed: 32km / h Power:500W Guangzhou Myatu Pedelec Technology Co., Ltd Made in China support@iancheer.com ANCHEER Customer Service Tel: 626-330-6385 Monday-Friday 9:30AM-6:00PM...
