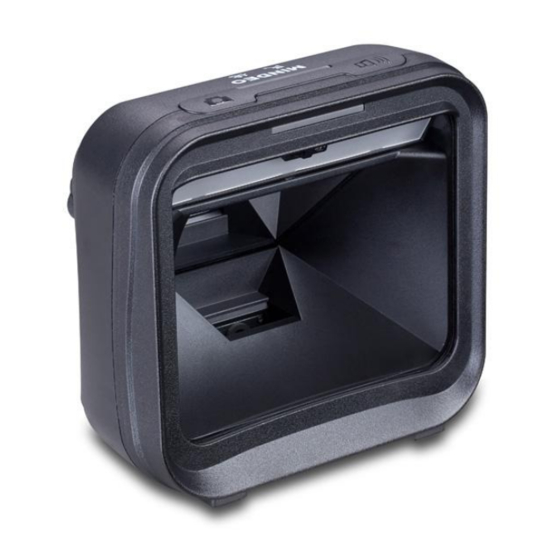

Mindeo MP8200 User Manual

Image platform
Hide thumbs Also See for MP8200:
Table of Contents

Advertisement

Quick Links

Download this manual

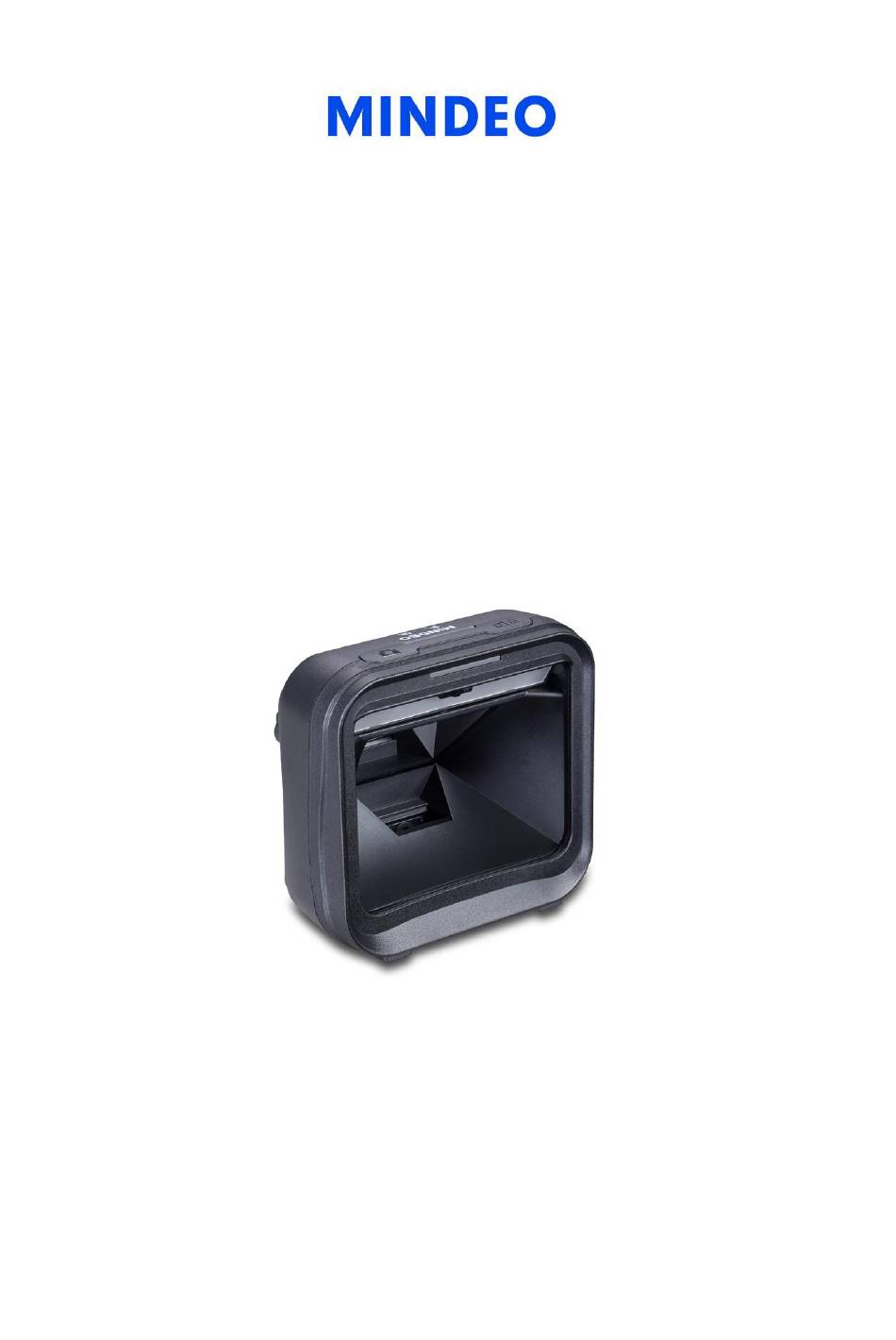

MP82xx Image Platform
User Manual
Version: MP82xx_UM_EN_V1.1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP8200 and is the answer not in the manual?

Questions and answers

Related Manuals for Mindeo MP8200

Summary of Contents for Mindeo MP8200

  • Page 1 MP82xx Image Platform User Manual Version: MP82xx_UM_EN_V1.1.5...
  • Page 3 NOTICE Warning: Ensure that the optional DC adapter works at +5V, especially for the RS-232 interface cable. 1. All software, including firmware, furnished to the user is on a licensed basis. 2. The right is reserved to make changes to any software or product to improve reliability, function, or design.

  • Page 5: Table Of Contents

    Contents NOTICE ................................i 1 Technical specifications .......................... 1 2 Cable connector pin-outs descriptions ....................3 3 Default setting for each barcode ......................4 4 Dimensions & Field of view ........................5 5 Parts of image platform ........................... 8 6 Introduction to installation ........................9 7 Parameter menus ..........................
  • Page 6 7-25 ISBT 128 ............................57 7-26 Code 93 ............................58 7-27 Code 11 ............................59 7-28 MSI/Plessey ..........................61 7-29 UK/Plessey ........................... 63 7-30 China Post ............................ 64 7-31 China Finance ..........................65 7-32 GS1 DataBar (GS1 DataBar Truncated) ..................67 7-33 GS1 DataBar Limited ........................

  • Page 7: Technical Specifications

    1 Technical specifications Table 1-1 Image platform technical specifications Input voltage 5 VDC ± 0.25V Power 5.00W (working); 0.40W (standby) Current 1000mA (working); 80mA (standby) 1280× 1024 pixels Image size Scanning angle ± 60° , ± 40° , 360° (Skew, Pitch, Roll) UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128,...
  • Page 8 EMC: EN55022, EN55024 Electrical safety: EN60950-1 Photobiological safety: EN62471:2008 Safety Illumination: 0~100,000LUX Protection class: IP52 Drop resistance: 1.5m (5.0ft) drops to concrete...

  • Page 9: Cable Connector Pin-Outs Descriptions

    2 Cable connector pin-outs descriptions Figure 2-1 Cable connector interface pin-outs The pin-outs descriptions in Table 2-1 apply to the cable connector on the image platform and are for reference only. Table 2-1 Cable connector pin-outs descriptions RS232 Keyboard (PS2) Power (+5V) Power (+5V) Power (+5V)

  • Page 10: Default Setting For Each Barcode

    3 Default setting for each barcode Table 3-1 Default setting for each barcode Min. code Read Check digit Check digit Proprietary Code type length enable verification transmission code ID code ID √ √ √ UPC-A (12) √ √ √ UPC-E √...

  • Page 11: Dimensions & Field Of View

    4 Dimensions & Field of view Figure 4-1 Dimensions (without stand) Figure 4-2 Dimensions (with stand)
  • Page 12 Figure 4-3 Dimensions of hanging holes Figure 4-4 Field of view Figure 4-5 Field of view – Front view...
  • Page 13 Figure 4-6 Field of view – Horizontal Figure 4-7 Field of view – Vertical...

  • Page 14: Parts Of Image Platform

    5 Parts of image platform Figure 5-1 Parts of image platform ① Scan window ② Camera push button ③ LED ④ Beeper push button ⑤ Beeper ⑥ Hanging holes ⑦ USB interface ⑧ Auxiliary interface for handheld scanner, etc ⑨ Host interface...

  • Page 15: Introduction To Installation

    6 Introduction to installation Note: If any of the below operation is incorrect, turn off the power immediately and check the image platform for any improper connections. Go through all steps again. Installation - keyboard wedge 1. Switch off the host and unplug the keyboard connector. 2.
  • Page 16 Installation - RS-232 1. Switch off the host. 2. Attach the phone jack connector of the RS-232 cable to Host interface on the image platform. 3. Connect another end of the RS-232 cable to the serial port (PIN 9) on the device. 4.

  • Page 17: Parameter Menus

    7 Parameter menus 7-1 Single-parameter setting by scanning 1D barcodes Important notes: 1. During the process of programming, LED is lighting to indicate the programming correctness. LED will go off if any incorrect programming operation performed. 2. After each successful programming, LED will go off and the image platform will beep twice. 3.

  • Page 18: Single Or Multiple-Parameter Setting By Scanning A Qr Code Barcode

    7-2 Single or Multiple-parameter setting by scanning a QR code barcode User can customize a QR code barcode to set single or multiple parameters. The image platform can set parameters by scanning this single QR code barcode. 1. The data format of the QR code barcode is as following. Note that: <Option barcode index>...

  • Page 19: Operate The Image Platform By Receiving Command Via Uart

    7-3 Operate the image platform by receiving command via UART Note: 1- The information in this chapter is provided for the image platform with RS232 cable or USB cable. 2- If the image platform is with USB cable, the setting of USB device type must be set as “USB virtual COM”.

  • Page 20: Interface Selection

    7-4 Interface selection This image platform supports interfaces such as keyboard wedge, RS-232 serial wedge, and USB interface. In most of the cases, simply selecting an appropriate cable provided by the manufacturer will work for a specific interface. Interface selection: Auto detection- By setting this function, the image platform will automatically detect the keyboard wedge, RS-232 or USB interface for user.

  • Page 21: Keyboard Wedge Interface

    7-5 Keyboard wedge interface Keyboard type: As a keyboard interface, the image platform supports most of the popular PCs and IBM terminals. Keyboard layout: The image platform supports different national keyboard layouts. Commonly an appropriate encoding system must be selected. Please refer to Character encoding system of “7-8 Scan mode &...
  • Page 22 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry IBM AT, PS/2 Keyboard type Apple Mac compatibles Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system “7-8 Scan mode & some global settings”...
  • Page 23 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 200us 10ms Delay-after-compound-key 20ms 40ms 80ms Alphabetic key Numeric key Numeric keypad Alt+ keypad Disable Power-on simulation Enable 10ms Inter-character delay 20ms 40ms 80ms Inter-byte delay Caps Lock reversion Disable...
  • Page 24 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Enable Disable Caps Lock override Enable...

  • Page 25: Interface

    7-6 RS-232 interface Flow control: None-The communication only uses TxD and RxD signals without any hardware or software handshaking protocol. RTS/CTS- If the image platform wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication.
  • Page 26 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-99 Response delay 00-99 (100ms) 1200 2400 4800 Baud rate 9600 19200 38400 57600 115200 None Parity bit Even 8 bits Data bit 7 bits One bit Stop bit Two bits...

  • Page 27: Usb Interface

    7-7 USB interface USB device type: HID keyboard– By setting, the image platform is used as a USB HID keyboard emulation device. The “7-5 Keyboard wedge” keyboard layout setting follows the setting of keyboard layout in the chapter of USB virtual COM– By setting, the image platform emulate a regular RS232-based COM port. If a Microsoft Windows PC is connected to the image platform, a driver is required to install on the connected PC.
  • Page 28 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry HID keyboard HID keyboard for Apple Mac USB device type USB virtual COM Simple COM Port Emulation Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system...
  • Page 29 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 20ms 40ms 60ms Alphabetic key Numeric key Numeric keypad Alt+ keypad...

  • Page 30: Scan Mode & Some Global Settings

    7-8 Scan mode & some global settings Scan mode: Good-read off-The trigger button must be pressed once to activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
  • Page 31 characters only, i.e. in ASCII from 20H to 7EH. Alphanumeric character only- If this option is selected, the image platform will output the alphanumeric characters only, i.e. “A”-“Z”, “a”-“z”, “0”-“9”. Decoder optimization: If it is enabled, the image platform will optimize the decoder with error correction. This function is not effective for all types of barcode.
  • Page 32 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Good-read off Scan mode Continue Timeout off 30 seconds 1 minute 1 minute and 30 seconds 2 minutes 5 minutes 7 minutes Standby duration 10 minutes 15 minutes 20 minutes 30 minutes 45 minutes 60 minutes 00-FF...
  • Page 33 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Global max. code length for 1D 04-99 symbol 04-99 Global min. code length for 1D 01-99 symbol 01-99 00-66 Global G1-G6 string selection 00-66 Disable Element amendment Enable None Character output restraint Printable character only Alphanumeric character only Disable...

  • Page 34: Led And Beeper Indication

    7-9 LED and Beeper Indication Power on alert: After power-on the image platform will generate an alert signal to indicate a successful self-test. LED indication: After each successful reading, the LED above the image platform will light up to indicate a good barcode reading.
  • Page 35 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Power on alert Enable Disable LED indication Enable Disable Beeper indication Enable 01-09 Beep tone duration 01-09 (10ms ) Volume of beeper Middle High Type 1 Type 2 Beeper Tone Type 3 Type 4 Type 5...

  • Page 36: Led Illumination Level

    7-10 LED illumination level LED illumination level: Illumination does aid image platform to get better quality images. effectiveness of the illumination decreases as the distance to the target increases. Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry LED illumination level Middle High...

  • Page 37: Single Type Of Barcode, Multi-Symbols Read

    7-11 Single type of barcode, Multi-symbols read 1D symbols read: A global setting of 1D symbols readability. 2D symbols read: A global setting of 2D symbols readability. Multi-symbols read: By setting Enable, the image platform allows to read multiple symbols in one image. By setting Disable, the image platform will only read the symbol closest to the center area in the image.

  • Page 38: Dpm, Structured Append, And Mobile Screen Read

    7-12 DPM, Structured append, and Mobile screen read DPM format read: By setting Enable, the image platform can read 2D symbols in DPM (Direct Park Marking) format. Some barcodes in DPM format are shown below. Structured append symbols read: By setting Enable, the image platform will output data only when all Structured Append symbols have been decoded.
  • Page 39 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable DPM format read Enable Structured append symbols Disable read Enable Disable Mobile screen read Enable...

  • Page 40: Upc-A

    7-13 UPC-A Read: Format System character Data digits (10 digits) Check digit (1 digit) Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
  • Page 41 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 42: Upc-E

    7-14 UPC-E Read: Format System character “0” Data digits (6 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-12 UPC-A”...
  • Page 43 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 44: Upc-E1

    7-15 UPC-E1 Read: Format System character “1” Data digits (6 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-12 UPC-A”...
  • Page 45 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Expand to EAN-13...

  • Page 46: Isbn/Issn)

    7-16 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-12 UPC-A”...
  • Page 47 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-FF 00-FF EAN-13 code ID setting (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits Disable...
  • Page 48 7-17 EAN-8 Read: Format Data digits (7 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. “7-12 UPC-A”...
  • Page 49 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <C>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncation/Expansion...

  • Page 50: Code 39 (Code 32, Trioptic Code 39)

    7-18 Code 39 (Code 32, Trioptic Code 39) Read: Format Start character(*) End character(*) Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits.
  • Page 51 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <M>* 00-66 Insert group selection 00-66 Standard...
  • Page 52 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Enable Disable Code 32 Prefix “A” transmission Enable Disable Trioptic Code 39 read Enable Trioptic Code 39 Start/End Disable transmission Enable...

  • Page 53: Interleaved 2 Of 5

    7-19 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
  • Page 54 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification OPCC Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <I>* 00-66 Insert group selection 00-66...

  • Page 55: Industrial 2 Of 5 (Discrete 2 Of 5)

    7-20 Industrial 2 of 5 (Discrete 2 of 5) Read: Format Data digits (variable) “7-17 Code 39(Code 32, Trioptic Code 39)” Max./Min. code length: Refer to Max./Min. code length of “7-12 UPC-A” Code ID setting: Refer to Code ID setting of “7-12 UPC-A”...

  • Page 56: Matrix 2 Of 5

    7-21 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-17 Code 39(Code 32, Trioptic Code 39)”...

  • Page 57: Codabar

    7-22 Codabar Read: Format Start Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-17 Code 39(Code 32, Trioptic Code 39)”...
  • Page 58 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-66 Insert group selection 00-66 ABCD/ABCD abcd/abcd Start/End type ABCD/TN⋆E abcd/tn⋆e Disable Start/End transmission Enable Disable Start/End character equality Enable...

  • Page 59: Code 128

    7-23 Code 128 Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-17 Code 39(Code 32, Trioptic Code 39)”...
  • Page 60 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-66 Insert group selection 00-66 Disable...

  • Page 61: Ucc/Ean 128 (Gs1-128)

    7-24 UCC/EAN 128 (GS1-128) UCC/EAN 128 and GS1-128 are the same kind of barcode symbols with same standard. Read: Format Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
  • Page 62 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Read Disable Enable Check digit verification Disable Enable Check digit transmission Disable Reserved Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <K>* Insert group selection 00-66 00-66 Disable...
  • Page 63 7-25 ISBT 128 Read: Format “=” or “&” Data digits (variable) Check digit (1 digit, optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-17 Code 39(Code 32, Trioptic Code 39)”...
  • Page 64 7-26 Code 93 Read: Format Data digits (variable) Check digits (2 digits, optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. “7-17 Code 39(Code 32, Trioptic Code 39)”...

  • Page 65: Code 11

    7-27 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
  • Page 66 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable One digit Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <V>* 00-66...

  • Page 67: Code 93

    7-28 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 68 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable 1 digit (mod 10) Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <O>*...

  • Page 69: Plessey

    7-29 UK/Plessey Read: Format Data digits (variable) Check digits (2 digits, optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.

  • Page 70: China Post

    7-30 China Post Read: Format Data digits (11 digits) “7-17 Code 39(Code 32, Trioptic Code 39)” Max. /Min. code length: Refer to Max./Min. code length of The code length of China Post is 11. “7-12 UPC-A” Code ID setting: Refer to Code ID setting of “7-12 UPC-A”...

  • Page 71: China Finance

    7-31 China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
  • Page 72 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Only 6 converted to B Only 7 converted to C Only 8 converted to D Only 9 converted to E Disable Assigned to 0 Assigned to 5(A) Assigned to 6(B) Assigned to 7(C) Leading character assignment Assigned to 8(D) Assigned to 9(E)

  • Page 73: Gs1 Databar (Gs1 Databar Truncated)

    7-32 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format Data digits (16 digits)

  • Page 74: Gs1 Databar Limited

    7-33 GS1 DataBar Limited Read: Format Data digits (16 digits) “7-12 UPC-A” Code ID setting: Refer to Code ID setting of “7-12 UPC-A” Insertion group selection: Refer to Insertion group selection of “7-30 GS1 DataBar (GS1 DataBar Truncated)” Conversion: Refer to Conversion of Multiple-scan setting Single-scan setting Option barcode...

  • Page 75: Gs1 Databar Expanded

    7-34 GS1 DataBar Expanded Read: Format Data characters (variable) “7-12 UPC-A” Code ID setting: Refer to Code ID setting of “7-12 UPC-A” Insertion group selection: Refer to Insertion group selection of Conversion: “7-42 String transmission” UCC/EAN 128- Refer to Code ID transmission of , ]Cm will be identified as AIM ID.

  • Page 76: Gs1 Composite

    7-35 GS1 Composite GS1 Composite symbol group consists of two components: a linear component, which encodes the item’s primary data; and an adjacent 2D composite component, which contains supplementary data. The linear component will be a traditional symbol of types: GS-128, EAN-8, EAN-13, UPC-A, UPC-E or DataBar.
  • Page 77 must be successfully decoded to output both 1D and 2D data. GS1-128 Composite, DataBar Composite- Two versions of GS1 Composite symbol are enabled. GS1-128 Composite, DataBar Composite, UPC/EAN Composite- Three versions of GS1 Composite symbol are enabled. Multiple-scan setting Single-scan setting Option barcode Option Alpha.

  • Page 78: Pdf417

    7-36 PDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 79: Micropdf417

    7-37 MicroPDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 80: Qr Code

    7-38 QR Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 81: Data Matrix

    7-39 Data Matrix Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 82: Han Xin Code

    7-40 Han Xin Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 83: Aztec Code

    7-41 Aztec Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 84: G1-G6 & C1-C3 & Fn1 Substitution String Setting

    7-42 G1-G6 & C1-C3 & FN1 substitution string setting Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
  • Page 85 Testing barcode: FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
  • Page 86 %8014H4142% Testing barcode: Multiple characters C3 replacement: By setting, a number of defined characters in the data string can be replaced by other defined characters. The maximum number of characters to replace is 11. Example: Replace all the “A” character in a data string with “B” character; replace “C” with “D”; replace “E”...
  • Page 87 Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry 0-22 characters 00-FF Prefix string setting None 0-22 characters 00-FF Suffix string setting <ENTER> 0D0A* Preamble string setting 0-22 characters 00-FF None 0-22 characters 00-FF Postamble string setting None 0-22 characters 00-FF Insert G1 string setting None...
  • Page 88 Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry Once Repeat of a G5 character setting Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G6 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G6 character setting Defined times 01-22 Un-defined times (All)

  • Page 89: G1-G4 String Position & Code Id Position

    7-43 G1-G4 string position & Code ID position Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The image platform offers 4 positions to insert strings among the symbol.

  • Page 90: String Transmission

    7-44 String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
  • Page 91 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Prefix transmission Enable Suffix transmission Disable Enable Code name transmission Disable Enable Preamble transmission Disable Enable Postamble transmission Disable Enable Disable Code ID transmission Proprietary ID AIM ID Disable Code length transmission Enable Disable Upper (data only)
  • Page 92 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Keyboard wedge/USB RS-232 Keyboard wedge / USB / RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 Transmit the last N data characters only 01-99...

  • Page 93: Test Barcode Symbols

    8 Test barcode symbols UPC-A UPC-E UPC-E1 EAN-8 EAN-13 Code 39 Code 32 A908765439 Code 128 Interleaved 2 of 5 Industrial 2 of 5 (Default setting: Read disable) Matrix 2 of 5 Code 93...
  • Page 94 UCC/EAN 128 Code 11 (Default setting: Read disable) MSI/Plessey (Default setting: Read disable) UK/Plessey ISBN/ISSN China Post GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded...
  • Page 95 PDF417 12=890ab-+%xyz MicroPDF417 23+-mdo QR code 1234567890ABCD-+()&*%^@#$!XYZ Data Matrix 123890abc-+=&*%^!mdo...
  • Page 96 Maxicode 12345678901234567890 Aztec Code 12345678901234567890 Han Xin Code 12345678901234567890...

  • Page 97: Maintenance

    9 Maintenance Cleaning the scan window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.

  • Page 98: Assembling The Stand

    10 Assembling the stand Figure 10-1 Figure 10-2 Figure 10-3 Figure 10-4 As shown in Figure 10-1, plug in two connection-arms to the two associated notches on the bottom of the image platform. As shown in Figure 10-2, well connect the image platform with the stand by tightening the single screw.

  • Page 99: Ascii Table

    11 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 100: Barcode Representing Non-Printable Character

    12 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A”...

  • Page 101: Return Default Parameters & Firmware Version

    13 Return default parameters & firmware version WARNING: Default value initialization If you wish to return the image platform to all the factory default settings, scan the barcode above. Firmware version list If you wish to display the firmware version, scan the barcode above.

  • Page 102: Configuration Alphanumeric Entry Barcode

    14 Configuration alphanumeric entry barcode...

This manual is also suitable for:

Mp82 series
