Mindeo MP82 Series Quick Manual

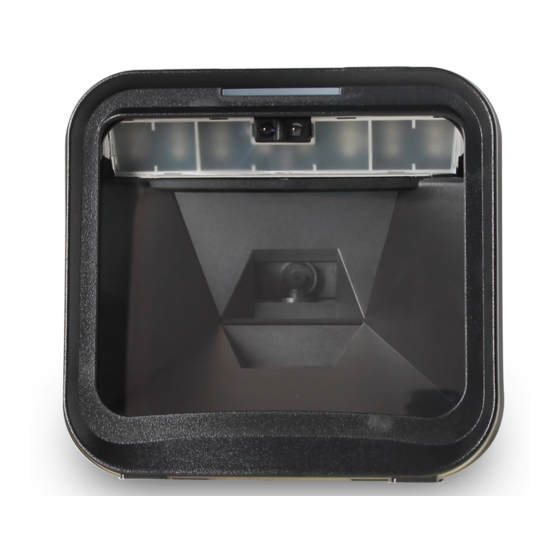

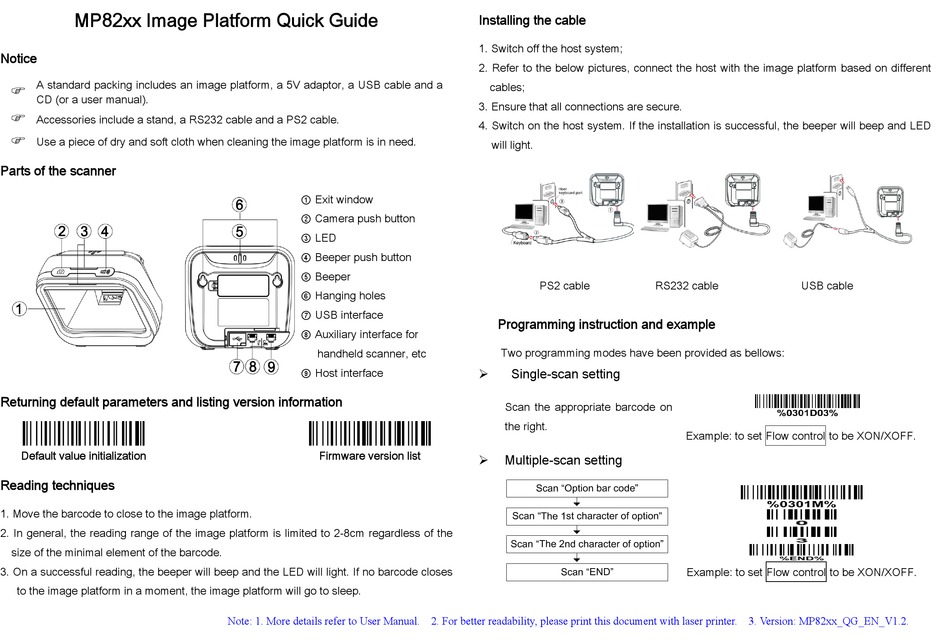

MP82xx Image Platform Quick Guide

Notice

A standard packing includes an image platform, a 5V adaptor, a USB cable and a

CD (or a user manual).

Accessories include a stand, a RS232 cable and a PS2 cable.

Use a piece of dry and soft cloth when cleaning the image platform is in need.

Parts of the scanner

Returning default parameters and listing version information

Default value initialization

Reading techniques

1. Move the barcode to close to the image platform.
2. In general, the reading range of the image platform is limited to 2-8cm regardless of the
size of the minimal element of the barcode.
3. On a successful reading, the beeper will beep and the LED will light. If no barcode closes
to the image platform in a moment, the image platform will go to sleep.
① Exit window
② Camera push button
③ LED
④ Beeper push button
⑤ Beeper
⑥ Hanging holes
⑦ USB interface
⑧ Auxiliary interface for
handheld scanner, etc
⑨ Host interface
Firmware version list
Note: 1. More details refer to User Manual. 2. For better readability, please print this document with laser printer. 3. Version: MP82xx_QG_EN_V1.2.

Installing the cable

1. Switch off the host system;
2. Refer to the below pictures, connect the host with the image platform based on different
cables;
3. Ensure that all connections are secure.
4. Switch on the host system. If the installation is successful, the beeper will beep and LED
will light.
PS2 cable

Programming instruction and example

Two programming modes have been provided as bellows:
Single-scan setting

Scan the appropriate barcode on
the right.
Multiple-scan setting

RS232 cable USB cable
Example: to set Flow control to be XON/XOFF.
Example: to set Flow control to be XON/XOFF.
