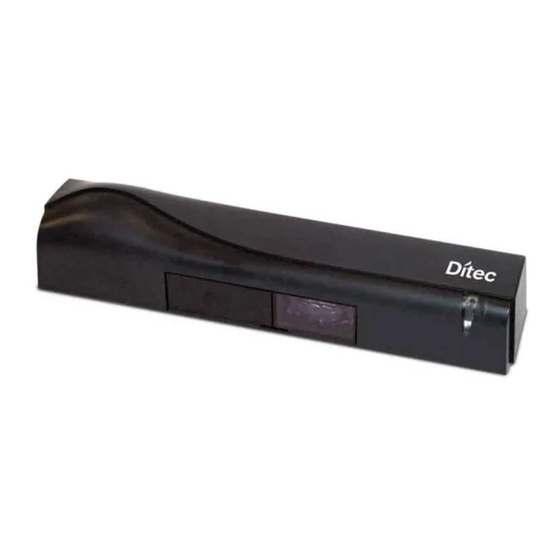

DITEC PAS024AMT Instructions Manual

Opening & safety sensor for automatic sliding doors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

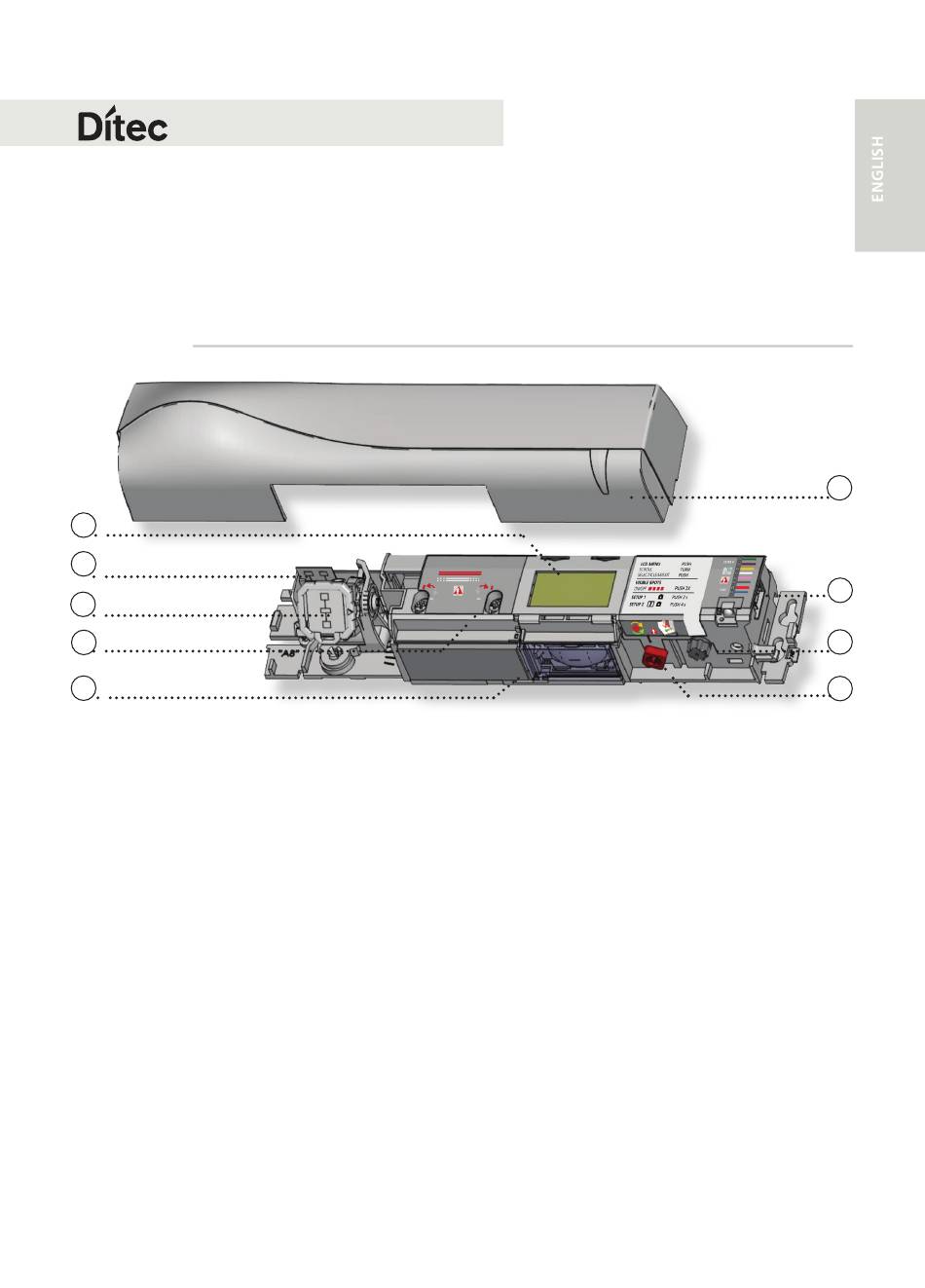

DESCRIPTION
1
2
3
4
5
1.
LCD
2.
radar antenna (narrow field)
3.
radar antenna (wide field)
4.
IR-curtain width adjustment
5.
IR-lenses
PAS024AMT
OPENING & SAFETY SENSOR
FOR AUTOMATIC SLIDING DOORS
(according to EN 16005 and DIN 18650,
including emergency exits)
User's Guide for software version 0501 and higher
(refer to tracking label on product)
6.
cover
7.
main connector
8.
main adjustment knob
9.
IR-curtain angle adjustment knob
6
7
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAS024AMT and is the answer not in the manual?

Questions and answers

Related Manuals for DITEC PAS024AMT

Summary of Contents for DITEC PAS024AMT

  • Page 1 PAS024AMT OPENING & SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS (according to EN 16005 and DIN 18650, including emergency exits) User’s Guide for software version 0501 and higher (refer to tracking label on product) DESCRIPTION cover radar antenna (narrow field) main connector...

  • Page 2: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Safety the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Push to enter...

  • Page 3: Mounting And Wiring

    INSTALLATION GUIDE MOUNTING & WIRING GREEN POWER SUPPLY BROWN YELLOW OPENING INPUT WHITE PINK GREY SAFETY INPUT TEST BLUE OUTPUT YE/BK + OPENING INPUT WH/BK - FOR CURRENT SOURCE * Depending on OUTPUT CONFIGURATION settings ** For compliance with EN 16005 and DIN 18650, connection to door controller test output is required.
  • Page 4 INFRARED SAFETY FIELD DOOR CLOSER CLOSER max. 9 cm** AWAY AWAY If necessary, adjust the IR-curtain Activate the visible* spots to verify the position of the IR-curtain. angle (from -7° to 4°, default 0°). * Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. ** The distance between the inner curtain of the inside door sensor and the inner curtain of the outside door sensor should always be smaller than 20 cm.

  • Page 5: Overview Of Settings

    OVERVIEW OF SETTINGS BASIC Back More factory values for radar immunity, IR immunity, IR number and redirection shopping critical increased immunities, 1 curtain PRESETTINGS standard street env. increased immunities, redirection = motion and presence Freq : freq. in Inv.freq. no detection RAD: FIELDSIZE >...

  • Page 6: Troubleshooting

    TROUBLESHOOTING ORANGE LED flashes 1 x. The sensor signals Replace sensor. an internal fault. ORANGE LED flashes 2 x. The power supply is too low Check power supply (in the diagnostics menu of the LCD). or too high. Check wiring. ORANGE LED flashes 3 x.

  • Page 7: Installation

    LED-SIGNAL Presence Motion detection detection LED flashes LED flashes LED flashes LED flashes LED is off quickly x times red-green INSTALLATION The sensor should be Do not cover the sensor. Avoid highly Avoid moving objects fixed firmly to avoid and light sources in reflective objects in extreme vibrations.

  • Page 8: Technical Specifications

    ASSA ABLOY Entrance Systems AB - Lodjursgatan 10 - SE-261 44 Landskrona - Sweden - www.ditecautomations.com ASSA ABLOY Entrance Systems AB hereby declares that the PAS024AMT is in conformity with the European directives 2014/53/EU (RED), 2006/42/EC (Machinery) and 2011/65/EU (ROHS).
