TRASSIR TR-D4281WDIR2 Quick Start Manual

Specification
Model TR-D4281WDIR2
Image sensor 1/2.8" CMOS 8МP
Resolution 8MP(3840x2160)
Frame rate 8MP@20fps (WDR off)
8MP@15fps (WDR on)
Electronic shutter speed 1/3 ~ 1/10 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.005Lux(F1.8)
IR range up to 20 m
Lens (mm)
Field of view (horiz./vert.) 106˚ / 58˚
Axes setting Pan: 0˚-60˚
Tilt: 0˚-80˚
Rotation: 0˚-60˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 13Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS
PoE (802.3af) / 12V DC
Power supply
PoE Class
Power consumption
PoE: 4.3W
Case material
Dimensions (mm) Ø106.7 x 51.1
Weight Net/Gross (g) 350 / 301
Protection IP67, IK10
Power surge TVS 6000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
1 / 1
Yes
Yes
0
DC: 4W
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

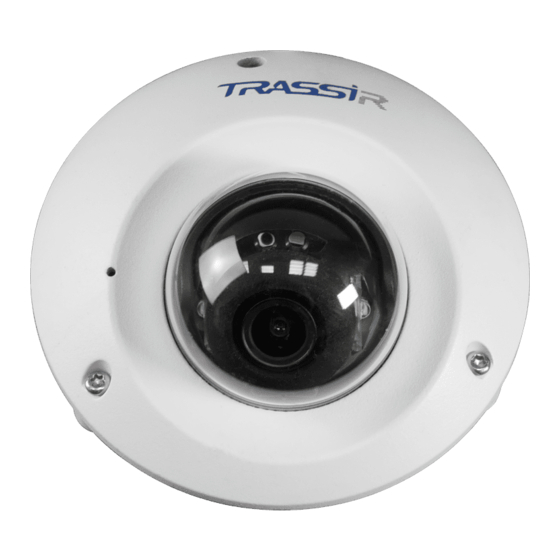

TR-D4281WDIR2
Outdoor IR Network Camera
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
