TRASSIR TR-D4251WDIR2 Quick Start Manual

Specification
Model TR-D4251WDIR2
Image sensor 1/2.8" CMOS STARVIS 5MP
Resolution 5MP(2592x1944)
4MP(2592x1520)
Frame rate 5MP@20fps
4MP@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity 0.003Lux (F1.8)
IR range up to 20 m
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 95.1˚ / 73.1˚
3.6mm: 78.3˚ / 58.1˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio
Built-in microphone
1 in / 1 out
Corridor mode
RTC
IVS Human detection
Line crossing
Intrusion detection
People Counting
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption
PoE: 7.5W
Case material
Dimensions (mm) Ø102.2 x 56.4
Weight Net/Gross (g) 320 / 420
Ingress protection IP66, IK10
Lightning protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
Yes
Loitering
3
DC: 7W
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D4251WDIR2

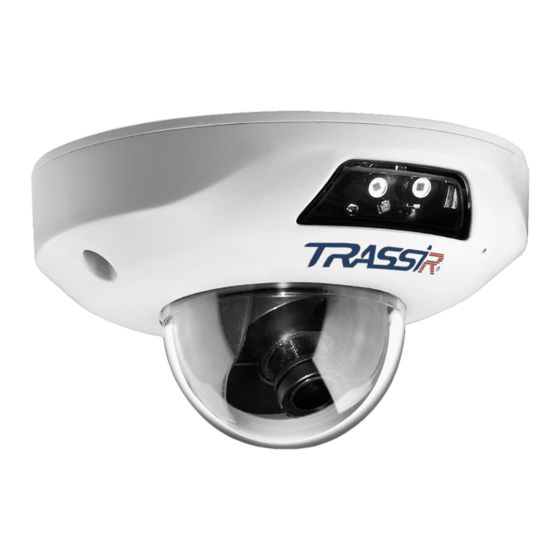

Vandal-proof IR Network Mini Dome Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
