Specification
Model
TR-D4221WDIR2
Image sensor
1/2.8" STARVIS CMOS 2MP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/night mode
Mechanical ICR
Sensitivity
0.003Lux (F1.8)
IR range
up to 20 m
Lens (mm)
Field of view (horiz./vert.)
2.8mm: 99˚ / 56˚
3.6mm: 82.5˚ / 44.5˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
AudioIn / AudioOut
Corridor mode
RTC
Power supply
PoE (802.3af) / 12V DC (1A)
PoE Class
Power consumption
DC: 5.5W
PoE: 5.9W
Case material
Dimensions (mm)
Ø102.2 x 56.4
Net/Gross weight (g)
310 / 400
Ingress protection
IP66, IK10
Lightning protection
TVS 4000V
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D4221WDIR2

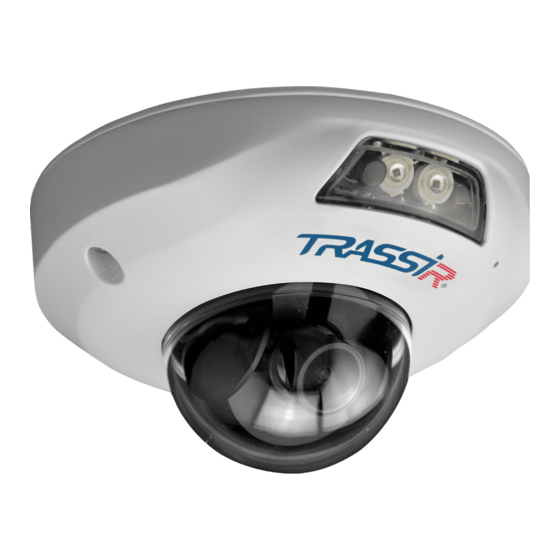

2MP Vandal-resistant Outdoor IP Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
2МP
Advertisement
Related Manuals for TRASSIR TR-D4221WDIR2
Summary of Contents for TRASSIR TR-D4221WDIR2
- Page 1 310 / 400 Ingress protection IP66, IK10 2МP Lightning protection TVS 4000V Working temperature -40°C … +60°C Data ___________________________ Stamp ___________________________ Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 IP camera. 2. Set up camera IP address using fast configuration utility that can be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
