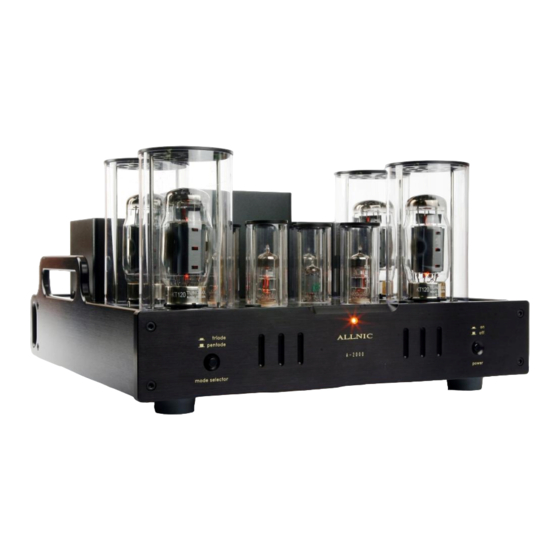

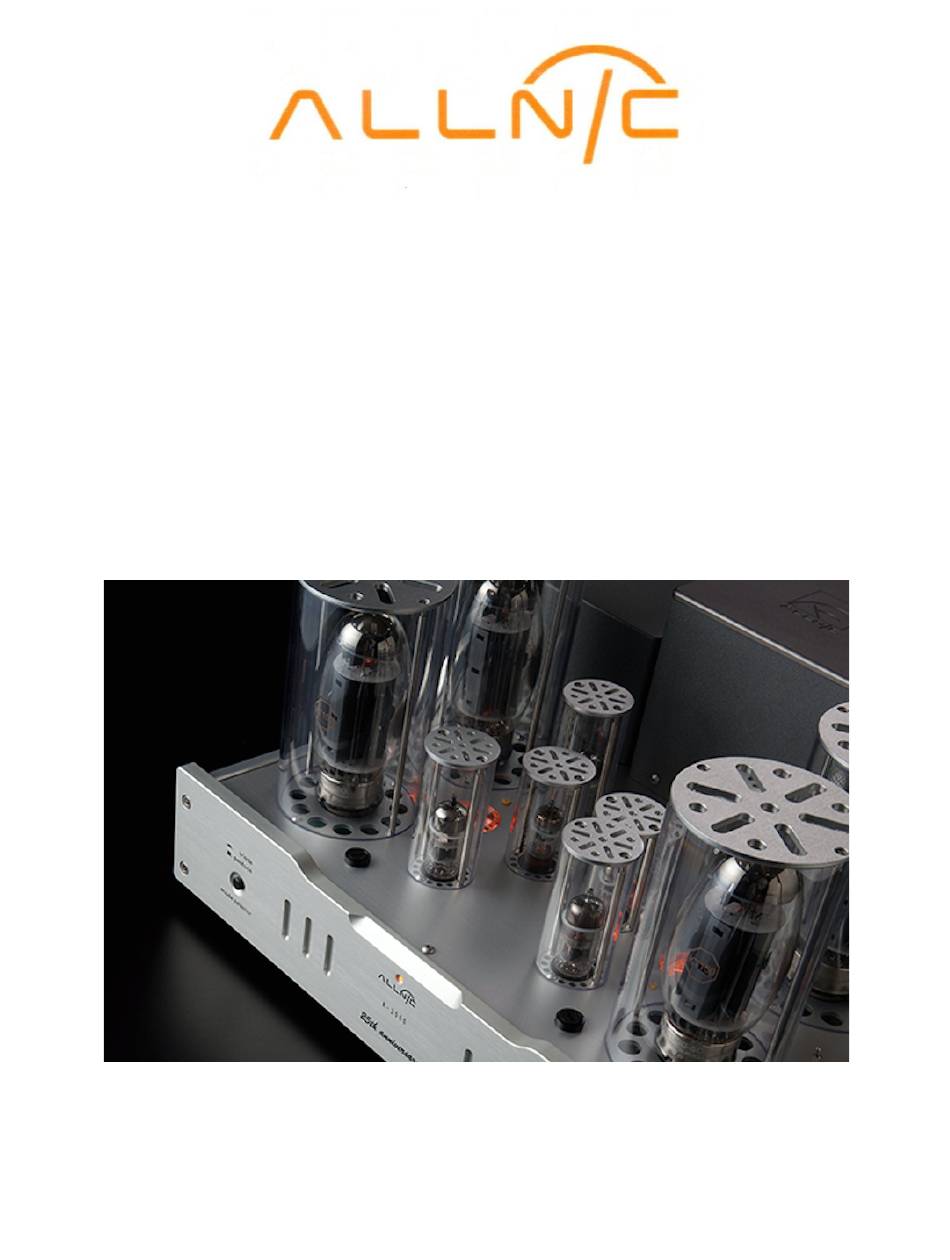

- Page 1 ALLNIC AUDIO A-2000 Anniversary SE (SPECIAL EDITION) KT150 PUSH-PULL STEREO POWER AMPLIFIER OWNER’S MANUAL...
- Page 2 STEREO POWER AMPLIFIER Thank you for purchasing the Allnic Audio A-2000 25th Anniversary SE Stereo Power Amplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high- quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
TUBES AND TUBE BIAS SPECIFICATIONS WARRANTY FIGURES Please read about SAFETY before you attempt to use the A-2000 SE - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The A-2000
KT150 power tube, a beam tetrode, with requisite changes to transformers and several minor circuit elements. The A-2000 25th Anniversary SE has the following features: • 100 watts of high-power output in pentode (beam tetrode) mode, 50 watts in triode. The A-2000 is a push-pull, pentode/triode switchable stereo power amplifier. -
Page 5: What's In The Box
A-2000 in your system. Be sure the A-2000 SE is labeled for the AC voltage of your location. If it is not, DO NOT connect it to your AC outlet. Please contact your Allnic dealer. -
Page 6: Cleaning
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio A-2000 SE needs to be placed on a solid stand in a location that provides good air circulation around, above and below the A-2000 25 Anniversary SE stereo power amplifier. -
Page 7: Speaker Terminals
The A-2000 SE is equipped with two pairs of high-quality speaker terminals, one for each channel. These terminals are located to the left of the IEC input (facing the rear of the amplifier) on the rear panel of the A-2000 chassis. The right channel terminals are closest to the chassis’... -
Page 8: Tubes And Tube Bias
Pentode to Triode operation. Press the mode selector button on the left side of the front panel down to have the A-2000 SE operate in Triode mode; press the button again so it is in the raised position to have the A-2000 SE operate in Pentode mode. -
Page 9: Specifications
If a meter’s needle drops to the left limit of the meter’s face during operation, this indicates a failure of the related KT150 tube. You must turn off the A-2000 SE and replace both the fuse (0.5A, 250V, 20mm slow-blow) for that tube and the KT150 itself. -
Page 10: Warranty
Date of purchase is the date indicated on the invoice for the product issued by Allnic Audio or its authorized representative. For the warranty to be valid, a defective product must be returned to Allnic Audio’s authorized representative for service prior to any unauthorized attempt to repair. Any repair work on an Allnic Audio product not specifically authorized by Allnic Audio or its authorized representative will void the warranty on the product. -
Page 11: Figures
Figures Figure 4: A-2000 SE Rear View... - Page 12 Figure 5: A-2000 SE Right Side View Figure 6: A-2000 SE Front View...
- Page 13 Figure 7: A-2000 SE Top View...
