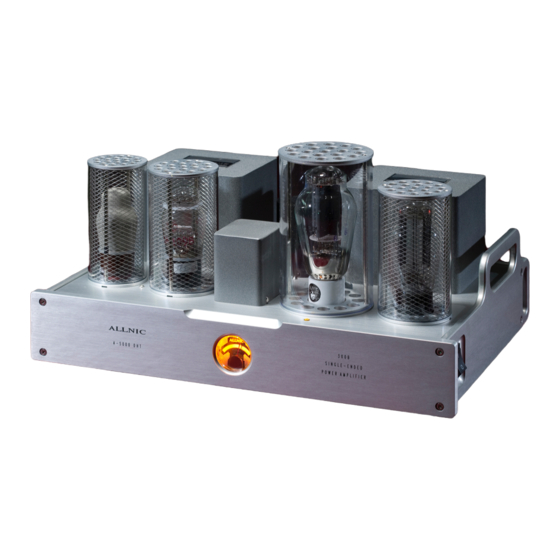

- Page 1 ALLNIC AUDIO A-5000 DHT 300B SINGLE-ENDED PURE DIRECT HEATED TRIODE MONOBLOCK POWER AMPLIFIER OWNER’S MANUAL...
- Page 2 PURE DIRECT HEATED TRIODE MONOBLOCK POWER AMPLIFIER Thank you for purchasing the Allnic Audio A-5000 DHT Monoblock Power Amplifiers. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high-quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: INTRODUCING THE A-5000 DHT SINGLE-ENDED, PURE DIRECT HEATED TRIODE MONOBLOCK POWER AMPLIFIER WHAT’S IN THE BOX? SAFETY CLEANING Chassis Connectors INITIAL SET-UP Location, Location, Location Inputs Speaker Terminals Power Connection INITIAL POWER ON OPERATION TUBES AND TUBE BIAS... -
Page 4: Introducing The A-5000 Dht Single-Ended, Pure Direct Heated Triode Monoblock Power Amplifier
• Natural negative feedback - The A-5000 DHT applies about -6dB of negative feedback. This is a very complimentary amount of negative feedback that differentiates the Allnic 300B single ended amplifiers from the standard, which have a very coloured and weak speaker driving force. -
Page 5: What's In The Box
Fig.3 Square Wave 20KHz* Measured by LEADER LAG-126 Audio Signal Generator and KENWOOD CS-4125 Oscilloscope. • As are all Allnic Audio products, the A-5000 DHT is fully RoHS (EU Reduction of Hazardous Substances regulation) compliant in construction and materials. WHAT’S IN THE BOX? Please check that each shipping box contains the following: •... -
Page 6: Cleaning
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio A-5000 DHTs need to be placed on a solid stand in a location that provides good air circulation around, above and below the monoblocks. • DO NOT cover the tops of the A-5000 DHTs. -
Page 7: Inputs
Each A-5000 DHT is equipped with one pair of high-quality speaker terminals (See Figure 4). These terminals are located in the middle of the rear panel of the A-5000 DHT chassis, with the red marked terminal for the live connection labelled positive “+” on the right, and with the return connection labeled negative “-”, to the left (facing the chassis rear). -
Page 8: Operation
The illuminated meter on the front of the chassis (see Figure 5) indicates the current supply to the 300B tube in the A-5000 DHT. There is a potentiometer that is used to bias the 300B (Refer to Figure 6 for its location). - Page 9 If the meter’s needle drops to the left limit of the meter’s face during operation and audio output stops, this indicates a failure of the 300B tube. The fuse will have “blown” as well. You must turn off the A-5000 DHT and replace both the fuse (315mA @ 250V, 20mm glass, fast blow type) for the tube and the 300B.
-
Page 10: Specifications
SPECIFICATIONS FOR THE ALLNIC AUDIO A-5000 DHT 300B SINGLE-ENDED, DIRECT HEATED TRIODE MONOBLOCK POWER AMPLIFIER • Output Power: 10w (8Ω load, at 1KHz) Less than 0.5% at 1KHz, 2.83V • Total Harmonic Distortion: • Frequency Response: 20Hz - 50KHz Flat •... -
Page 11: Warranty
Date of purchase is the date indicated on the invoice for the product issued by Allnic Audio or its authorized representative. For the warranty to be valid, a defective product must be returned to Allnic Audio’s authorized representative for service prior to any unauthorized attempt to repair. -
Page 12: Figures
FIGURES Figure 4: A-5000 DHT – Rear View Figure 5: A-5000 DHT – Front View... - Page 13 Figure 6: A-5000 DHT – Top View RS242...
