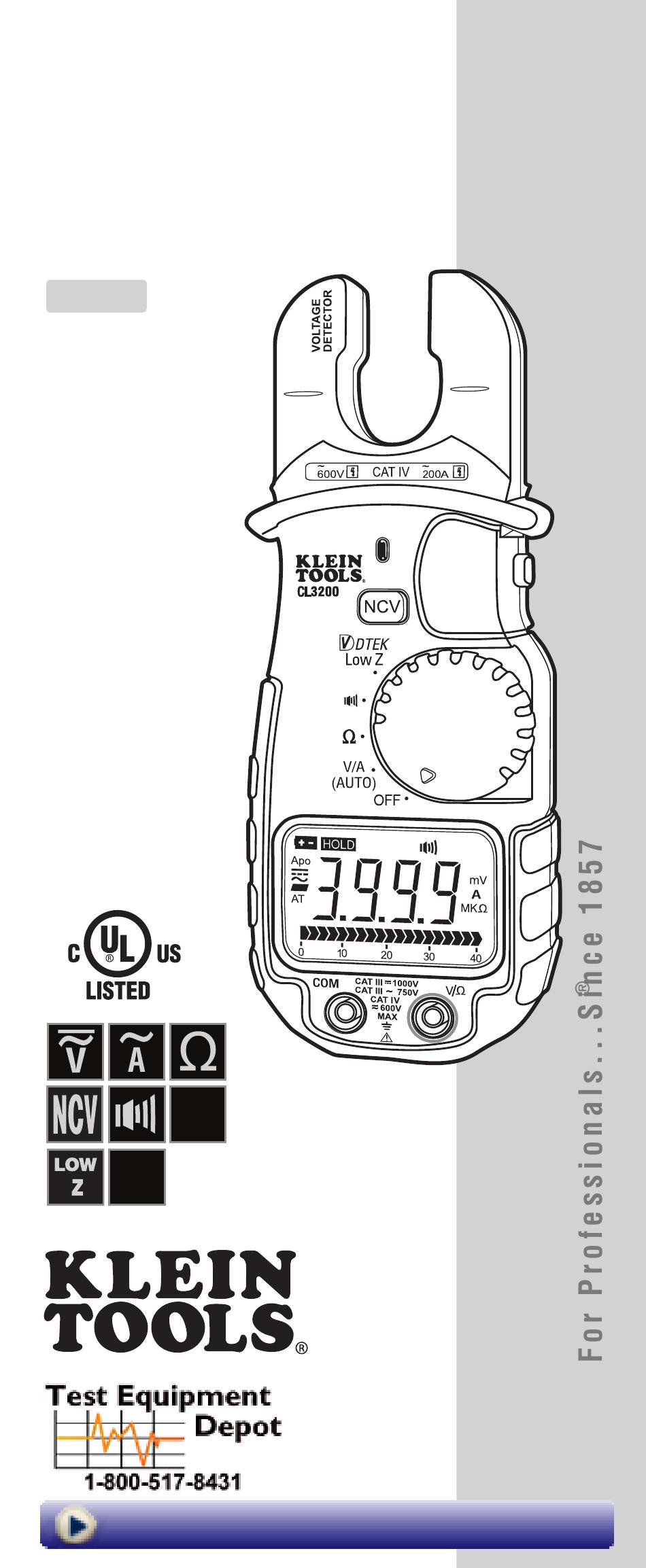

- Page 1 Instruction Manual CL3200 ENGLISH • AUTO VOLTAGE CURRENT DETECTION • BACKLIGHT • WORKLIGHT • LOW Z • BAR GRAPH • DATA HOLD • 3-3/4 DIGIT 3999 COUNT LCD • AUTO RANGE • NON CONTACT VOLTAGE TESTER HOLD AUTO 99 Washington Street...

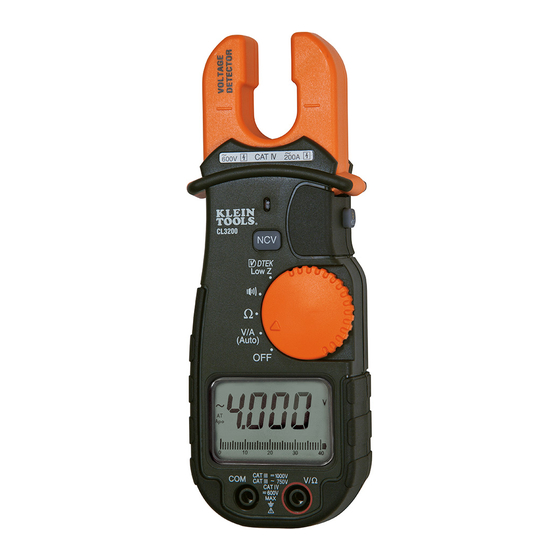

- Page 2 ENGLISH CL3200 Instruction Manual GENERAL SPECIFICATIONS The Klein Tools CL3200 is an auto-ranging general-purpose clamp meter. It measures AC / DC voltage, AC current, and resistance. It can also test non-contact voltage and continuity. • Operating Altitude: 2000 meters •...
- Page 3 SYMBOLS AC Alternating Current Warning or Caution DC Direct Current Dangerous levels DC/AC Voltage or Current Double Insulated Class II Safe for disconnect Ground from live conductors AC Source FEATURE DETAILS Test Equipment Depot - 800.517.8431 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com...
- Page 4 FEATURE DETAILS Use CATIII 1000V or CAT IV 600V rated leads or higher. Do not attempt to measure more than 1000V DC or 750V AC Keep hands below line when measuring high current levels. Auto Power-Off (Apo) • Device will power off after 30 minutes non-use. • Turn the dial or press a button to wake.
- Page 5 AC Current: < 200A • Center wire in guides for best accuracy. • Opposing currents cancel (use line-splitter when necessary). AC / DC Voltage: < 750V AC or 1000V DC AC / DC Voltage (Low Z): < 600V • The tester will automatically choose AC voltage or DC voltage or AC current based on the inputs detected.
- Page 6 ENGLISH SYMBOLS USED ON LCD AC Measurement DC Measurement Negative DC Value Auto Range Active Overload: Range Exceeded Auto Power-Off Active O.L. Low Battery Hold Active HOLD Voltage Measurement Current in Amps Ω Resistance in Ohms Continuity Test Kilo 10 Mega 10 ELECTRICAL SPECIFICATIONS DC Voltage Measurement...
- Page 7 Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. Klein Tools shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
