Klein Tools CL3000 Instruction Manual

Instruction Instruction
Manual Manual
CL3000
ENGLISH
• DATA HOLD
• BACKLIGHT
• RELATIVE
READING
• AUTO / MANUAL
RANGE
• 3-3/4 DIGIT
3999 COUNT LCD
www.kleintools.com
ENGLISH
CL3000
Instruction Manual
GENERAL SPECIFICATIONS

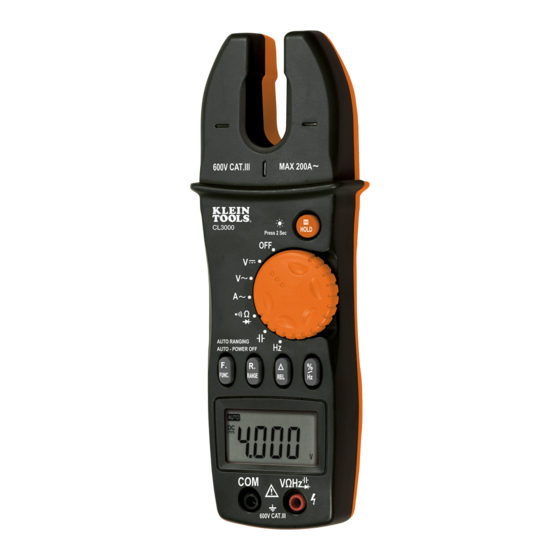

The Klein Tools CL3000 is a multi-function fork meter. It measures AC / DC
voltage, AC current, resistance, capacitance, frequency, and duty cycle.
It can also test diodes and continuity.
Operating Altitude:
• 2000 meters
Relative Humidity:
• 75% max
Operating Temperature:
• 0°C / 32°F to 40°C / 104°F
Storage Temperature:
• -10°C / 14°F to 50°C / 122°F
Accuracy Temperature:
• 18°C / 64°F to 28°C / 2°F
Beyond Accuracy Temperature:
•
Sampling Frequency:
• 3 samples per second
Jaw size:
• 12mm max conductor size
Dimensions:
• 7.5" x 2.7" x 1.7"
Weight:
• 7.4 oz.
Calibration:
• Accurate for one year
CAT Rating:
• CAT III 600V
Accuracy:
• ± (% of reading + # of least significant digits)
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the category based
rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out
power before measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use individual protective
equipment to prevent shock and arc blast injury where hazardous live
conductors are exposed.
SYMBOLS
~
AC Alternating Current
DC Direct Current
DC/AC Voltage or Current
Ground
0.1*(specified accuracy) / ° C
Warning or Caution
Dangerous levels
Double Insulated Class II
AC Source
