HUUM DROP Manual

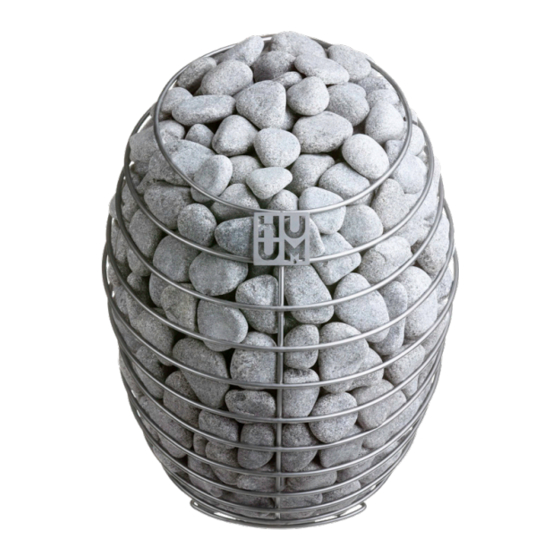

Electric sauna heater
Hide thumbs Also See for DROP:

Advertisement

Table of Contents

DROP
ELECTRIC SAUNA HEATER
SAUNA ELEKTRIKERIS
SAUNA SÄHKÖKIUKAAN
ELEKTRISCHER SAUNAOFEN
ЭЛЕКТРОКАМЕНКИ
ELEKTRISKT BASTUAGGREGAT
PIEC ELEKTRYCZNY DO SAUNY
ELEKTRICKÁ SAUNOVÁ PEC
ELEKTRICKÝ OHŘÍVAČ
POÊLE ÉLECTRIQUE
info@huum.eu
www.huum.eu
3–11
13–21
23–31
33–41
43–51
53–61
63–71
73–81
83–91
93-101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DROP and is the answer not in the manual?

Questions and answers

Related Manuals for HUUM DROP

Summary of Contents for HUUM DROP

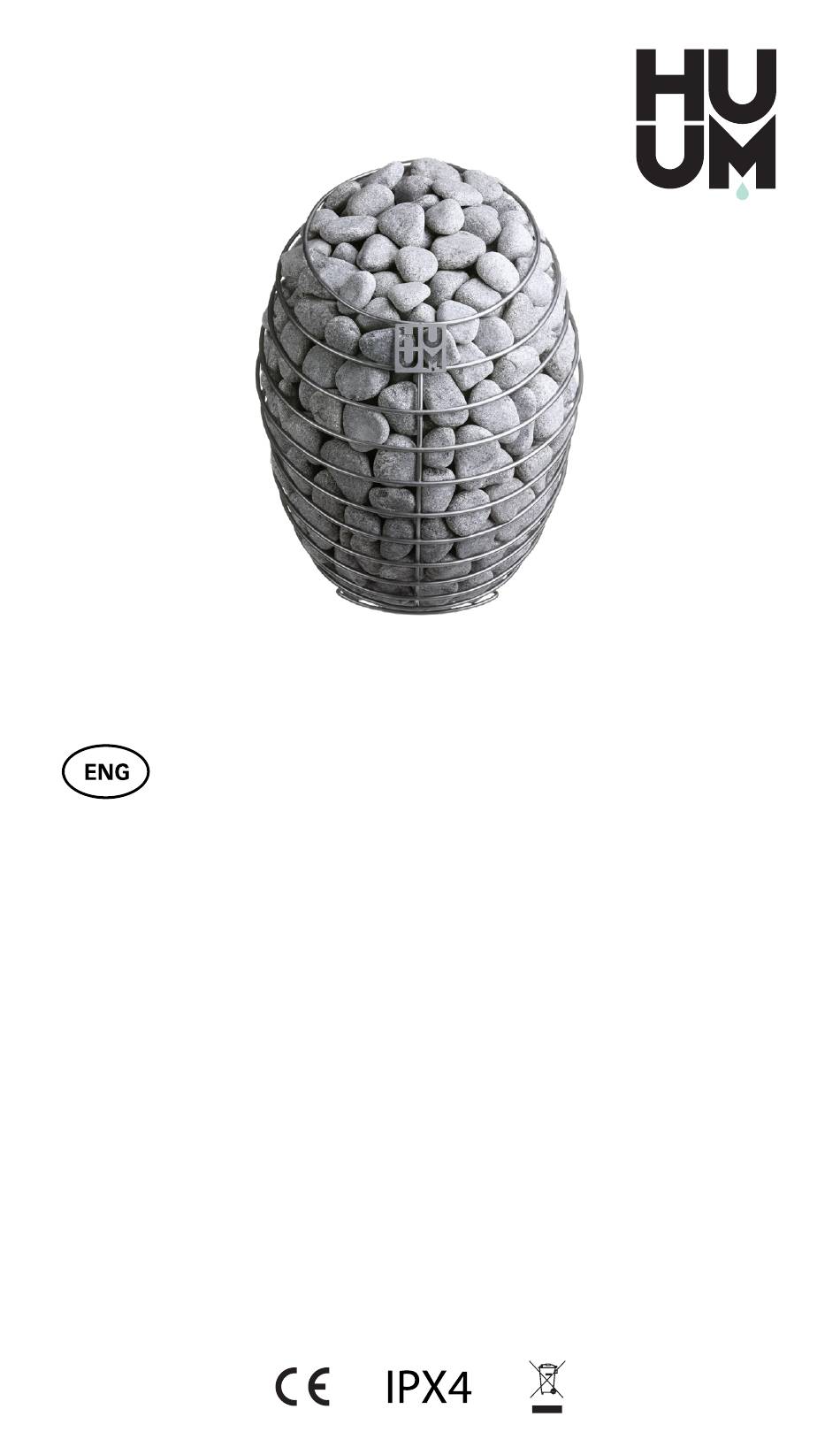

  • Page 1 DROP ELECTRIC SAUNA HEATER 3–11 SAUNA ELEKTRIKERIS 13–21 SAUNA SÄHKÖKIUKAAN 23–31 ELEKTRISCHER SAUNAOFEN 33–41 ЭЛЕКТРОКАМЕНКИ 43–51 ELEKTRISKT BASTUAGGREGAT 53–61 PIEC ELEKTRYCZNY DO SAUNY 63–71 ELEKTRICKÁ SAUNOVÁ PEC 73–81 ELEKTRICKÝ OHŘÍVAČ 83–91 POÊLE ÉLECTRIQUE 93-101 info@huum.eu www.huum.eu...
  • Page 2 ELECTRIC SAUNA HEATER Installation and operation manual The following instructions for electrical works must be carried out by a certified electrician. The product must be installed as a complete set. The HUUM DROP electric sauna heater delivery set contains: • electric heater;...

  • Page 3: Installation

    THINGS TO CHECK BEFORE INSTALLATION • Does the output (kW) match the volume (m³) of the sauna room? See Table 1. • In case there are any uninsulated brick, tile or glass walls in the sauna room, an additional volume of 1,5 m³ should be added to the sauna room for each such square meter of the wall.
  • Page 4 Output Room Min gap Table 1 DROP 4.5 3–7 1200 DROP 6 5–10 1200 DROP 9 8–15 1200 Connecting the heater to the power supply • Only a certified electrician is allowed to connect the heater to the power supply.
  • Page 5 Output Elements Circuit Breaker Power cable Table 2 DROP 4.5 3 × 10 5 × 1.5 DROP 6 3 × 10 5 × 1.5 DROP 9 1.5 / 2 3 × 16 5 × 2.5 It is forbidden to use a non-heat-resistant cable with PVC isolation as the power cable.
  • Page 6 The external surface of the stone container must be stacked full as tightly as possible; the surface of the heating elements must not be visible. • Using ceramic stones in the DROP heater is allowed upon the user’s responsibility. ATTENTION! A TOO SPARSELY FILLED STONE CONTAINER CAUSES FIRE HAZARD! Before switching the heater on, the insulation resistance might prove to be lower than the standard.

  • Page 7: Sauna Room

    SAUNA ROOM Wall materials and insulating the sauna room In a sauna with electric heating, all massive heat accumulating wall surfaces (brick, glass brick, rendering etc.) must be insulated to use the electric heater with a regular output. The following sauna wall and ceiling construction is considered to be sufficiently insulated: •...
  • Page 8 Darkening of the sauna room walls Due to heat, the wood material in the sauna room darkens in time. If you use wood protection products, you may notice that the wall above the heater darkens before long. The darkening process is also caused by the fine stone dust, breaking away from the heater stones and lifted up by the airflow.
  • Page 9 WARNING! • Before turning on the electric heater, always check the sauna room and heater. • The heater may be used only when it has been correctly filled with stones. • Do not cover the heater—this causes fire hazard. • Do not touch a working heater, it causes burns.

  • Page 10: Warranty Terms

    • product has not been installed correctly; • product has been modified in any way; • warranty period is over; • product is not complete. Find the latest updates on our website www.huum.eu...

This manual is also suitable for:

Drop 4.5Drop 6Drop 9
