ALVEO3D PrinterCase Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION
MANUAL
ALVEO3D

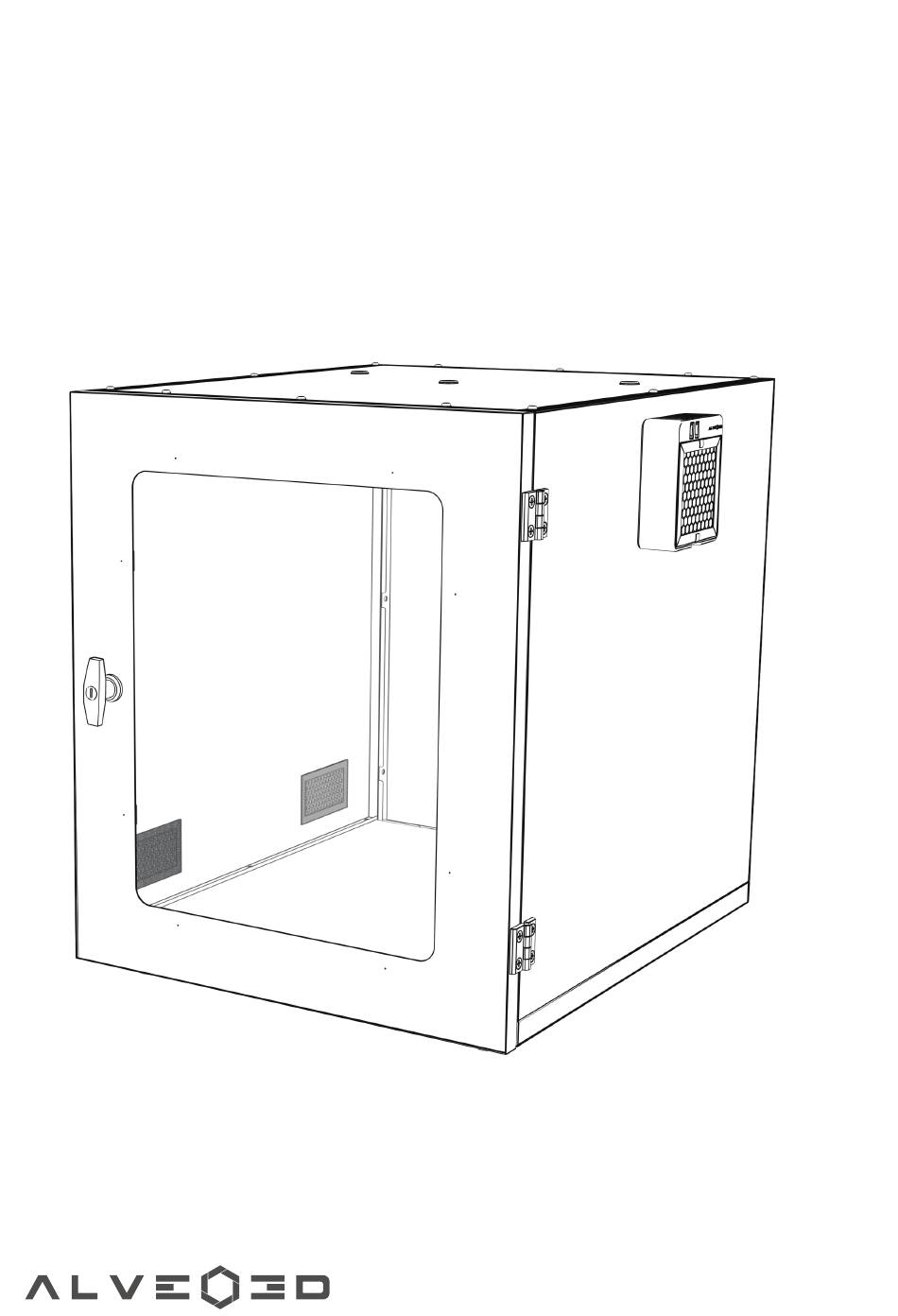

PrinterCase - 526563
3D printer enclosure with air filtering - HEPA13 & active carbon
Find assembly video on
www.alveo3d.com/en/assembly-printercase/
and download contents
www.alveo3d.com/en/download-printercase/
v1.0 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PrinterCase and is the answer not in the manual?

Questions and answers

Related Manuals for ALVEO3D PrinterCase

Summary of Contents for ALVEO3D PrinterCase

  • Page 1 INSTRUCTION MANUAL ALVEO3D PrinterCase - 526563 3D printer enclosure with air filtering - HEPA13 & active carbon Find assembly video on www.alveo3d.com/en/assembly-printercase/ and download contents www.alveo3d.com/en/download-printercase/ v1.0 EN...

  • Page 2: Table Of Contents

    1 TABLE OF CONTENTS p. 2 SAFETY INSTRUCTIONS PROVIDED ELEMENTS p. 3-4 PRINTERCASE - 526563 p. 5 p. 6 STEP 1 - LED LIGHT POSITIONING STEP 2 - BOTTOM AND LEFT PANELS p. 7 STEP 3 - BACK PANEL p.

  • Page 3: Safety Instructions

    Do not touch the electronic board in operation. Make sure the Printercase does not interfere with the full motion of your 3D printer axis, after it is placed in the enclosure. Filter operational range 0-60°C max For cleaning inside the Printercase, wear single-use gloves.

  • Page 4: Provided Elements

    PROVIDED ELEMENTS Provided elements in the kit Printercase - 526563 Bottom Panel Top Panel Left Panel Right Panel Back Panel Door Top panel support Lock support Lock 2x Door centering pins 4x Adjustable feet 15x Screw M6 12 mm round head...
  • Page 5 PROVIDED ELEMENTS Provided elements in the accessories box Screwdriver PH2 Wrench socket 10 mm Open-end wrench 10 mm Allen keys 2,5 mm and 4 mm 12x Screw M6 12 mm domed head 8x Fan screw M5 12 mm countersunk head Door seal strips 2x 650 mm and 2x 580 mm 4x Screw M3 12 mm cylindrical head 4x HEX Nuts M3...

  • Page 6: Printercase - 526563

    PRINTERCASE - 526563...

  • Page 7: Step 1 - Led Light Positioning

    STEP 1 . LED LIGHT POSITIONING Use the light positioning template to centering the LED light. Put he light positioning template in the middle hole as the drawing below. Stick the self-adhesive tape at the back of the light to the top panel. The LED light must be fixed on the side which you want to be inside the enclosure.

  • Page 8: Step 2 - Bottom And Left Panels

    STEP 2 . BOTTOM AND LEFT PANELS Begin with the bottom panel. Find the front and place it at 90° on the work plan. Bring the left panel. Bottom Bottom panel Front On the bottom panel, the front side does not have holes.

  • Page 9: Step 3 - Back Panel

    STEP 3 . BACK PANEL Put the back panel on the side (The passageway cable cut towards the bottom panel). Place all 6 screws between the left panel and the back panel then with the bottom panel. Tighten strongly back/bottom panels in the step 5, not now. 3x Screw round head M6 12mm Back panel...

  • Page 10: Step 4 - Passageway Cable

    STEP 4 . PASSAGEWAY CABLE Mount the passageway cable on the back panel. 3 elements printed in green. Back panel 4x Screws M3 cylindrical head 12 mm Insert nuts in their spots and tighten green elements on both sides of the panel.

  • Page 11: Step 5 - Right Panel

    STEP 5 . RIGHT PANEL Place the right panel with the filtering system cutting towards the top. Bottom panel Right panel 6x Screws round head M6 12mm Tighten the right panel with the back panel then with the bottom panel. Tighten strongly all screws, begin with back and bottom then left and...

  • Page 12: Step 6 - Feet Installation

    STEP 6 . FEET INSTALLATION Screw all feet as far as it will go. If needed, you can stick the anti-slippery pads under the feet. Feet...

  • Page 13: Step 7 - Filtering System

    STEP 7 . FILTERING SYTEM Protective grid Sealing cord 120 mm Fan box Electronic board Alveozero Filter box Fan screws do not need 8x Fan screws M5 nuts, they are self-drilling 12 mm countersunk head...

  • Page 14: Step 7.1 - Alveozero Board Detail

    STEP 7.1 . ALVEOZERO BOARD DETAIL Power switch turns on the filtering system. Lighting switch turns on the light. The board has 3 connectors : Fan, Light and board V2 (which requires the fan ALHP2425-H8 to control the system). POWER ON/OFF Lighting ON/OFF Connector Connector...

  • Page 15: Step 7.2 - Filtering System Preparation

    STEP 7.2 . FILTERING SYSTEM PREPARATION Take the filter box, electronic board, sealing cord 12 cm, the fan box and the fan. Put the electronic board Alveozero. You must see Filter box the symbol at the bottom of the board. Install the sealing cord.

  • Page 16: Step 7.3 - Mounting Filtering System

    STEP 7.3 . MOUNTING FILTERING SYSTEM Follow the next steps to install the filtering system. Handle the electronic board with care during assembling. In picture 2 : Put the electronic board in the hole from the bottom to the top. Right panel Plug the fan to the 4 pins «FAN»...

  • Page 17: Step 7.4 - Assembly Checkpoint

    STEP 7.4 . ASSEMBLY CHECKPOINT 4 panels assembly : bottom, left, back, and right : 15 screws and nuts Accessories : passageway cable, filtering system and feet Filtering system Passageway cable Feet...

  • Page 18: Step 8 - Air Intake Grids

    STEP 8 . AIR INTAKE GRIDS Put the air intake magnetic grids on the left panel. Left panel Magnetic grid...

  • Page 19: Step 9 - Insulating Foam

    STEP 9 . INSULATING FOAM Place the insulating foam on the bottom panel. Remove the self-adhesive protective film and stick it from the bottom to the front. Bottom panel Center the foam on the bottom panel from each panel's edges. Insulating foam 9 mm...

  • Page 20: Step 10 - Top Panel Strength Support

    STEP 10 . TOP PANEL STRENGTH SUPPORT Find the fixed nuts on the frame of each panels then place the strength support. Fixed nut 2x Screw flat head M5 10mm Screw the strength support and tingthen the screws. Strength support...

  • Page 21: Step 11 - Led Light Connecting

    STEP 11 . LED LIGHT CONNECTING Plug the light to the filtering system when you mount the top panel. Top panel Plug the light on the 2 pins connector. LED light...

  • Page 22: Step 12 - Assembly Top Panel

    STEP 12 . ASSEMBLY TOP PANEL Put the top panel on the structure then align the screw holes and tigthen the flange nuts with the domed head screws M6. Place the 3 15 mm holes on the top panel towards the back side.

  • Page 23: Step 13 - Lock Support

    STEP 13 . LOCK SUPPORT On the left panel place the lock support with the M5 screws 10mm. Left panel Lock support 2x flat head 10mm M5 screws...

  • Page 24: Step 14 - Door

    STEP 14 . DOOR Install the hinges on the right panel then assembly the door. Door hinge Countersunk head screw M6 16mm Check the door is properly aligned to the structure frame. Countersunk head screw M6 16mm (Go to STEP 20)

  • Page 25: Step 15 - Lock

    STEP 15 . LOCK The lock is composed by 4 elements : screw, latch, nut and handle. Screw Latch Handle Blocking quarter upward Handle vertical position...

  • Page 26: Step 16 - Door Seal

    STEP 16 . DOOR SEAL Put the door seals on the inner door frame. sealing strip Begin with the sealing strip 580 mm on the horizontal line. Sealing strip 580 mm Sealing strip 650 mm Cut the sealing strip around the latch to ensure a good latch motion following the panel shape.

  • Page 27: Step 17 - Setting Lock Support

    STEP 17 . SETTING LOCK SUPPORT Set the lock support to get the most efficient locking : you can move the support from back to front then when you have a good locking you can tighten the screws. Lock support Slide the lock support and hold the screws Screw M5 10 mm...

  • Page 28: Step 18 - Filter Installation

    STEP 18 . FILTER INSTALLATION Put the filter in the filter box. Avoid to touch filtering surfaces. You can grab the filter by the foam and cardboard frame. P3D Filter Notch Use the cloth tabs and notch to take off the filter without touching filtering surfaces.

  • Page 29: Step 19 - Power Supply

    STEP 19 . POWER SUPPLY Plug the DC jack power to the filtering system. Power DC socket Power supply with a 2.5m wire length and an EU plug.

  • Page 30: Step 20 - Door Alignment

    STEP 20 . DOOR ALIGNMENT Adjustable feet can help to align the door with the structure. You just need to loosen the foot above the arrow in the picture below. Loosen a bit this foot...

  • Page 31: Step 21 - Caps And Filament Guide

    STEP 21 . CAPS AND FILAMENT GUIDE Caps and filament guide are provided with the Printercase kit. Put them on the Top panel there are 3 15mm diameter holes. Choose the best position for your 3D printer spool. Filament guide...

  • Page 32: Step 22 - Option Controller Board V2

    V2 wires can go through the top panel holes Positioning stand V2, available for free Download STL on the website alveo3d.com The board V2 can be placed where you want with the 1 meter long wire provided with the board.
  • Page 33 NOTES HEPA Filter P3D lifetime: Filter working life is associated with many factors including : filament type, melting temperature, concentration of nanoparticles and VOCs, ambiant humidity... We suggest to replace HEPA filter P3D according to the following table: Intensive use Occasional use Filter replacement 3 months...
  • Page 34 NOTES :...
  • Page 35 NOTES :...
  • Page 36 Breath ! You are filtering ! Share your experience on www.facebook.com/alveo3d/ ALVEO3D by FLEXEE SYSTEM SAS 386 Rue de la Curiaz 73290 La Motte-Servolex www.alveo3d.com contact@alveo3d.com Designed in France...
