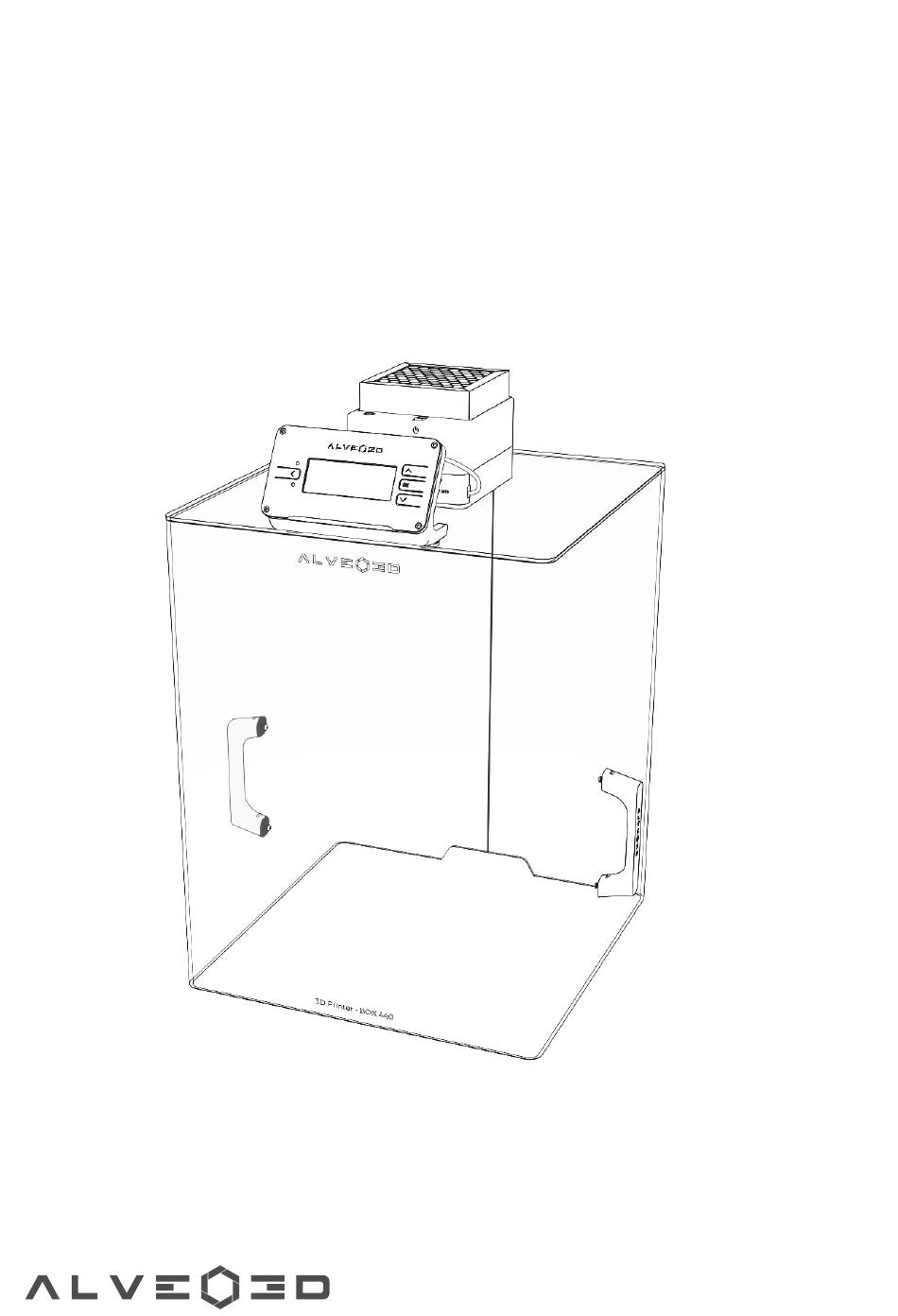

- Page 1 INSTRUCTION MANUAL ALVEO3D PrintBOX - 440 & 500 & 550 Enclosure and air filtering system for resin 3D printer - Option V2 Find all assembling content on www.alveo3d.com/assembly-printbox/ and download contents on www.alveo3d.com/download-printbox/ v1.0 EN...
-
Page 2: Table Of Contents
SUMMARY p. 1 SUMAMRY p. 2 SAFETY PROVIDED ELEMENTS p. 3 STEP 1 - ELECTRONIC BOARD ASSEMBLING p. 4 STEP 2 - FAN ASSEMBLING p. 5 STEP 3 - CONNECTING FAN p. 6 STEP 4 - CLOSING CASE p. 7 STEP 5 - FILTERING SYSTEM AND FILTER INSTALLATION p. -
Page 3: Safety
SAFETY Read the instructions before use The use of an enclosure helps to contain the pollutant emissions associated with the use of 3D printers. It is recommended to always use ventilation during the printing process. The filtration system uses a powerful fan. You should only turn it on after the device is completely assembled with the protective screw-on cover and filter. -
Page 4: Provided Elements
PROVIDED ELEMENTS Provided elements with the PrintBOX - 440 & 500 & 550 PrintBOX 440 or 500 or 550 2x Handles - PETG Holes cover - PETG AlveoZERO filtering system - 2 parts Electronic board V0 Fan H6 Filter P3DL with plastic bag Philips screwdriver Power supply 24v EU socket plug 4x Screw domed M4 10 mm... -
Page 5: Step 1 - Electronic Board Assembling
STEP 1 . ELECTRONIC BOARD ASSEMBLING Slide the electronic board on the slot in the plastic casing which will be use for the filter. Electronic board alveoV0 The icon must be visible once the board is placed. -
Page 6: Step 2 - Fan Assembling
STEP 2 . FAN ASSEMBLING The label must be on the opposite side of the honeycomb grid. The AlveoV0 cover will be used to ease the V2 wire connection on the board AlveoV0. Passageway cable for fan connector Honeycomb grid Fan label Put the AlveoV0 cover if necessary AlveoV0 cover... -
Page 7: Step 3 - Connecting Fan
STEP 3 . CONNECTING FAN To connect the fan wire to the electronic board alveoV0, the 4 pin connectors on the fan wire must be plugged to the male 4 pins connector on the same size as the power supply connector. 4 pin connector female Power supply connector... -
Page 8: Step 4 - Closing Case
STEP 4 . CLOSING CASE Close the filtering case by screwing the self-tapping screw from the filter slot to the fan. During the closing, you must ensure the rail from the fan case part must perfectly fit with the rail from the filter case part to ensure a global airtight. -
Page 9: Step 5 - Filtering System And Filter Installation
STEP 5 . FILTERING SYSTEM AND FILTER INSTALLATION Place the filtering case on the top of the enclosure with the screwdriver, provi- ded in the bundle. The honeycomb fan grid must be in direct contact with the top surface. Honeycom fan grid top surface cutout Self-tapping screw 16 mm P3DL filter... -
Page 10: Step 6 - Power Supply
STEP 6 . POWER SUPPLY Put the holes cover DC jack power supply connector In order to supply power to the filtering system, plug the DC jack from the power supply on the connector. -
Page 11: Step 7 - Handles - Assembling Done (Without Option V2)
STEP 7 . HANDLES - ASSEMBLING DONE (WITHOUT OPTION V2) Put the handles on each side of the box with the domed screw M4 18 mm. If the screwing is difficult, check if the square nuts M4 are well positioned on handles. -
Page 12: Step 8 - Option V2
The filtering system can be controlled by the V2 board provided pre-assembled. It is necessary to have the high-pressure ALHP2425-H8 fan to run the board V2. https://www.alveo3d.com/en/product/high-pressure-fan/ If you order the board V2 and the high-pressure H8 fan independently of the enclosure 3D printer - BOX (PrintBOX). -
Page 13: Step 9 - Assembling V2
STEP 9 . ASSEMBLING V2 Insert and screw the hexagonal nuts to mount the board V2 on the support. Support V2 board Cylindrical screw M3 12mm Hexa M3 nut Cylindrical screw M3 25mm Mount the support and the board V2 on the enclosure with the 2 screws and printed pads. -
Page 14: Step 10 - V2 Connectors
STEP 10 . V2 CONNECTORS After the V2 is assembled on the top side of the enclosure, the last step is about to connect the cable from the step 8, linking the board AlveoV0 to the board V2 and the temperature sensor. 3 pins connector for 4 pins connector for the temperature sensor... -
Page 15: Step 11 - V2 Wire Connection
STEP 11 . V2 WIRE CONNECTION Connect the power cable 4 pins from the AlveoV0 to the V2. Plug the board V2 temperature sensor and put the metal part on the orifice behind the board V2 on the enclosure top surface. -
Page 16: Step 12 . Online Support
STEP 12 . ONLINE SUPPORT For all extra information, find the online support on the following link : https:/www.alveo3d.com/assembly-printbox/ Find the instruction manual for the board V2 in PDF format : https://www.alveo3d.com/en/board-v2-assembly/ Notice : during the initialization step of the controller board V2, the enclosure volumes are : 3D Printer - Box550 : 72 dcm�... -
Page 17: Notes
NOTES Filter life The life of a filter is linked to many factors such as: the type of plastic used for printing, the melting temperature, the concentration of nanoparticles and volatile organic compounds, the humidity level... We recommend replacing the filter according to the table below : Intensive use Occasional use Filter replacement... - Page 18 NOTES :...
- Page 19 NOTES :...
- Page 20 Breath! Your are filtering! Share your experience on www.facebook.com/alveo3d/ ALVEO3D by FLEXEE SYSTEM SAS 386 Rue de la Curiaz 73290 La Motte-Servolex www.alveo3d.com contact@alveo3d.com Designed, Printed & Assembled in France...
