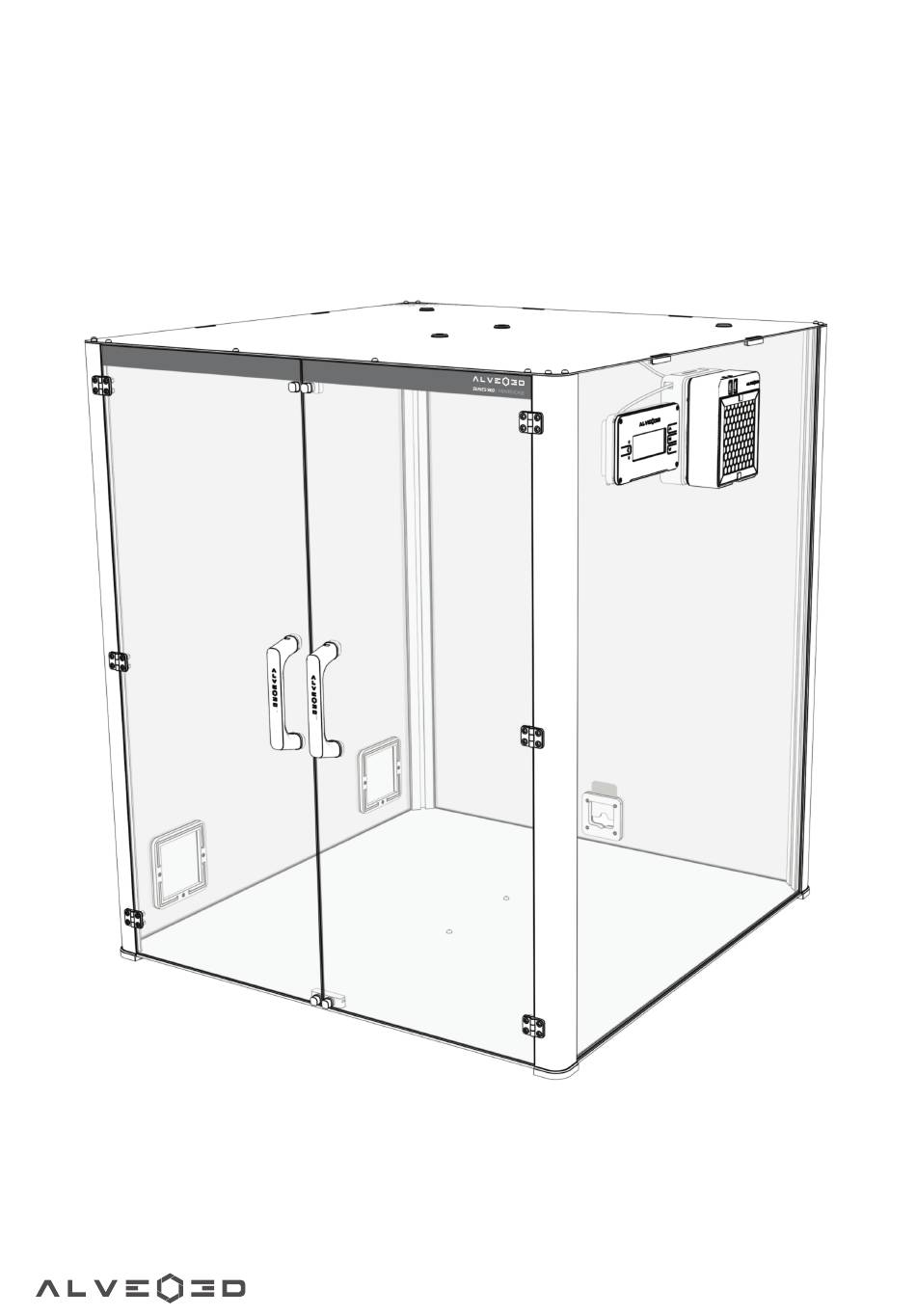

- Page 1 INSTRUCTION MANUAL ALVEO3D PRINTERCASE - SERIES : 900 - 800 - 600 Safety enclosure for 3D printer Find the support page www.alveo3d.com/en/assembly-printercase/ and the contents to download www.alveo3d.com/en/download-printercase/ v1.0 EN...
-
Page 2: Table Of Contents
SUMMARY p. 1 SUMMARY p. 2 SAFETY ELEMENTS LIST p. 3 p. 4 STEP 1. PREPARING THE BOTTOM PANEL p. 5 STEP 2 . LOW MAGNETIC SYSTEM ASSEMBLY p. 6 STEP 3 . MOUNTING THE BOTTOM PANEL p. 7 STEP 4 . ASSEMBLY OF AIR INLET GRILLES p. -
Page 3: Safety
SAFETY Read the instructions before use The use of an enclosure helps to contain the pollutant emissions associated with the use of 3D printers. It is recommended to always use ventilation during the printing process. The filtration system uses a powerful fan. You should only turn it on after the device is completely assembled with the protective screw-on cover and filter. -
Page 4: Elements List
ELEMENTS LIST The elements supplied with the PRINTERCASE SERIES 900 - 800 - 600 Aluminum enclosure 1x main box Model 900 / Model 800 / Model 600 1x PMMA panel case 1x case Aluminium plates 1x carton tube 1x set of 5 panels 3mm thick 1x bottom plate 4mm 2x profiles with holes 1x top plate 2mm... -
Page 5: Step 1. Preparing The Bottom Panel
STEP 1. PREPARATION OF THE BOTTOM PANEL Start by mounting the accessories on the bottom 4mm aluminum panel. Position the side with the 3 rails of the enclosure upwards (the side facing inwards). Insert the 2mm black EPDM foam gaskets into the rails. -
Page 6: Step 2 . Low Magnetic System Assembly
STEP 2. BOTTOM MAGNETIC SYSTEM ASSEMBLY Mount the magnetic locking system on the bottom plate. Insert one of the two magnets into the magnet holder. Insert the M4 square nuts into the slots on the bracket, then secure the bracket to the plate with the two 16mm M4 cap screws. -
Page 7: Step 3. Mounting The Bottom Panel
STEP 3. MOUNTING THE BOTTOM PANEL The bottom panel is mounted using 8 M5 screws with a 20 mm domed head. They are screwed directly into the ends of the aluminum profiles by taking the bottom plate and the corner feet . Be careful to screw in the first few threads by hand and then using the 3mm Allen wrench provided with the kit. -
Page 8: Step 4 . Assembly Of Air Inlet Grilles
STEP 4. MOUNTING THE AIR INLET GRILLES On the panel with the two square cut-outs, mount the grilles before installation in the aluminum structure. The assembly is done with the 6 M3 cylindrical screws 10 mm and 6 M3 hexagonal nuts. The air intake grilles are supplied pre-assembled. -
Page 9: Step 5 . Assembly Of Cable Passage
STEP 5. MOUNTING THE CABLE ENTRY The cable entry is mounted on the rear panel with 4 x 10mm M3 cylindrical screws and 4 x M3 hex nuts. Put the nuts in their places, before tightening the screw. Once the assembly on the panel is completed, slide the knife into the slot of the part on the screw side. Partially remove the protective film from the panel before assembly. -
Page 10: Step 6 . Gasket And Panel Assembly
STEP 6. GASKET ASSEMBLY AND PANEL ASSEMBLY The silicon gaskets are mounted on the rear panel (cable entry) and the side panels (air inlet and filtration system grilles). Remove the protective film from the sides of the panels. Install the silicone gasket in a U shape. The lengths of the gaskets are cut to the right size, install the gaskets without stretching them. -
Page 11: Step 7. Illustration Of Mounted Structure Box
STEP 7. ILLUSTRATION OF MOUNTED STRUCTURE BOX In this step, the bottom aluminum panel, profiles, PMMA panels are mounted, as well as the accessories on the panels, air inlet grilles and cable passage. -
Page 12: Step 8. Assembly Of The Filtration System
STEP 8. ASSEMBLY OF THE FILTRATION SYSTEM The filtration system is mounted on the front of the unit on either side of the transparent panel. Fan connector LED connector V2 Connector Insert the electronic board Once the electronic board into its slot following the is in place, locate the rails, components connectors. -
Page 13: Step 9 . Panel Filtration System Assembly
STEP 9. PANEL MOUNTING THE FILTER SYSTEM Panel mounting is done with 4 M5 self-drilling screws from the housing side of the filter location through the panel to the fan. Screw directly into the plastic of the fan. Place the fan in its place, the label facing panel transparent. -
Page 14: Step 10 . Closing The Filtration System
STEP 10. CLOSING THE FILTER SYSTEM Connect the cables and close the rear protection grid. Connect the fan connector. Pass the power cable of the V2 board through the hole on the side of the housing. 19cm black braided cable Place the 120mm cylindrical joint in the rail on the case above the fan. -
Page 15: Step 11 . V2 Board Assembly
STEP 11. ASSEMBLY OF THE V2 BOARD The V2 board is supplied pre-assembled. Mount the V2 board in its slot on the panel and use the clamp ring to secure the board to the panel with the 4 M3 14mm cylindrical screws and 4 M3 hex nuts. M3 14mm cylindrical M3 nuts RS 232... -
Page 16: Step 12 . Connecting The V2 Sensor
STEP 12. CONNECTING THE V2 PROBE The V2 probe is connected to the middle 3-pin connector on the V2 board. After connecting the cables, use the self-adhesive base and cable clamp for the probe on the back of the V2 board if necessary. Connect the cable from the electronic board of the filter box to the V2 board on the 4-pin... -
Page 17: Step 13. Preparing The Top Panel
STEP 13. PREPARING THE TOP PANEL Mount the magnetic locking system on the support bar. Insert one of the two magnets into the magnet holder slot. Then fix the magnet holder to the bar with the two M5 screws. Mount the magnet holder on the bar. -
Page 18: Step 14. Mounting The Top Panel
STEP 14. MOUNTING THE TOP PANEL The panel is mounted by screwing the 8 M5 screws (20mm) into the profiles. Screw by hand on the first threads and then with the 3mm Allen key supplied with the kit. Make sure that the screws fit the threads before tightening. Adjust the panel clamps Screw the 8 M5 screws 20mm in the profiles... -
Page 19: Step 15 . Mounting The Led Headband
STEP 15. MOUNTING LED STRIP The first step is to glue the LED strip on the 2mm aluminum panel (the top panel). Be careful once glued, it is very difficult to remove and reposition the LED strip. Position the light installation template in the center of the panel, align it with the two pins to put in... - Page 20 STEP 16. ILLUSTRATION OF THE ASSEMBLED STRUCTURE 2 Assembly is almost complete!
-
Page 21: Step 17. Orientation Of The Doors
STEP 17. ORIENTATION OF THE DOORS The door panels must be oriented in the correct top/bottom direction. The 600 series has only two hinges per door. BOTTOM... -
Page 24: Step 19. Mounting Accessories On 2/2 Doors
STEP 19. MOUNTING ACCESSORIES ON 2/2 DOORS Screw 2 M4 countersunk Insert the M5 square nuts into 12mm screws with 2 nylstop the nut covers and then screw hex nuts through each hinge the M5 countersunk 12 mm onto the panels. screws into the magnet screw covers to hold everything together. -
Page 25: Step 20. Mounting The Doors On The Profiles
STEP 20. MOUNTING THE DOORS ON THE PROFILES To mount the doors on the profiles, use the M4 countersunk screws 8 mm, to be screwed directly into the thread of the profiles. Be careful, screw with the 2.5mm Allen key supplied with the kit. Make sure that the screws fit the thread before tightening. -
Page 26: Step 21 . Mounting Accessories
STEP 21. ACCESSORY ASSEMBLY On the top panel, insert the plugs and/or filament passages if you have the filament spools placed outside the enclosure. Insert the filter into its slot. Connect the power supply Push it in as far as it will to the side connector. -
Page 27: Notes
NOTES Filter life The life of a filter is linked to many factors such as: the type of plastic used for printing, the melting temperature, the concentration of nanoparticles and volatile organic compounds, the humidity level... We recommend replacing the filter according to the table below : Intensive use Occasional use Filter replacement... - Page 28 Breathe! You are filtering! Share your experience on www.facebook.com/alveo3d/ ALVEO3D by FLEXEE SYSTEM SAS 386 Rue de la Curiaz 73290 La Motte-Servolex www.alveo3d.com contact@alveo3d.com Designed in France...
