Terra HS005T Quick Start Manual

Splitband amplifier

Advertisement

Product description

A splitband amplifier is intended for amplifying cable TV, terrestrial TV and FM radio signals.
There is a possibility to adjust the gain of the amplifier separately in VHF and UHF bands.
The amplifier can provide power to external equipment (check Technical characteristics) through RF IN connector (1).
The UHF sub-band of the amplifier has integrated 30 dB LTE signal suppression filter
The amplifier is intended for indoor use only.

Safety instructions

Installation of the amplifiers must be done according IEC60728-11 and national safety standards.
The amplifier is powered from mains 230 V~. This voltage is dangerous to life.
Any repairs must be done by a skilled personnel.
The amplifier is double isolated from the mains 230 V~.
Do not remove the cover of the power supply section, without disconnecting the unit from the mains supply.
Do not plug the amplifier into the mains supply if the power cord or plug is damaged.
Do not plug the amplifier into the mains supply until all cables have been connected correctly.
The mains socket must be easily accessible.
The amplifier shall not be exposed to dripping or splashing water.
Avoid placing amplifier next to central heating components and in areas of high humidity.
If the amplifier has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours before plugging
into the mains.
Do not insert any objects into ventilation openings.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths,
curtains.
Mount the amplifier on not flammable wall or in not flammable installation box in vertical position with RF input connector
underneath. The amplifier must be fixed with steel screws Ø 4-5 mm. The screws are not included in a package. Mount in
locations where children not likely to be present. Shields of cables must be connected to main potential equalization bus.
From top, front and bottom of installed amplifier must be at least 10 cm free space.

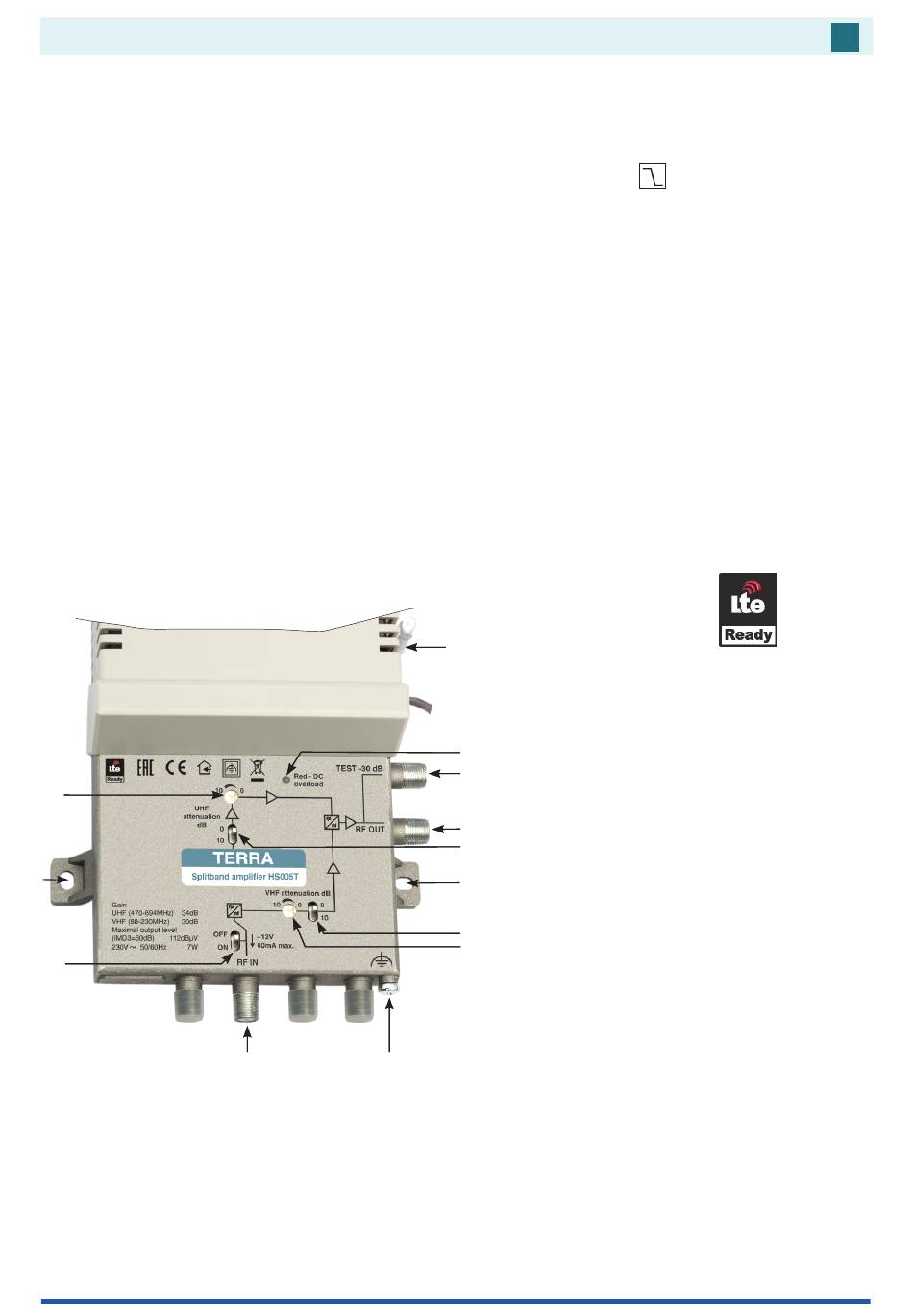

External view

6
6
12
8
8

INSTALLATION INSTRUCTIONS

Read the product description and safety instruction first.
Installation of system according standard IEC60728-11 ensures safety of personnel and prevents apparatus against
damaging due to lightning or other sources of overvoltage surges.
Gain of every sub-band can be adjusted with screwdriver (11). The gain increases up to 10 dB by fine turning regulators
(6, 7) clockwise in every sub-band and an additional 10 dB by switching switches (4, 5).
Power feed for external equipment is turned on and off by switch (8). It has short circuit and overload protection. In normal
conditions power indicator (10) glows green. If short circuit or overload in external powered equipment is detected - glows red.
Vers. 1.05
Splitband amplifier HS005T
1
1
9
9
11
11
1. RF IN - RF signal input connector
2. TEST -30 dB - -30 dB output test point
3. RF OUT - RF signal output connector
10
10
2
2
4, 5. 10 dB gain switches (10 dB attenuation
for each sub-band)
6, 7. 10 dB fine tuning gain regulators
3
3
for each sub-band
4
4
8. Switch to turn on/off the power feed for external
12
equipment
9. Functional ground clamp
10. Power indicator
5
5
7
7
11. Screwdriver
12. Mounting supports
EN
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS005T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Terra HS005T

  • Page 1 Splitband amplifier HS005T Product description A splitband amplifier is intended for amplifying cable TV, terrestrial TV and FM radio signals. There is a possibility to adjust the gain of the amplifier separately in VHF and UHF bands. The amplifier can provide power to external equipment (check Technical characteristics) through RF IN connector (1).
  • Page 2 Technical characteristics Frequency range 88-230 MHz 470-694 MHz Gain 30 dB 34 dB Flatness ± 1 dB ± 0.5 dB Gain adjustment 20 dB 20 dB Maximal output level IMD3=60 dB (DIN45004B) 115 dBµV, IMD3=60 dB 112 dBµV Input and output return loss >...
