Terra HS005T Manual

Splitband amplifier

Advertisement

Splitband amplifier
HS005T

Product description

A splitband amplifier is intended for amplifying cable TV, terrestrial TV and FM radio signals.
There is a possibility to adjust the gain of the amplifier separately in VHF and UHF bands.
The amplifier can provide power to external equipment (check Technical characteristics) through RF IN connector (1).
The UHF sub-band of the amplifier has integrated 30 dB LTE signal suppression filter
The amplifier is intended for indoor use only.

Safety instructions

Installation of the amplifiers must be done according IEC60728-11 and national safety standards.
The amplifier is powered from mains 230 V~. This voltage is dangerous to life.
Any repairs must be done by a qualified personnel.
The amplifier is double isolated from the mains 230 V~.
Do not remove the cover of the power supply section, without disconnecting the unit from the mains supply.
Do not plug the amplifier into the mains supply if the power cord or plug is damaged.
Do not plug the amplifier into the mains supply until all cables have been connected correctly.
To disconnect the amplifier from the mains completely, disconnect plug from the mains socket.
The mains socket must be easily accessible.
The amplifier shall not be exposed to dripping or splashing water and no objects filled with liquids, such as vases, shall
be placed on it.
Avoid placing amplifier next to central heating components and in areas of high humidity.
No naked flame sources, such as lighted candles, should be placed on amplifier.
If the amplifier has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours before plugging
into the mains.
Do not insert any objects into ventilation openings.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths,
curtains.
Mount the amplifier in vertical position with RF input connectors underneath. The amplifier must be fixed with steel screws
Ø 4-5 mm. The screws are not included in a package.
From top, front and bottom of installed amplifier must be at least 10 cm free space.

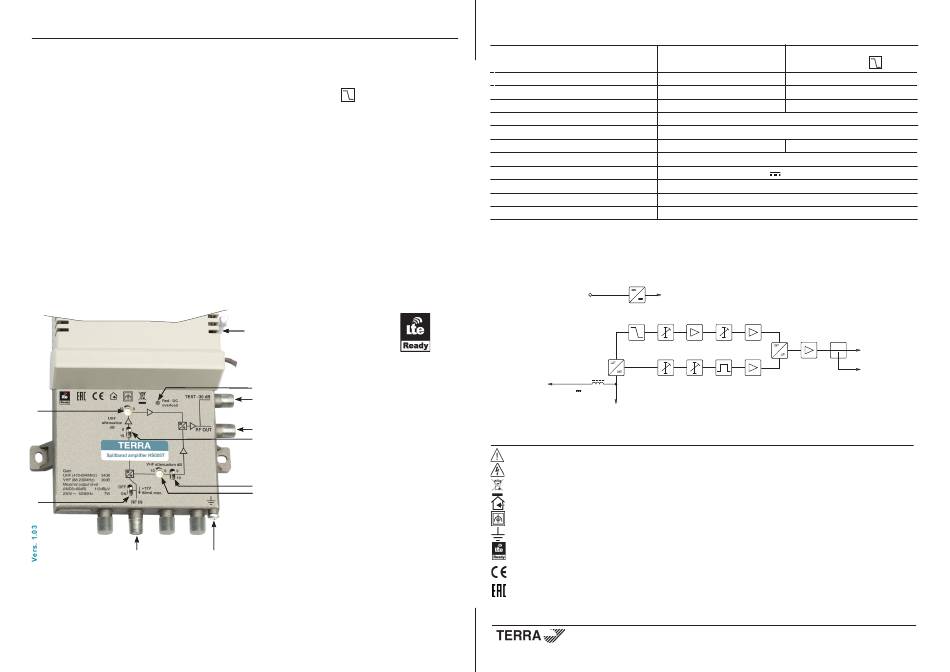

External view

6
6
8
8
1
1

INSTALLATION INSTRUCTIONS

Read the product description and safety instruction first.
Installation of system according standard IEC60728-11 ensures safety of personnel and prevents apparatus against
damaging due to lightning or other sources of overvoltage surges.
Gain of every sub-band can be adjusted with screwdriver (11). The gain increases up to 10 dB by fine turning regulators
(6, 7) clockwise in every sub-band and an additional 10 dB by switching switches (4, 5).
Power feed for external equipment is turned on and off by switch (8). It has short circuit and overload protection. In normal
conditions power indicator (10) glows green. If short circuit or overload in external powered equipment is detected - glows red.
.
11
11
10
10
1. RF IN - RF signal input connector
2
2
2. TEST -30 dB - -30 dB output test point
3. RF OUT - RF signal output connector
4, 5. 10 dB gain switches (10 dB attenuation
3
3
for each sub-band)
4
4
6, 7. 10 dB fine tuning gain regulators
for each sub-band
8. Switch to turn on/off the power feed for external
equipment
9. Functional ground clamp
5
5
7
7
10. Power indicator
11. Screwdriver
9
9

Technical characteristics

Frequency range
Gain
Flatness
Gain adjustment
Maximal output level
Input and output return loss
Noise figure
Output test point
DC feeding for external equipment
Supply voltage limit values, power consumption*
Operating temperature range
Dimensions/Weight (packed)
* with external DC loading

Structure diagram

230 V~
DC
LTE
-10/0 dB
UHF
0ø 10 dB
-
VHF
DC 12 V
60 mA, max.
RF IN
Caution.
Risk of electric shock.
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled or discarded
according to applicable local and national regulations.
Equipment intended for indoor usage only.
Equipment is double insulated from the mains, with functional earthing.
Functional earthing. Connect to the main potential equalization.
The device has integrated LTE filter.
TERRA confirms, that this product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN60065
and RoHS norm EN50581.
TERRA confirms, that this product is in accordance with Custom Union Technical Regulations: "Electromagnetic compatibility
of technical equipment" CU TR 020/2011, "On safety of low-voltage equipment" CU TR 004/2011.
Draugystes str. 22, LT-51256 Kaunas, Lithuania, tel.: +370 37 - 31 34 44, fax: +370 37 - 31 35 55
E-mail: sales@terraelectronics.com, http://www.terraelectronics.com
VHF
UHF
88-230 MHz
470-694 MHz
30 dB
34 dB
± 1 dB
± 0.5 dB
20 dB
20 dB
IMD3=60 dB (DIN45004B) 115 dBµV, IMD3=60 dB 112 dBµV
> 10 dB
< 5 dB
< 4 dB (600 MHz)
-30 dB
12 V
60 mA max.
198-250 V~ 50/60 Hz 7 W
-20
÷ +50
C
o
o
135x180x52 mm/0.7 kg
0ø 10 dB
-
-10/0 dB
RF OUT
test
-30 dB
