TelcoBridges TMG5800 Quick Installation Manual

1

Items not included in this box that you will need:

?
Two AC power cords
?
19" equipment rack
2

In the box, you will find:

?
One TMG5800
?
One set of mounting brackets with screws
?
SCSI Cables and Patch Panels, if applicable
?
Three RJ45 Ethernet Straight Cables (male-male)
?
One warranty sheet
?
One packing slip
? One TMG5800 Quick Installation Guide
3
A) Install rack-mounting hardware on TMG5800
and install on equipment rack.
Attach Tmedia
Unit to Equipment
Rack
4

Connect to VoIP network.

TelcoBridges, On a Blade, System-Blade, TB-1+1 Solution, TB-16-E1/T1/J1, TB640-DS3, TB640-E1/T1/J1, TB640-OC3/STM-1, TB-8-E1/T1/J1, TB-IVR Mezzanine, TB-Multi-Blade, TB-Multi-Blade Mezzanine, TB-N+1-15 Solution,
TB-N+1-3 Solution, TB-StreamServer, TBVideo,TB-VoIP Mezzanine, TM-1000 Network Probe, Tmedia, TMP6400, TMG5800, TMG3200, TMS1600, TMP800, TMG800 are trademarks of
All other trademarks are property of their owners. Information subject to change without notice.

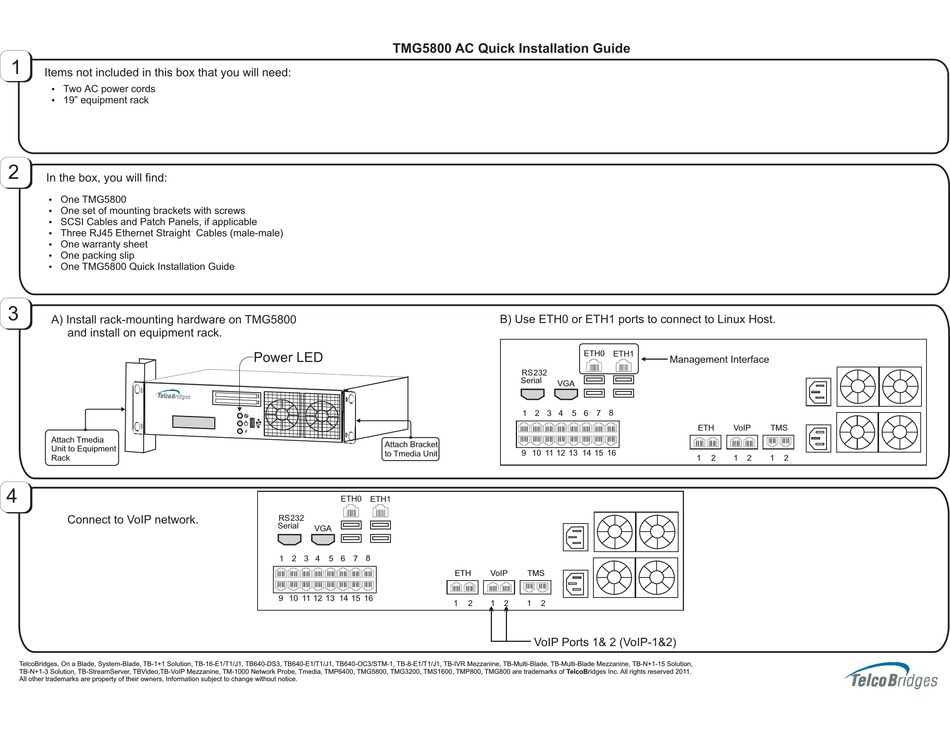

TMG5800 AC Quick Installation Guide
Power LED
Attach Bracket
to Tmedia Unit
ETH0 ETH1
RS 232
Serial
VGA
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
B) Use ETH0 or ETH1 ports to connect to Linux Host.
ETH0 ETH1
RS 232
Serial
VGA
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
ETH VoIP TMS
1 2 1 2 1 2
VoIP Ports 1& 2 (VoIP-1&2)
TelcoB ridges Inc. All rights reserved 2011.
Management Interface
ETH VoIP TMS
1 2 1 2 1 2
