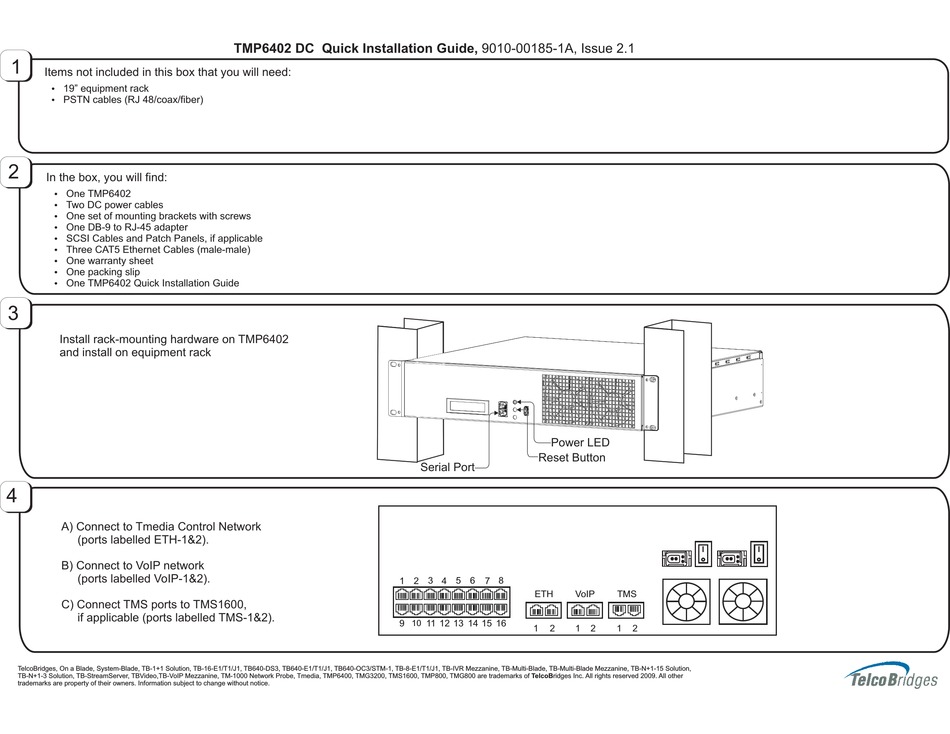

TelcoBridges TMP6402 DC Quick Installation Manual

1
Items not included in this box that you will need:
?
19" equipment rack
?
PSTN cables (RJ 48/coax/fiber)
2
In the box, you will find:
?
One TMP6402
?
Two DC power cables
?
One set of mounting brackets with screws
?
One DB-9 to RJ-45 adapter
?
SCSI Cables and Patch Panels, if applicable
? Three CAT5 Ethernet Cables (male-male)
?
One warranty sheet
?
One packing slip
?
One TMP6402 Quick Installation Guide
3
Install rack-mounting hardware on TMP6402
and install on equipment rack
4
A) Connect to Tmedia Control Network
(ports labelled ETH-1&2).
B) Connect to VoIP network
(ports labelled VoIP-1&2).
C) Connect TMS ports to TMS1600,
if applicable (ports labelled TMS-1&2).
TelcoBridges, On a Blade, System-Blade, TB-1+1 Solution, TB-16-E1/T1/J1, TB640-DS3, TB640-E1/T1/J1, TB640-OC3/STM-1, TB-8-E1/T1/J1, TB-IVR Mezzanine, TB-Multi-Blade, TB-Multi-Blade Mezzanine, TB-N+1-15 Solution,
TB-N+1-3 Solution, TB-StreamServer, TBVideo,TB-VoIP Mezzanine, TM-1000 Network Probe, Tmedia, TMP6400, TMG3200, TMS1600, TMP800, TMG800 are trademarks of
trademarks are property of their owners. Information subject to change without notice.
TMP6402 DC Quick Installation Guide, 9010-00185-1A, Issue 2.1
1
9 10
Power LED
Reset Button
Serial Port
2 3 4 5 6 7 8
ETH VoIP
11 12 13 14 15 16
1 2 1 2
TelcoB ridges Inc. All rights reserved 2009. All other
TMS
1 2
