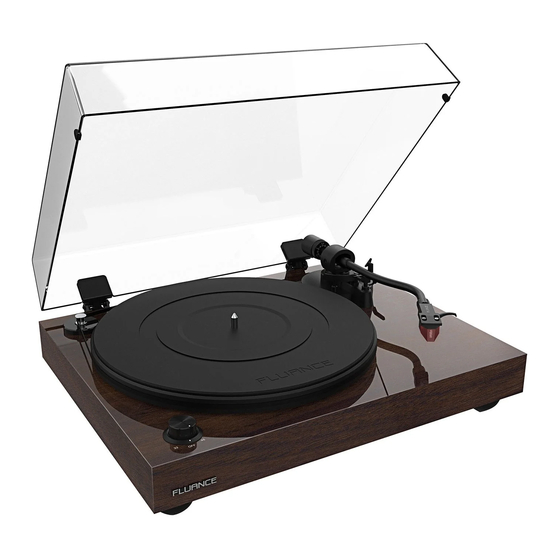

Fluance Serious Performance RT83 User Manual
Reference high fidelity vinyl turntable
Hide thumbs
Also See for Serious Performance RT83:
- User manual (24 pages) ,
- Stylus replacement/upgrade manual (12 pages) ,
- User manual
Subscribe to Our Youtube Channel
Related Manuals for Fluance Serious Performance RT83
Summary of Contents for Fluance Serious Performance RT83

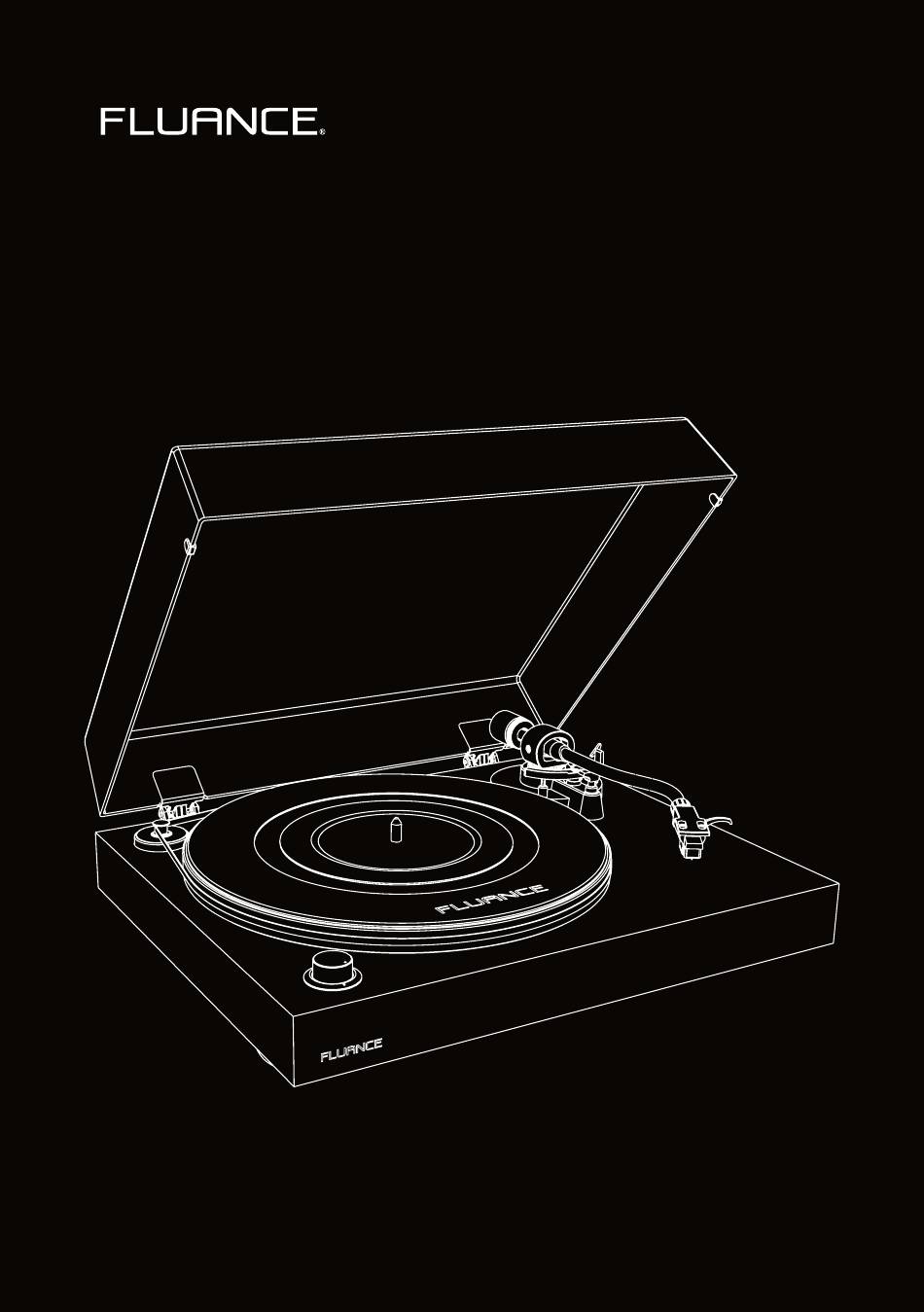

- Page 1 RT82, RT83, RT84, RT85 Reference High Fidelity Vinyl Turntable User Manual v2.4 Serious Performance Fluance.com ™...
-
Page 2: Table Of Contents Introduction
Fluance RT82, RT83, RT84, RT85 User Manual Introduction Fluance believes everyone should experience audio in its truest form, recreating the performance the way the artist intended. Utilizing only superior components and expert audio engineering, their products are a testament to the performance that can be achieved when a passion for music takes center stage. -
Page 3: Table Of Contents
Fluance RT82, RT83, RT84, RT85 User Manual Table Of Contents Introduction What’s Included Components and Connections First Time Setup Step One: Installing the Platter Step Two: Installing the Counterweight Step Three: Installing the Headshell Step Four: Installing the Dust Cover... -
Page 4: What's Included
Fluance RT82, RT83, RT84, RT85 User Manual What’s Included Turntable with Platter with Rubber Headshell with Dust Cover Rubber Belt Turntable Mat Stylus RT82/RT83/RT84 - Metal RT82/RT83/RT84 Only RT82 - OM 10 RT85 - Acrylic RT85 - Mat Not Included... -
Page 5: Components And Connections
Fluance RT82, RT83, RT84, RT85 User Manual Components and Connections Platter Cueing Lever Motor Pulley 12. Tonearm Lock Motor Pulley Cap 13. Tonearm Rubber Belt 14. Headshell & Stylus Spindle 15. RCA Audio Outputs Rubber Turntable Mat 16. Ground Terminal (RT82/RT83/RT84 Only) 17. -
Page 6: First Time Setup
Fluance RT82, RT83, RT84, RT85 User Manual First Time Setup Step One: Installing the Platter Remove the protective packaging and Place the motor pulley cap over the ensure the turntable is placed on a motor pulley. Ensure the arrows are sturdy and level surface. -
Page 7: Step Two: Installing The Counterweight
Fluance RT82, RT83, RT84, RT85 User Manual Step Two: Installing the Counterweight Secure the tonearm using the Slide the counterweight onto the end tonearm lock. of the tonearm with numbers facing forward until it clicks and is fully installed on the tonearm. -
Page 8: Step Four: Installing The Dust Cover
Fluance RT82, RT83, RT84, RT85 User Manual Step Four: Installing the Dust Cover Important: Place dust cover on a soft surface to avoid scratching it. Install the hinges on the provided grooves located on the back of the dust cover. -
Page 9: Step Five: Leveling The Turntable
Fluance RT82, RT83, RT84, RT85 User Manual Step Five: Leveling the Turntable This turntable features 3 adjustable feet to ensure the turntable is level regardless of the surface the turntable is resting upon. Lower Raise Turntable Turntable Bubble Level Adjustable Feet Use the table below with the included bubble level to adjust the feet and level the turntable. -
Page 10: Step Six: Balancing The Tonearm
Fluance RT82, RT83, RT84, RT85 User Manual Step Six: Balancing the Tonearm Important! Complete all steps for balancing the tonearm. Incorrect tonearm balancing can cause damage to the stylus and to your www.fluance.com/support records. For additional assistance go to to watch a tutorial video for this process. - Page 11 Fluance RT82, RT83, RT84, RT85 User Manual Step Six (Continued): Balancing the Tonearm Use the chart below to determine the recommended tracking force for your cartridge. Rotate the entire counterweight counterclockwise until the indicator ring is set to the correct value on the center line. (fig.1) Set the anti-skating control value to match the recommended tracking force.
-
Page 12: Step Seven: Connecting The Rca And Ground Cables
Ensure the cable colors are matched to the RCA connector colors. Note: The included RCA cable is a high quality cable with a <90pF capacitance rating. For best performance it is recommended that any other RCA connections use a similarly rated cable. The Fluance RCA cable is available at www.fluance.com/turntable-accessories... -
Page 13: Step Nine: Playing A Record
Break In Period To experience the peak performance of your turntable, it is recommended to allow the cartridge to break in. The break in period for cartridges included with Fluance turntables is 20 hours of normal playback. Auto Stop Function The auto stop function is designed to extend the life of your stylus. -
Page 14: Maintenance
Fluance RT82, RT83, RT84, RT85 User Manual Maintenance Replacing the Stylus Use the chart below to ensure you replace your stylus with the correct model. www.fluance.com/turntable-accessories Replacement stylus and instructions are available at Model Cartridge Stylus RT82 OM 10 Stylus 10 E... -
Page 15: Parts And Accessories
Fluance RT82, RT83, RT84, RT85 User Manual Parts and Accessories Replacement parts and turntable accessories are available at www.fluance.com/turntable-accessories Part Number Description PA10 High Fidelity Phono Preamp VB52 Vinyl Record & Stylus Cleaning Kit AP03 Frosted Acrylic Platter BL21 Bubble Level... -
Page 16: Troubleshooting
Fluance RT82, RT83, RT84, RT85 User Manual Troubleshooting Turntable Not Spinning • Turn the speed selection knob to 33 or 45 (power LED should light up). Lift the tonearm over the platter and it should start spinning. • The turntable should be connected to a known good power outlet and the power cable should be securely inserted into the unit. - Page 17 The turntable does not include an internal preamp so an external preamp or amplifier with PHONO input must be used with the turntable. The Fluance High Fidelity Phono Preamp (PA10) is designed for the Reference Series turntables and is available on www.fluance.com.
-
Page 18: Specifications
Fluance RT82, RT83, RT84, RT85 User Manual Specifications Specifications RT82 RT83 RT84 RT85 RT85N Cabinet Specifications Material Dust Cover Yes - Tinted Turntable Specifications Drive System Belt Drive Motor DC Motor with Servo Controller Motor Isolation Seven-Point Rubber Isolation with Decoupling Isolation Ring... - Page 19 Fluance RT82, RT83, RT84, RT85 User Manual Specifications RT82 RT83 RT84 RT85 RT85N Load Impedance/ Ohms/200 47k Ohms/150-300 pF Ohms/100 Capacitance - 500 pF Output Voltage 4.0 mV 5.5 mV 5.5 mV 5.5 mV 5.0 mV Cartridge Weight 5 grams 7.2 grams...
-
Page 20: Warranty Information
This warranty does not cover the shipping cost, insurance, or any other incidental charges. Products shipped for warranty service must be pre-paid by the customer, and Fluance will cover the cost to ship the repaired or replaced product back to the customer. -
Page 21: Important Safety Instructions
Fluance RT82, RT83, RT84, RT85 User Manual Important Safety Instructions WA R N I N G WARNING: RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT DO NOT OPEN EXPOSE THIS APPARATUS TO RAIN OR MOISTURE... -
Page 22: Fcc & Ic Information
Fluance RT82, RT83, RT84, RT85 User Manual FCC & IC Information WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture. Electrical equipment should NEVER be kept or stored in damp environments. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 23: Cartridge Alignment Protractor
Fluance RT82, RT83, RT84, RT85 User Manual Correct cartridge alignment ensures the stylus is positioned properly relative to the grooves on the record. Incorrect alignment can cause distortion and can also cause unwanted wear and tear on your stylus. Follow... - Page 24 Fluance.com...
