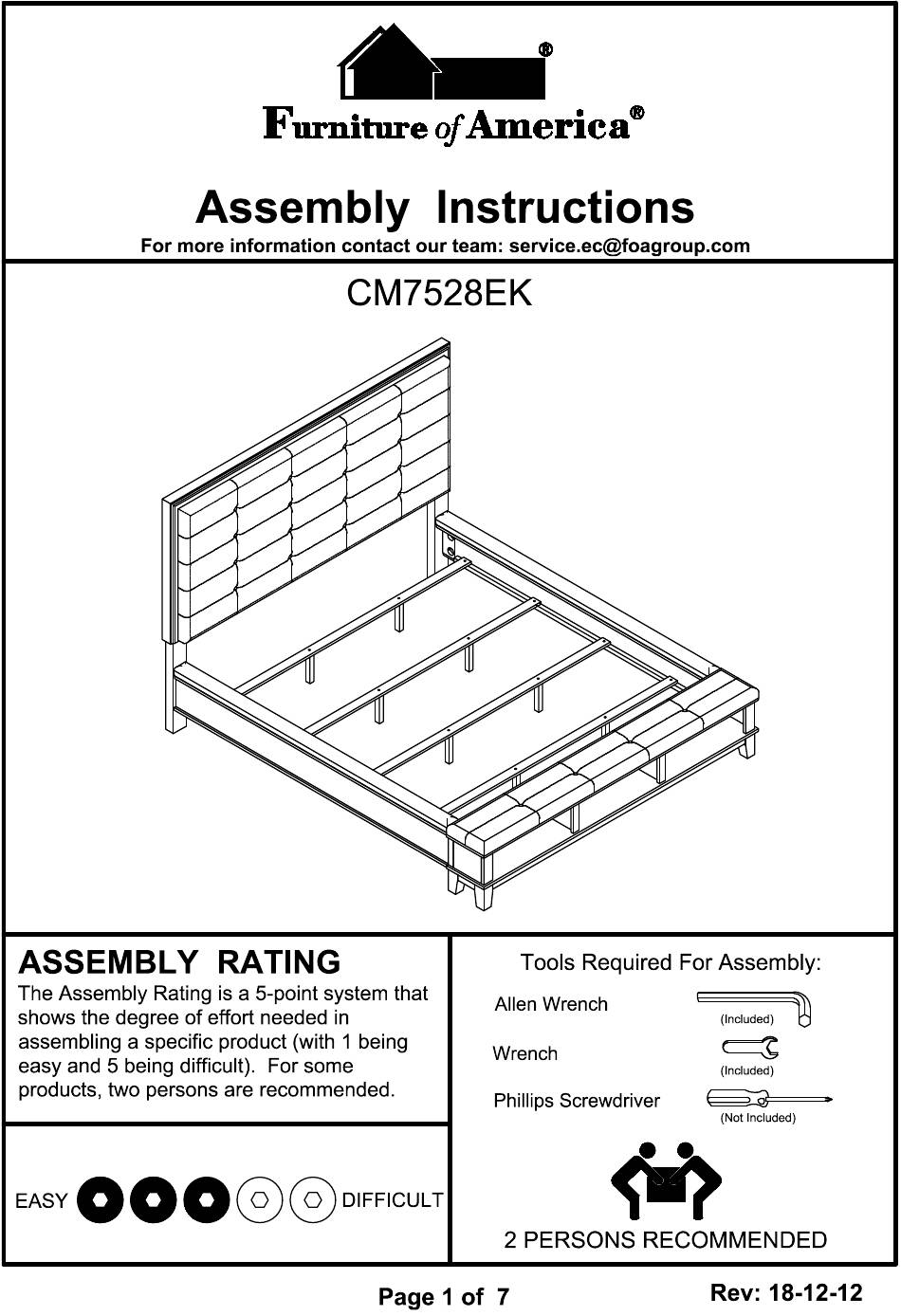

Assembly Instructions
EASY
DIFFICULT
Page 1 of 7
ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product
(with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
CM7528EK
2 PERSONS RECOMMENDED
Tools Required For Assembly:
For more information contact our team: service.ec@foagroup.com
Rev: 18-12-12
Allen Wrench
(Included)
Phillips Screwdriver
Wrench
(Included)
(Not Included)
Advertisement
Related Manuals for Furniture of America CM7528EK
Summary of Contents for Furniture of America CM7528EK
- Page 5 Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#C,D). Attach support leg (#5) to the footboard (#3), then adjust the leveler on the support leg (#5) according to ground level. Align legs (#4) to the footboard (#3), then secure by using bolts (#B) with washers (#C,D).
- Page 6 Attach threaded studs (#F) to the headboard (#1) and footboard (#3), then align the side rails (#6) to the threaded studs (#F) attached to the headboard (#1) and footboard (#3). Secure by using hex nut (#H) with washers (#G). Attach support legs (#8) to the slats (#7). Adjust the levelers on the support legs (#8) according to ground level.
- Page 7 Align slats (#7) to the side rails (#6), then secure by using screws (#J).
