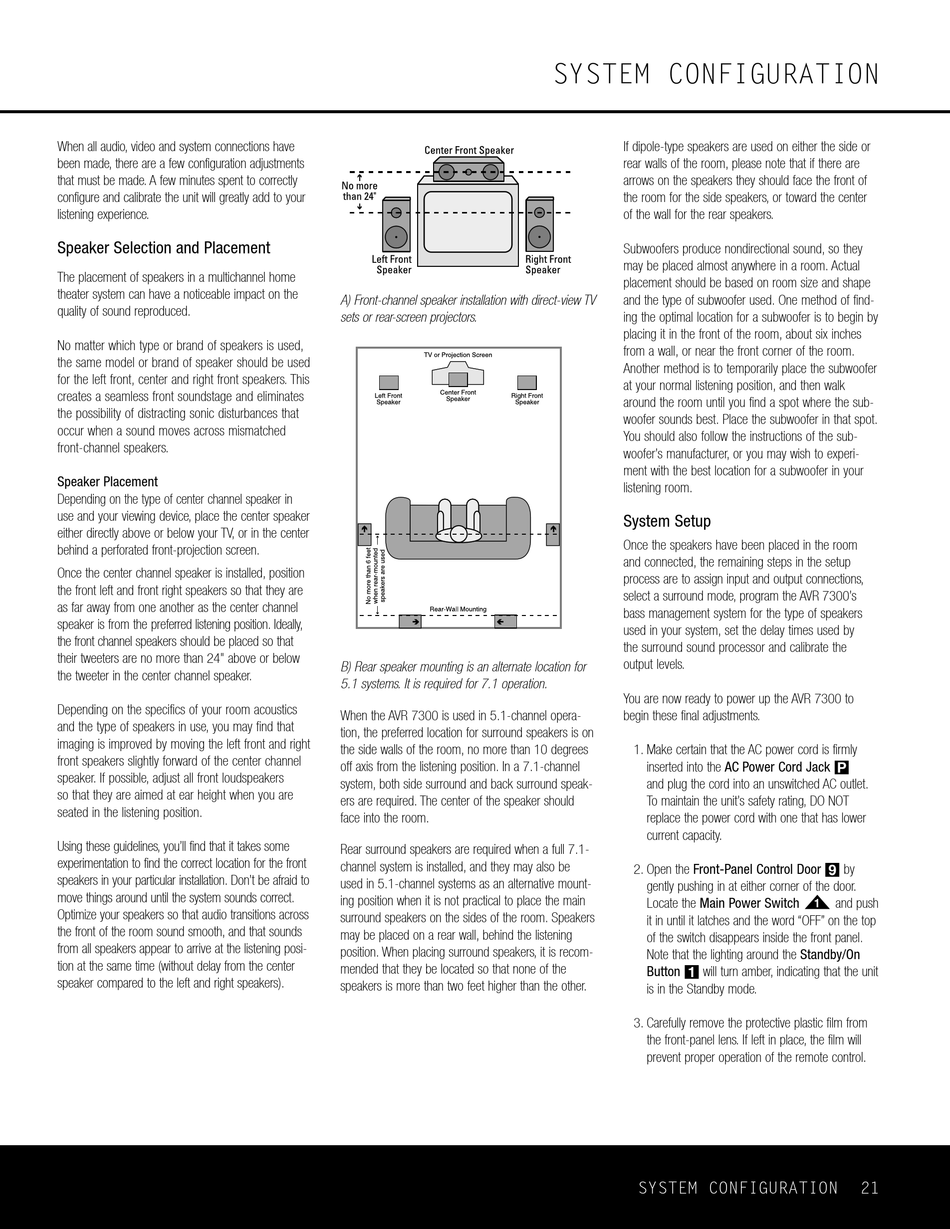

When all audio, video and system connections have
been made, there are a few configuration adjustments
that must be made. A few minutes spent to correctly
configure and calibrate the unit will greatly add to your
listening experience.

Speaker Selection and Placement

The placement of speakers in a multichannel home
theater system can have a noticeable impact on the
quality of sound reproduced.
No matter which type or brand of speakers is used,
the same model or brand of speaker should be used
for the left front, center and right front speakers. This
creates a seamless front soundstage and eliminates
the possibility of distracting sonic disturbances that
occur when a sound moves across mismatched
front-channel speakers.
Speaker Placement
Depending on the type of center channel speaker in
use and your viewing device, place the center speaker
either directly above or below your TV, or in the center
behind a perforated front-projection screen.
Once the center channel speaker is installed, position
the front left and front right speakers so that they are
as far away from one another as the center channel
speaker is from the preferred listening position. Ideally,
the front channel speakers should be placed so that
their tweeters are no more than 24" above or below
the tweeter in the center channel speaker.
Depending on the specifics of your room acoustics
and the type of speakers in use, you may find that
imaging is improved by moving the left front and right
front speakers slightly forward of the center channel
speaker. If possible, adjust all front loudspeakers
so that they are aimed at ear height when you are
seated in the listening position.
Using these guidelines, you'll find that it takes some
experimentation to find the correct location for the front
speakers in your particular installation. Don't be afraid to
move things around until the system sounds correct.
Optimize your speakers so that audio transitions across
the front of the room sound smooth, and that sounds
from all speakers appear to arrive at the listening posi-
tion at the same time (without delay from the center
speaker compared to the left and right speakers).
A) Front-channel speaker installation with direct-view TV
sets or rear-screen projectors.
B) Rear speaker mounting is an alternate location for
5.1 systems. It is required for 7.1 operation.
When the AVR 7300 is used in 5.1-channel opera-
tion, the preferred location for surround speakers is on
the side walls of the room, no more than 10 degrees
off axis from the listening position. In a 7.1-channel
system, both side surround and back surround speak-
ers are required. The center of the speaker should
face into the room.
Rear surround speakers are required when a full 7.1-
channel system is installed, and they may also be
used in 5.1-channel systems as an alternative mount-
ing position when it is not practical to place the main
surround speakers on the sides of the room. Speakers
may be placed on a rear wall, behind the listening
position. When placing surround speakers, it is recom-
mended that they be located so that none of the
speakers is more than two feet higher than the other.

SYSTEM CONFIGURATION

If dipole-type speakers are used on either the side or
rear walls of the room, please note that if there are
arrows on the speakers they should face the front of
the room for the side speakers, or toward the center
of the wall for the rear speakers.
Subwoofers produce nondirectional sound, so they
may be placed almost anywhere in a room. Actual
placement should be based on room size and shape
and the type of subwoofer used. One method of find-
ing the optimal location for a subwoofer is to begin by
placing it in the front of the room, about six inches
from a wall, or near the front corner of the room.
Another method is to temporarily place the subwoofer
at your normal listening position, and then walk
around the room until you find a spot where the sub-
woofer sounds best. Place the subwoofer in that spot.
You should also follow the instructions of the sub-
woofer's manufacturer, or you may wish to experi-
ment with the best location for a subwoofer in your
listening room.

System Setup

Once the speakers have been placed in the room
and connected, the remaining steps in the setup
process are to assign input and output connections,
select a surround mode, program the AVR 7300's
bass management system for the type of speakers
used in your system, set the delay times used by
the surround sound processor and calibrate the
output levels.
You are now ready to power up the AVR 7300 to
begin these final adjustments.
1. Make certain that the AC power cord is firmly
inserted into the AC Power Cord Jack P
and plug the cord into an unswitched AC outlet.
To maintain the unit's safety rating, DO NOT
replace the power cord with one that has lower
current capacity.
2. Open the Front-Panel Control Door 9 by
gently pushing in at either corner of the door.
Locate the Main Power Switch
it in until it latches and the word "OFF" on the top
of the switch disappears inside the front panel.
Note that the lighting around the Standby/On
Button 1 will turn amber, indicating that the unit
is in the Standby mode.
3. Carefully remove the protective plastic film from
the front-panel lens. If left in place, the film will
prevent proper operation of the remote control.
