EsiWelma Sensigas URD20SE Quick Start Manual

Use
Operation
Ordering
05/10/2020
Sensigas
Gas detectors
Carbon dioxide (CO
ATEX II 2G Ex d IIC T6 Gb certified
11...28Vdc power supply.
Nondispersive infrared (NDIR) sensor designed for the detection of carbon dioxide
(CO ).
2
Up to three alarm thresholds plus sensing element fail.
LED on sensing element body to indicate operating status.
Automatic countdown of sensor life.
The URD20SE detectors are used to detect the presence of carbon dioxide (CO
areas classified as Zone 1.
It detects carbon dioxide leaks or emissions in industrial environments, hospitals,
fermentation plants, greenhouses, stables and, more in general, where carbon dioxide
is stored, generated or produced.
URD20SE sensors can be used in stand-alone mode with 4...20mA output or with an
optional voltage-free contact relay card having the following four digital outputs:
st
Pre-alarm, 1 alarm threshold, 2
If there is a gas leakage, the detector compares the measured concentration value
with the threshold limit setpoints and energises the associated relays. Information on
the measured concentration value is always at the 4...20mA output.
To order, simply state the part number: URD20SE.
For special versions, on request, please contact Customer Service.
EW0826D1_en – rev. A
Gas detection systems for industrial environments
®
)
2
nd
alarm threshold, Sensor fail.

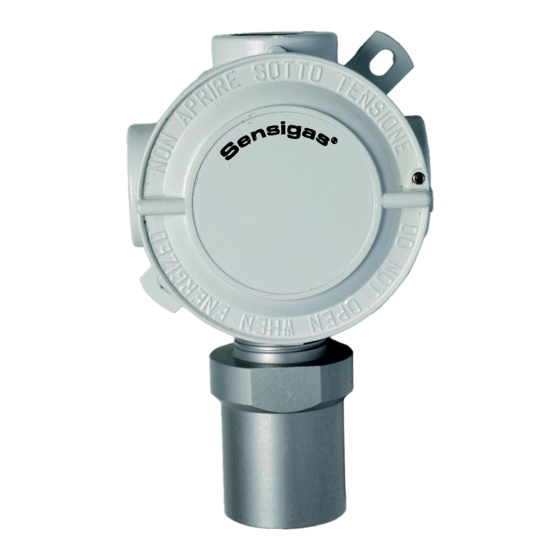

URD20SE
), in
2
CO gas detectors – URD20SE
2
1/8
