EsiWelma Sensigas URD20SL Quick Start Manual

Use
Operation
Ordering
EsiWelma Srl
24/09/2010

Gas detectors

Carbon dioxide (CO
IP55 protection rating
11...28Vdc power supply.
Nondispersive infrared (NDIR) sensor designed for the detection of carbon dioxide
(CO ).
2
Up to three alarm thresholds plus sensing element fail.
LED on sensing element body to indicate operating status.
Automatic countdown of sensor life.
The URD20SL detectors are used to detect the presence of carbon dioxide (CO
non-classified areas.
It detects carbon dioxide leaks or emissions in industrial environments, hospitals,
fermentation plants, greenhouses, stables and, more in general, where carbon dioxide
is stored, generated or produced.
URD20SL sensors can be used in stand-alone mode with 4...20mA output or with an
optional voltage-free contact relay card having the following four digital outputs:
st
Pre-alarm, 1 alarm threshold, 2
If there is a gas leakage, the detector compares the measured concentration value
with the threshold limit setpoints and energises the associated relays. Information on
the measured concentration value is always at the 4...20mA output.
To order, simply state the part number: URD20SL.
For special versions, on request, please contact Customer Service.
URD20SL_en.doc - rev. 0
Gas detection systems for industrial environments
)
2
nd
alarm threshold, sensor fail.

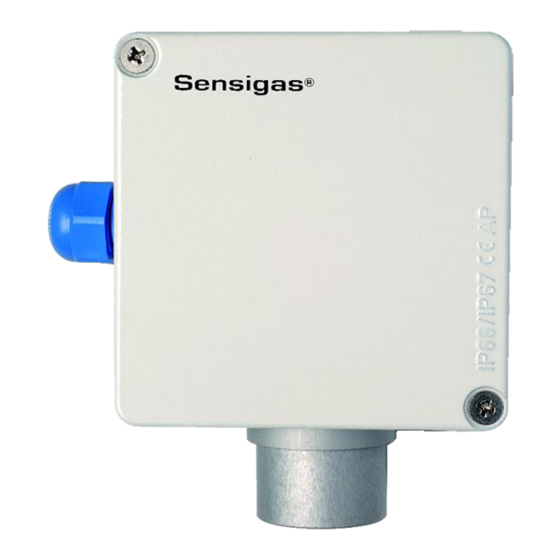

URD20SL
), in
2
CO
gas detectors – URD20SL
2
1/8
