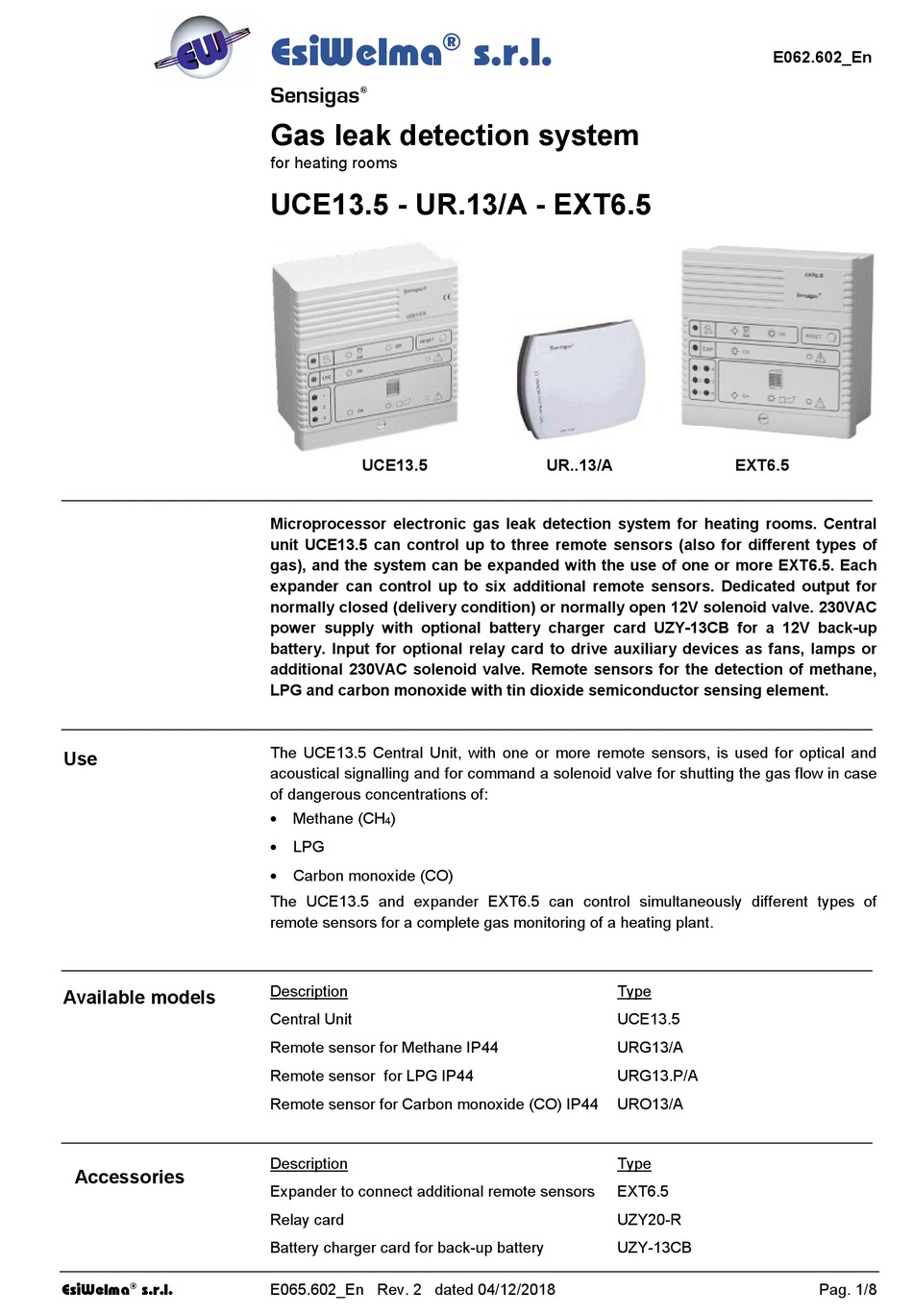

EsiWelma
®
s.r.l.
EsiWelma
®
Sensigas
®
Gas leak detection system
for heating rooms
UCE13.5 - UR.13/A - EXT6.5
UCE13.5
Microprocessor electronic gas leak detection system for heating rooms. Central
unit UCE13.5 can control up to three remote sensors (also for different types of
gas), and the system can be expanded with the use of one or more EXT6.5. Each
expander can control up to six additional remote sensors. Dedicated output for
normally closed (delivery condition) or normally open 12V solenoid valve. 230VAC
power supply with optional battery charger card UZY-13CB for a 12V back-up
battery. Input for optional relay card to drive auxiliary devices as fans, lamps or
additional 230VAC solenoid valve. Remote sensors for the detection of methane,
LPG and carbon monoxide with tin dioxide semiconductor sensing element.
The UCE13.5 Central Unit, with one or more remote sensors, is used for optical and
acoustical signalling and for command a solenoid valve for shutting the gas flow in case
of dangerous concentrations of:
Methane (CH
)
4
LPG
Carbon monoxide (CO)
The UCE13.5 and expander EXT6.5 can control simultaneously different types of
remote sensors for a complete gas monitoring of a heating plant.
Description
Central Unit
Remote sensor for Methane IP44
Remote sensor for LPG IP44
Remote sensor for Carbon monoxide (CO) IP44
Description
Expander to connect additional remote sensors
Relay card
Battery charger card for back-up battery
E065.602_En Rev. 2 dated 04/12/2018
s.r.l.
UR..13/A
Type
UCE13.5
URG13/A
URG13.P/A
URO13/A
Type
EXT6.5
UZY20-R
UZY-13CB
E062.602_En
EXT6.5
Pag. 1/8
Advertisement
Table of Contents
Related Manuals for EsiWelma Sensigas UR 13/A Series
Summary of Contents for EsiWelma Sensigas UR 13/A Series
- Page 1 EsiWelma ® s.r.l. E062.602_En Sensigas ® Gas leak detection system for heating rooms UCE13.5 - UR.13/A - EXT6.5 UCE13.5 UR..13/A EXT6.5 ______________________________________________________________________________________________ Microprocessor electronic gas leak detection system for heating rooms. Central unit UCE13.5 can control up to three remote sensors (also for different types of gas), and the system can be expanded with the use of one or more EXT6.5.
-
Page 2: Operation
It is possible to restart TEST phase in any moment by pushing RESET button for at least 10 s. Note: In case of damage for one or more sensors the central unit enter in alarm condition closing the solenoid valve and activating the auxiliary devices if connected. EsiWelma s.r.l. ® E065.602_En Rev. 2 dated 04/12/2018... -
Page 3: Mounting Instruction
Current local regulation must be observed. The devices must be directly connected to the mains and kept it permanently supplied. Check that UR.13./A sensors are suitable for the type of gas being measured and verify that the valve is suitable for the system characteristics. EsiWelma s.r.l. ® E065.602_En Rev. 2 dated 04/12/2018... - Page 4 _____________________________________________________________________________________________ UZY-13CB UZY20-R Fixing supports for auxiliary cards LEDs TEST / RESET push button Jumper for valve type selection: NC (factory preset) UCE13.5 End of line resistences 18K ¼ W EsiWelma s.r.l. ® E065.602_En Rev. 2 dated 04/12/2018 Pag. 4/8...
-
Page 5: Engineering Notes
Ambient condition temperature 0…+50°C (Operation) - 20…+70°C (Trasport) humidity 20…90% R.H.. without condensation Housing Self extinguising ABS Protection degree IP54 Dimensions 144 x 144 x 72 mm EsiWelma s.r.l. ® E065.602_En Rev. 2 dated 04/12/2018 Pag. 5/8... - Page 6 Contact rating Potentially free change over contact 5(3)A 250VAC Battery charger card UZY-13CB Voltage output 13,8VDC Charge current 0.5A max Battery (not supplied by EsiWelma) 12VDC 5…8Ah Back up charge with current limiter Conformity Regulations Low Voltage 2014/35/UE Electromagnetic Compatibility...
-
Page 7: Connection Diagram
Diagram 1: Central unit UCE13.5 with 1…3 UR..13/A sensors with 12VDC external buzzer and 12VDC solenoid valve. diagram _____________________________________________________________________ Diagram 2: Central unit UCE13.5 with 1…3 UR..13/A sensors with 12VDC external buzzer and 12VDC solenoid valve. Auxiliary cards UZY-13CB and UZY20-R. EsiWelma s.r.l. ® E065.602_En Rev. 2 dated 04/12/2018 Pag. 7/8... -
Page 8: Environmental Compatibility And Disposal
Use local depots and waste management companies, or refer to your supplier or manufacturer to return used products or to obtain further information on environmental compatibility and waste disposal. Due to our policy of continuous product improvement, specifications are subject to change without notice. EsiWelma s.r.l. ®...
