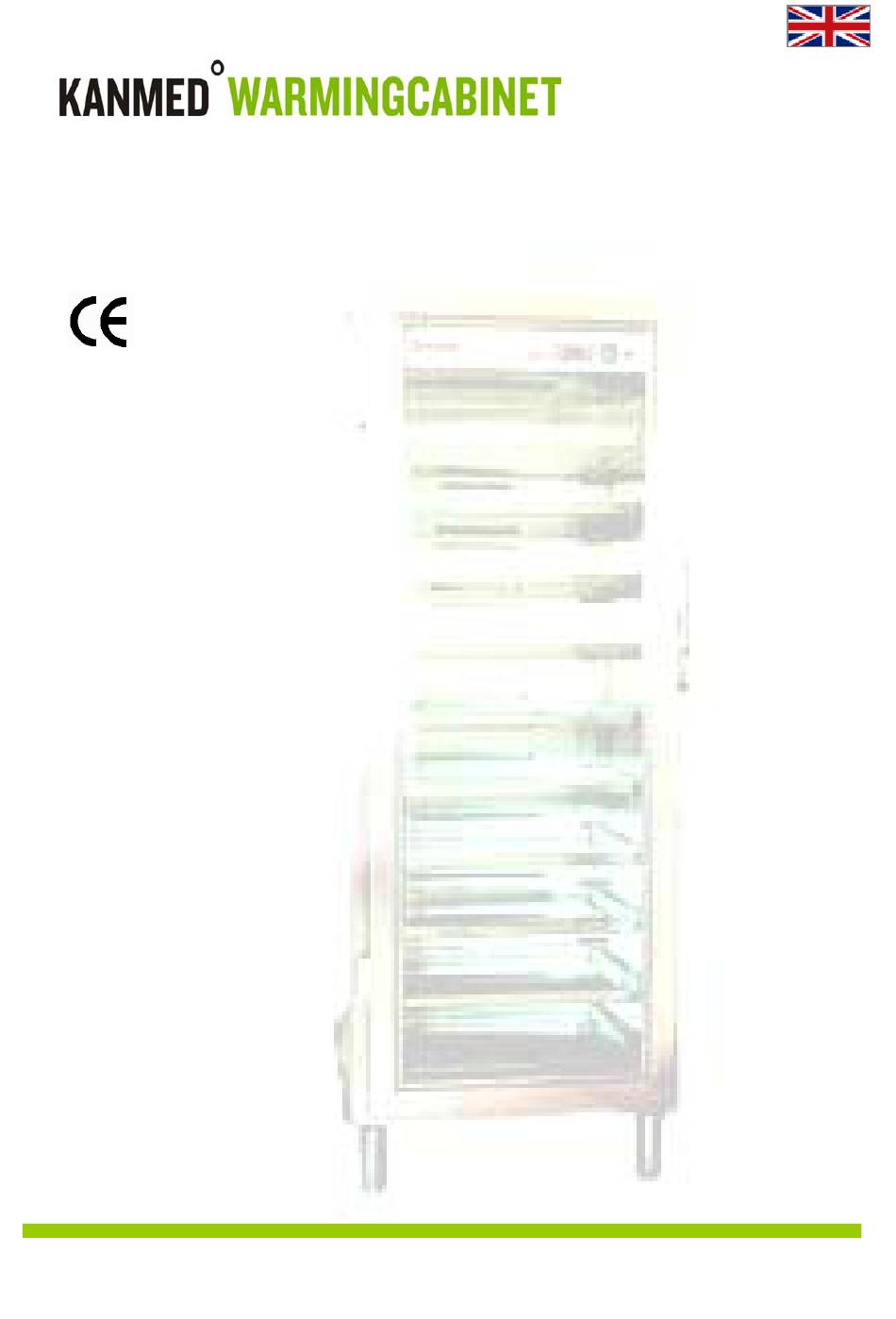

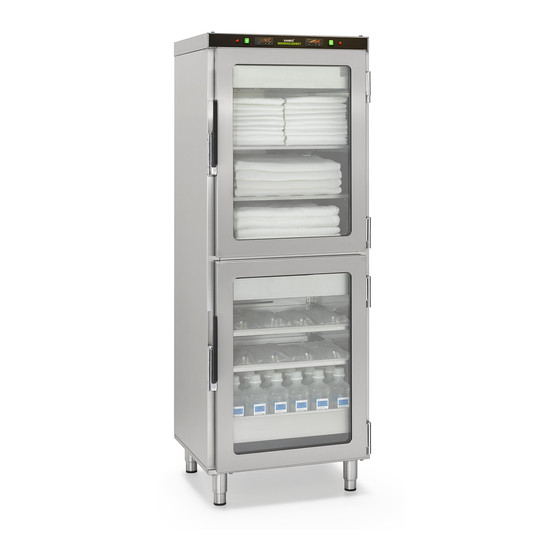

USER MANUAL AND TECHNICAL MANUAL
NOTE: This manual contains important information concerning safety and daily use as
well as maintenance instructions and should be stored for future use.
This manual is valid for all cabinets that are delivered after 2001.
Manufactured by:
KANMED AB
January 2004
PART NO: GE-1002-070/3
Advertisement
Table of Contents
Related Manuals for Kanmed GE-1380
Summary of Contents for Kanmed GE-1380
- Page 1 NOTE: This manual contains important information concerning safety and daily use as well as maintenance instructions and should be stored for future use. This manual is valid for all cabinets that are delivered after 2001. Manufactured by: KANMED AB January 2004 PART NO: GE-1002-070/3...
-
Page 2: Table Of Contents
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 2 of 16 TABLE OF CONTENTS SAFETY INSTRUCTIONS ..................... 3 GENERAL DESCRIPTION ....................4 DESCRIPTION OF FUNCTION ..................... 4 TECHNICAL DATA ........................ 5 UNPACKING AND PACKING LIST ..................6 INSTALLATION........................6 USING THE CABINET ...................... -
Page 3: Safety Instructions
KANMED Warning Cabinet GE-1380-XX is primarily intended for warming of Gel Pads, blankets, fluids, up to a temperature of 42°C KANMED Warning Cabinet shall be used according to this user manual and in accordance with normal hospital routines. GENERAL ADVICE Adjust the cabinet so that it is correctly positioned, vertically and horizontally. -
Page 4: General Description
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 4 of 16 GENERAL DESCRIPTION THE CABINET The cabinet is made of stainless steel and insulated in order to reduce heat loss to ambience and to reduce noise. For the same reason the door is double glassed. -
Page 5: Technical Data
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 5 of 16 TECHNICAL DATA ELECTRICAL DATA: Voltage 220-240 Volt AC Power max. 1200 Watt * Frequency 50 -60 Hz Fuses T 6,3A L250V PHYSICAL DATA Cabinet GE-1380 Height 175 cm... -
Page 6: Unpacking And Packing List
Page 6 of 16 UNPACKING AND PACKING LIST The cabinet is when shipped from KANMED carefully packed. Check for damages and report them immediately to your supplier. Damages reported after the cabinet has been brought into use are not accepted. - Page 7 USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 7 of 16 7.2 TEMPERATURE ADJUSTMENT AND INDICATION The display shows the actual working temperature in the cabinet as long as the ON/OFF switch is on and the door is closed.
-
Page 8: Maintenance And Trouble Shooting
The working temperature is regulated by the temperature regulator T1 and the over temperature protection by the sensors T2. When control, calibration of T1 and T2, their value is compared to the value of an external precision thermometer. ( for example the KANMED article Baywatch-01) The sensor T2 can be adjusted through a hole in the bottom of the heating compartment. - Page 9 8.2.2 OVER TEMPERATURE INFORMATION ABOUT TEMPERATURE MEASUREMENT AND CALIBRATION The temperature sensor T2 is a capillary thermostat. In the KANMED cabinet its hysteretic is 4°C max. When delivered T2 is set to 2°C above the maximum value of T1 ( 42°C). The...
-
Page 10: Accessories And Spare Parts
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 10 of 16 8.3 TROUBLE SHOOTING If the warming is not starting, check as follows: • Power cable connected (UK only - and plug fuse OK)? • Power in the wall socket? •... -
Page 11: Warranty
12 month from the date of delivery. The sole obligation of KANMED with respect to any such defect is limited to the repair with new or re-manufactured parts or, at the discretion of KANMED, replacement of the equipment or refunding of the purchase price. -
Page 12: Circuit Diagram For Cabinets Delivered Until 2003
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 12 of 16 CIRCUIT DIAGRAM for cabinets delivered until 2003 Connection socket 2. F1 Fuse 6,3 A 3. S1 Safety switch activated by the door 4. S2 Mains switch 5. T1 Temperature regulator 6. -
Page 13: Circuit Diagram For Cabinets Delivered From 2004
USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 13 of 16 CIRCUIT DIAGRAM for cabinets delivered from 2004 Connection socket 2. F1 Fuse 6,3A 4. S2 Main switch 5. T1 Temperature regulator 6. T2 Over temperature protection 7. L1 Warning lamp red –... - Page 14 USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 14 of 16...
- Page 15 USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 15 of 16...
- Page 16 USER and TECHNICAL MANUAL KANMED Warming Cabinet GE-2-1370 Page 16 of 16 KanMed AB Gårdsfogdevägen 18B S-168 66 BROMMA SWEDEN Tel +46 (0)8 564 80 630 Fax +46 (0)8 564 80 639 E-Mail: info@KANMED.se Home page: www.KANMED.se DISTRIBUTED BY:...
