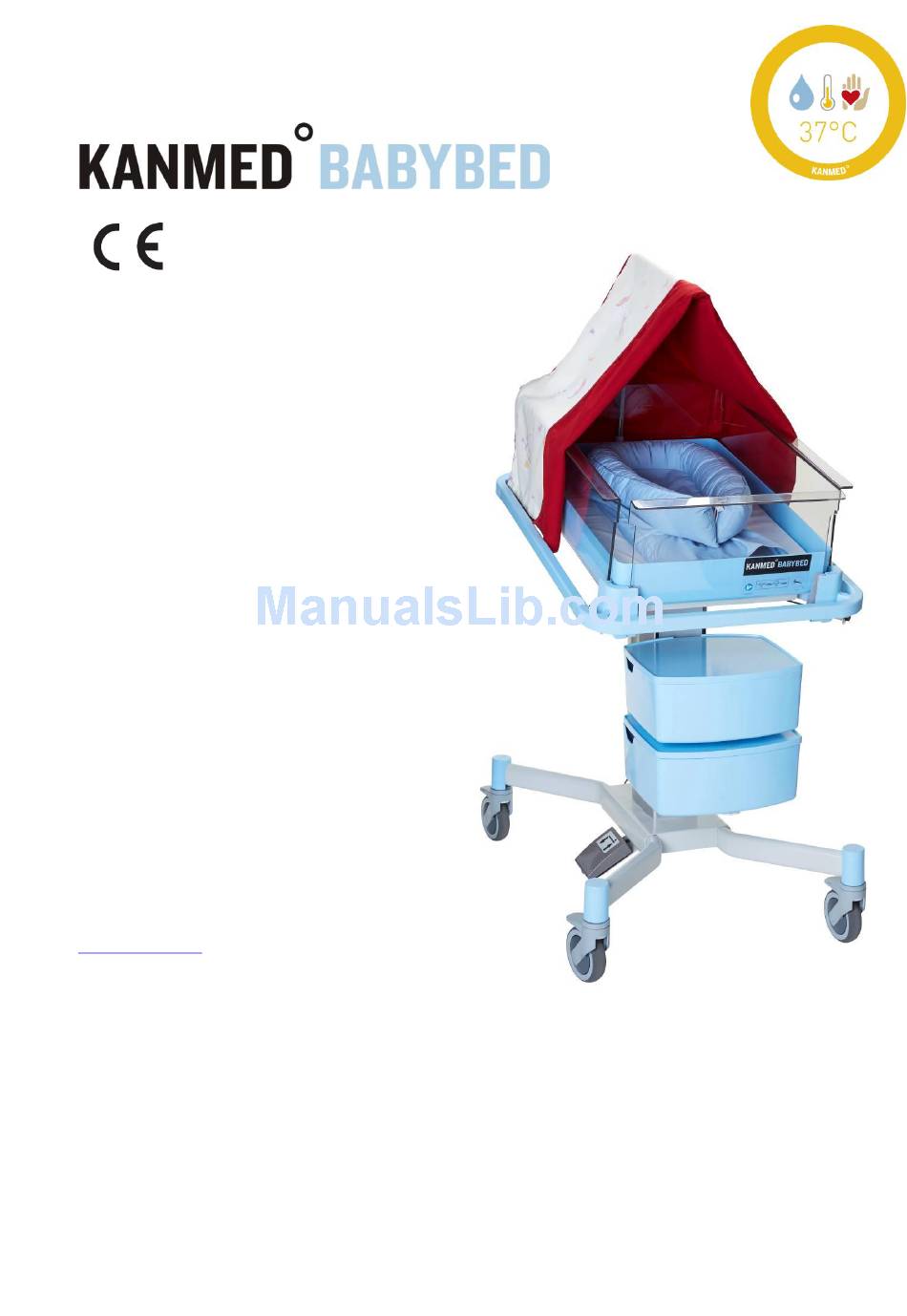

User Manual
Art no: BB100-401F-070 ver 3 Eng
2017-03-01
Caution
Please read this manual carefully.
Incorrect use may cause patient
or user injury.
Manufactured by:
Kanmed AB
www.kanmed.se
Distributed by:
This manual is valid for all BabyBeds that has the Red Stoppers in the side walls and
also valid for beds that has been upgraded to hydraulic tilt release and/or new side
walls with Red Stoppers.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kanmed BABYBED BB101
Summary of Contents for Kanmed BABYBED BB101
-
Page 1: User Manual
Please read this manual carefully. Incorrect use may cause patient or user injury. Manufactured by: Kanmed AB www.kanmed.se Distributed by: This manual is valid for all BabyBeds that has the Red Stoppers in the side walls and also valid for beds that has been upgraded to hydraulic tilt release and/or new side... - Page 2 User Manual BB100-400 /070 Contents 1 GENERAL DESCRIPTION / INTENDED USE ..................3 2 WARNINGS ..............................3 3 DESCRIPTION OF SYMBOLS........................4 4 GENERAL INSTRUCTIONS FOR USE ..................... 5 5 CLEANING ..............................10 6 REGULAR SAFETY CHECKS BEFORE USE ..................13 7 TROUBLE SHOOTING ..........................
-
Page 3: Warnings
1 Intended Use Intended Use The intended use of the Kanmed BabyBed is to provide an ideal ergonomic and safe Bed for premature and new born babies in a hospital environment. It is also intended to be used with the Kanmed BabyWarmer systems BW3 or BW-50. -
Page 4: Description Of Symbols
User Manual BB100-400 /070 • 3 Description of Symbols Read the user manual before use. Models available: BB100 Standard BabyBed BB101 Same but without rails BB400 BabyBed for Twins BB401 Same but without rails BB300 Standard BabyBed fixed height BB301 Same but without rails BB400F BabyBed for twins with fixed height... -
Page 5: Instructions For Use
4 Instructions for Use 4.1 First cleaning The Kanmed BabyBed and accessories must be cleaned according to your hospital routines. Please refer to section 5 Cleaning before use with a patient. See section 5 for mounting of side walls, etc. - Page 6 If children, relatives or patients are at risk of playing with the foot pedal, then disconnect the power. Make sure that the Kanmed BabyWarmer still has power. Do not block the movements when activating the electrical height adjustment.
- Page 7 Side Walls. Place the Mattress in the Bed. Other mattress types and homemade tents may void Kanmed legal responsibility. NOTE: The tent pole has 2 height positions. Please make sure you use the right tent pole. Stop screw position B100/101/300/301...
- Page 8 Having the Bed Tray loose allows you to lift it out for easy cleaning and for cleaning of the Bed Platform as well. In case you want the Baby Tray permanently fixed to the Bed Platform Kanmed can supply a special tape for this purpose.
- Page 9 4.12.1 BabyWarmer power cable The Kanmed BabyWarmer is connected to mains power by its own cable or by a special Short Cable (Order Number 800-0502) that is connected at the upper base at the Pillar – se...
-
Page 10: Cleaning
Inspect all parts for wear and strength before and after cleaning. Below is a list of cleaning and disinfection agents recommended by Kanmed. Using other agents and/or exaggerated cleaning may reduce the lifetime of some or all parts. Contact Kanmed with the product specification if in doubt. - Page 11 User Manual BB100-400 /070 5.4 Cleaning Side Wall Guides. The Side Wall Guides can easily be removed and cleaned. Side Wall Guides are marked left L and right R NOTE: Beds without side rails have no Side Wall Guides. It is possible to exchange the bed corners on beds that has side rails so that the Side Wall Guides are no longer needed 5.5 Putting Side Walls back in place.
- Page 12 5.6 Storage Boxes and Lids The Storage Boxes and Lids are cleaned and disinfected same way as the rest of the Bed. 5.7 Mattress Use a surface cleaning and disinfecting agents recommended by Kanmed above. 5.8 Tent See label for washing instructions.
-
Page 13: Trouble Shooting
Stability and integrity User Every day Ensure that the Bed is in good condition and stable and that all functions works correctly Kanmed BabyWarmer User See Kanmed BabyWarmer user manual Wheels / brakes User Before every use 7 Trouble shooting Symptom... -
Page 14: Technical Data
Expected Lifetime Kanmed warrants a safe lifetime of 10 years from first day of use. This is under the condition that the Kanmed BabyBed has been serviced according to the user and or service manual and that the unit has not been modified or changed in any way or for any reason. -
Page 15: Technical Section - Service And Maintenance
User Manual BB100-400 /070 9 Technical Section - Service and Maintenance NOTE: All spare parts used for replacement or repairs shall be supplied by Kanmed or its authorized distributor. The use of “non Kanmed permitted parts” will automatically reassign all safety responsibilities to the hospital. Only qualified personnel, biomed engineer or equivalent, shall attempt repairs. - Page 16 Corners to fit new Corners or Side Rails. Do not use any other screws than Kanmed part no 700-0880 because they will not have enough holding power. A screw can be screwed in and out about 6 times in the same plastic hole.
-
Page 17: Spare Parts/Accessories
BB103 Trendelenburg kit ±17 degrees New gas spring and top plate NOTE: Many other accessories and spare parts are available. Please check with your local supplier or on the Kanmed webpage www.kanmed.se Please contact your supplier for a price list. -
Page 18: Warranty Statement
5 years from the date of delivery. The warranty does not apply to plastic parts, mattresses, cables and tents. The sole obligation of Kanmed with respect to any such defect is limited to the repair with new or re-manufactured parts or, at the discretion of Kanmed, replacement of the equipment or refunding of the purchase price. - Page 19 User Manual BB100-400 /070 Page 19 of 20...
- Page 20 User Manual BB100-400 /070 Kanmed AB Gårdsfogdevägen 18B SE-168 67 BROMMA – Stockholm Sweden Telephone +46 8 56 48 06 30 Telefax +46 8 56 48 06 39 E-Mail: info@kanmed.se Web page: www.kanmed.se Distributed by: Page 20 of 20...
