Kanmed Operatherm OP3 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

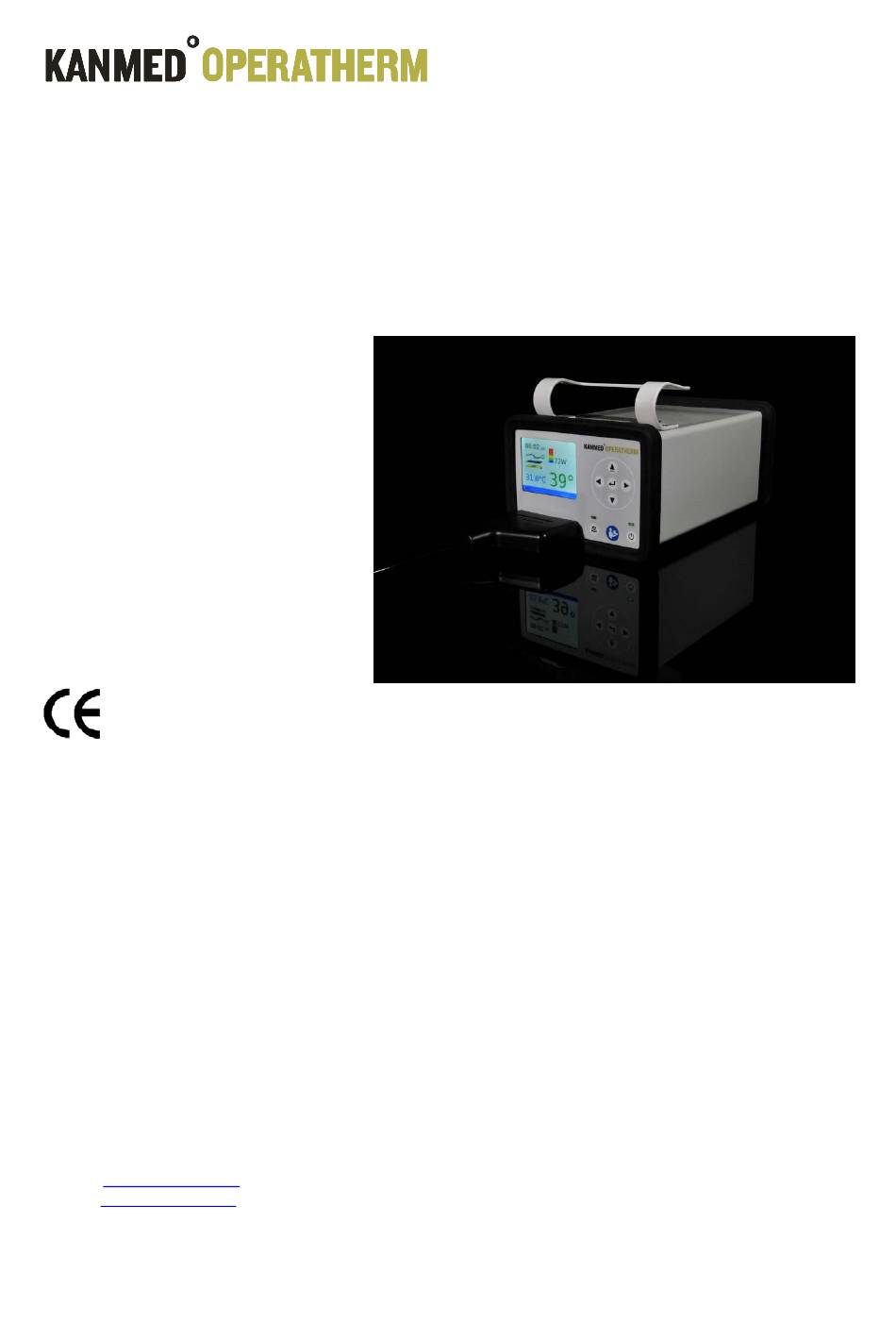

Service Manual
KANMED Operatherm OP3™
Manual no OP3-079/2
2010-02-09
0413
Caution
Incorrect use of heating
equipment may cause serious
injury.
Read this manual carefully.
Manufactured by:
KANMED AB
Gårdsfogdevägen 18B
This manual is valid for KANMED Operatherm OP3
SE-168 66 Bromma
system serial number 0001-08 and above, with
Software version 1.1 (or higher) and Service
Sweden
Software 1.3 (or higher).
Tel +46 8 56480630 Fax + 46 8 56480639
E-Mail
info@Kanmed.se
Subject to changes.
Web
www.Kanmed.se
