Collapsible Bollard Installation

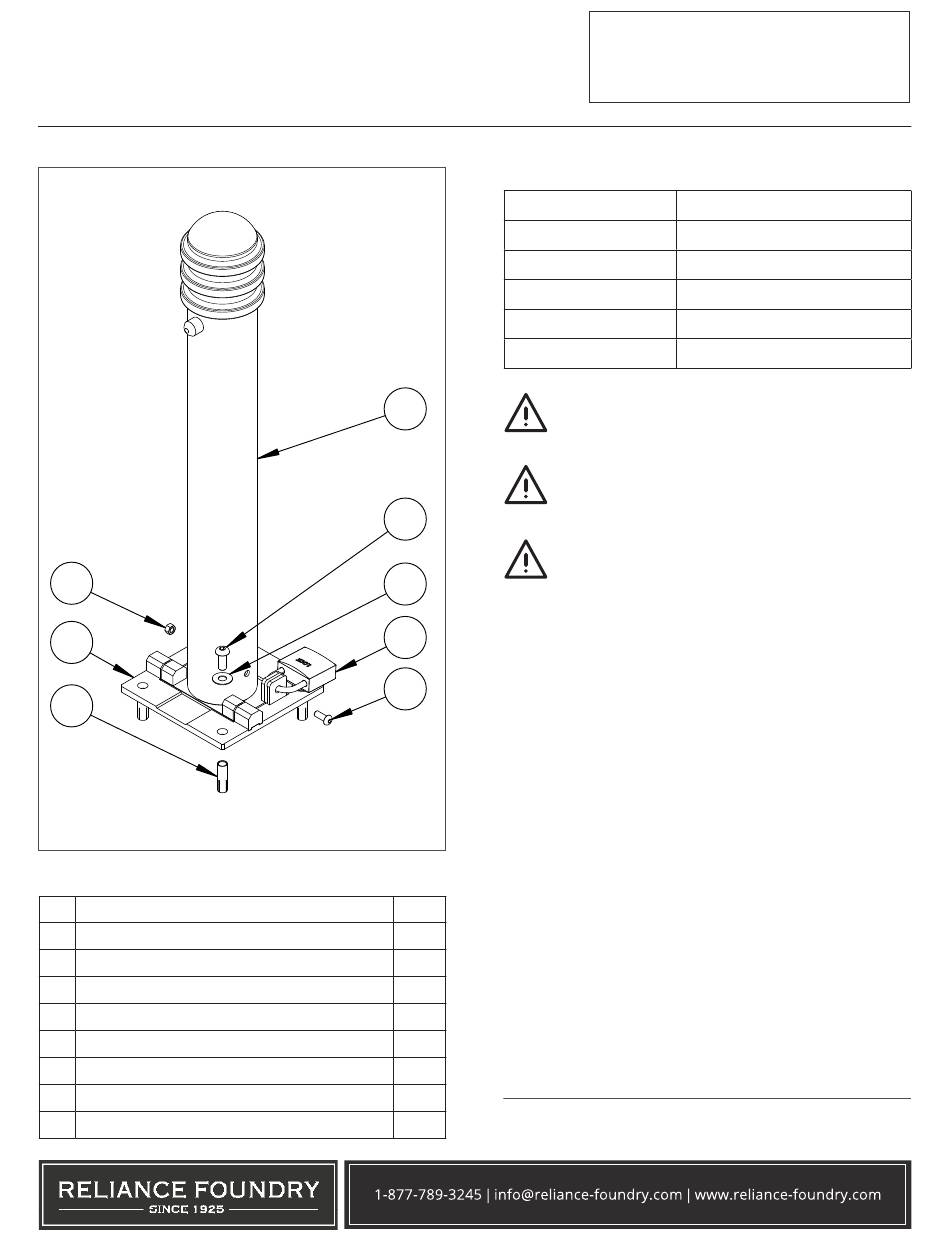

Bollards shown in the diagrams may not be the same model as the bollards shipped in this order. This does not affect the integrity of the installation.
4
2
7
Parts List
#
PART
1
Fold-Down Bollard
2
Fold-Down Base
3
Hexagon Socket Button Head Cap Bolt 3/8"
4
Hex Nut Nylon Lock 3/8"
5
Hexagon Socket Button Head Cap Bolt 1/2"
6
Stainless Steel Washer 1/2"
7
Drop-in Concrete Insert 1/2"
8
Padlock (optional)
Installation Equipment
5/8" Masonry Drill Bit
1/2" Insert Setting Tool
9/16" Wrench
5/16" Hex Key
7/32" Hex Key
Chalk
1
5
6
8
3
Before Installation
STEP 1: Always check for hazards such as water pipes,
gas lines, and underground wiring before digging.
QTY
1
STEP 2: Use a broom or pressure washer to clean the
1
concrete surface prior to bollard installation.
2
STEP 3: Study the site plans to locate and mark the
2
precise center point of each bollard. For secure
4
installation, ensure there is a minimum radius* of solid
4
concrete around each mark.
4
* Concrete insert manufacturers such as www.ucanfast.com
1
recommend a radius of 9"
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Fold-Down
Mounting
Hammer
Hammer Drill or Rotary Hammer
Broom/Pressure Washer
Vacuum
Level
Measuring Tape
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or
damaging bollard surfaces.
Once scratched, bollards cannot be repaired
to original form without re-finishing the entire
surface.
