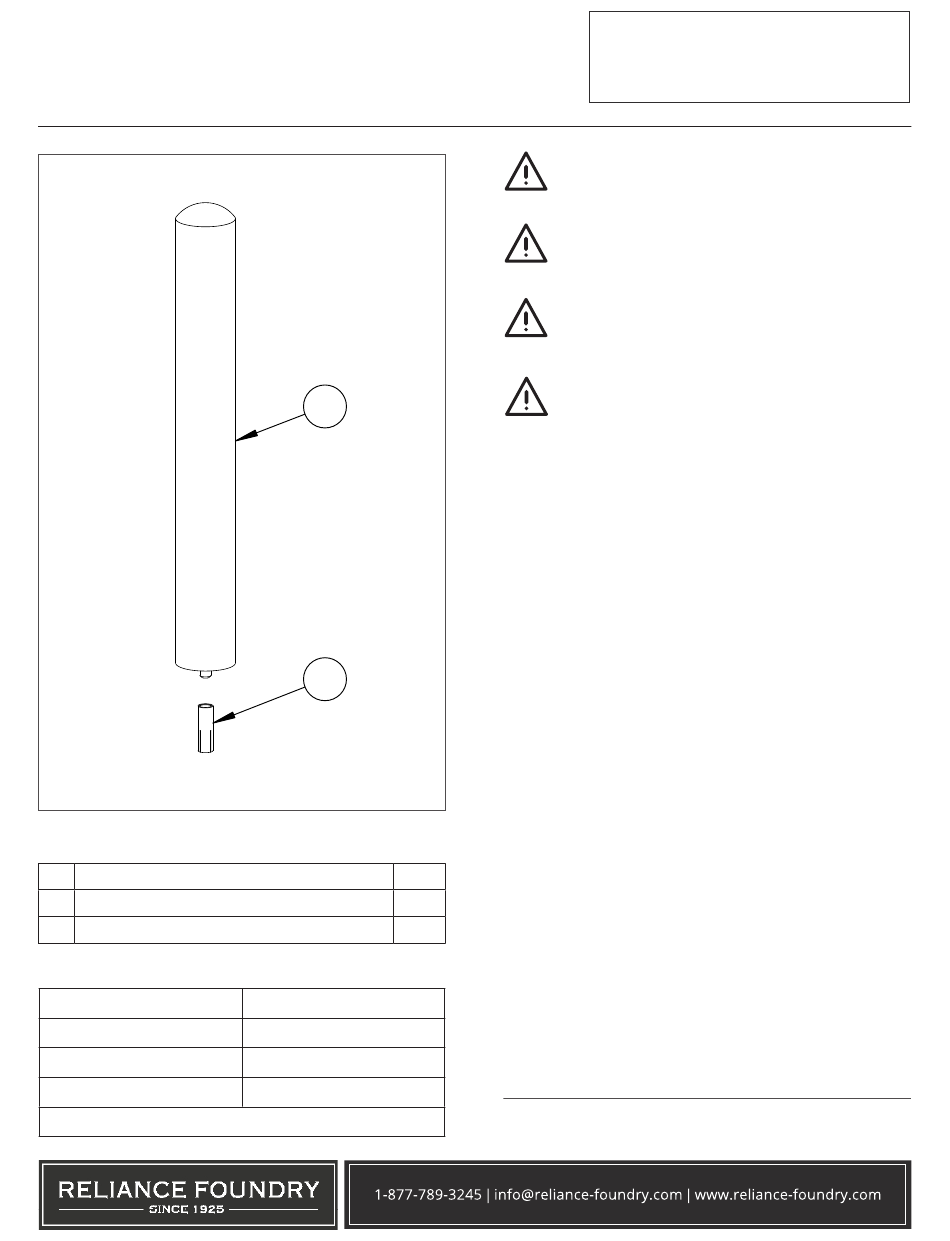

Bolt-Down Bollard Installation
Parts List
#
PART
1
Asset Protection Bollard
2
Drop-In Concrete Insert 3/4"
Installation Equipment
Measuring Tape
Strap Wrench
Broom/Pressure Washer
1" Masonry Drill Bit
3/4" Insert Setting Tool (or equivalent)
1
2
QTY
1
1
Vacuum
Chalk
Level
Hammer
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
R-7186/R-7187
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or
damaging bollard surfaces.
Once scratched, bollards cannot be repaired
to original form without re-finishing the entire
surface.
Take special care to protect the thread at the
bottom of the bollard.
Before Installation
STEP 1: Always check for hazards such as water pipes,
gas lines, and underground wiring before drilling.
STEP 2: Use a broom or pressure washer to clean the
concrete surface prior to bollard installation.
STEP 3: Study the site plans to locate and mark the
precise center point of each bollard. For secure
installation, ensure there is a minimum radius* of solid
concrete around each mark.
* Concrete insert manufacturers such as www.ucanfast.com
recommend a radius of 9"
