R-1009-12

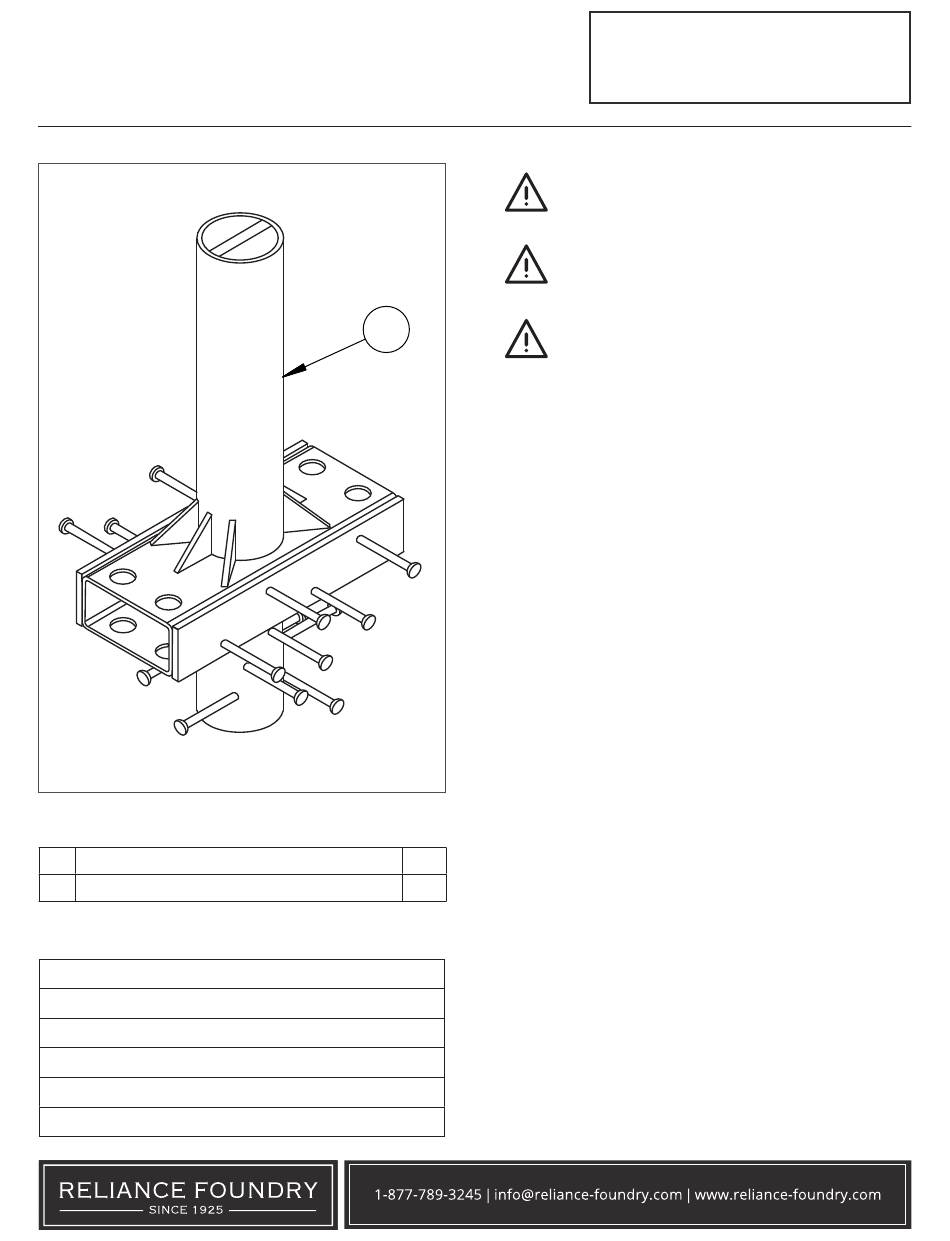

Crash-Rated Bollard Installation
Bollards shown in the diagrams may not be the same model as the bollards shipped in this order. This does not affect the integrity of the installation.
Parts List
#
PART
1
Crash-Rated Bollard
Installation Equipment
Dirt Tamper
Level
Metal Construction Pipe
Chalk/Marker
Measuring Tape
Shovel
1
QTY
1
Before Installation
STEP 1: Study the site plans and mark the intended
location of each bollard on the plan.
STEP 2: Always check for hazards such as water pipes,
gas lines, and underground wiring before digging. Note:
You may need a permit to dig to certain depths or in
certain locations.
1-877-789-3245 | info@reliance-foundry.com | www.reliance-foundry.com
Embedded
To protect the finish, keep bollards in original
packaging until exact moment of installation.
Handle with care to avoid scratching or damaging
bollard surfaces as abrasions will lead to rust.
Consider local soil conditions before proceeding
with bollard installation.
