HOMCOM 820-345V80 Instruction Manual page 6

Note: The wall mount fasteners included with this fireplace are for use ONLY with a
concrete walls. For wood walls, cinder blocks, or other wall types, consult a
professional for the best attachment methods.
STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole is as below
chat. Figure (A).
Framing Hole Size
Model Number
820-345V80BK
820-345V81BK
820-345V82BK

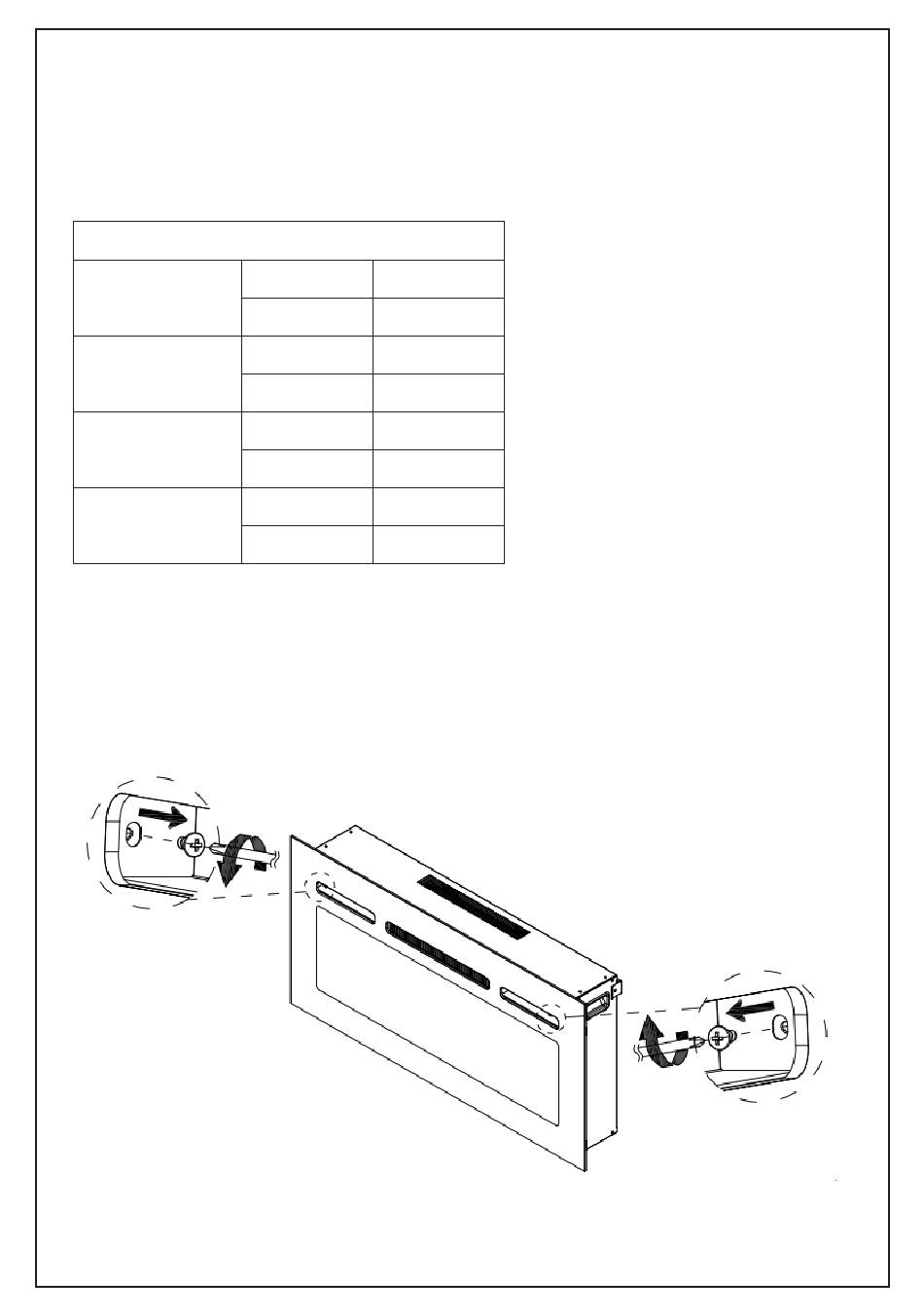

STEP B. Fix the four wall anchors in each side of the fireplace box according to the
dimensions showed on the drawing. Figure (B)
STEP C. Take off the two screws in both sides of fireplace. Figure (C)
STEP D. Have two persons to take the glass panel out of the fireplace box. Place it to a
soft and clean place. Figure (D)
A B
L
L
32.87'' 34.49''
83.5cm 87.6cm
36.81'' 38.43''
93.5cm 97.6cm
46.85'' 48.46''
119.0cm 123.1cm
(C)
