VERSION # 21-02-03
1 / 7

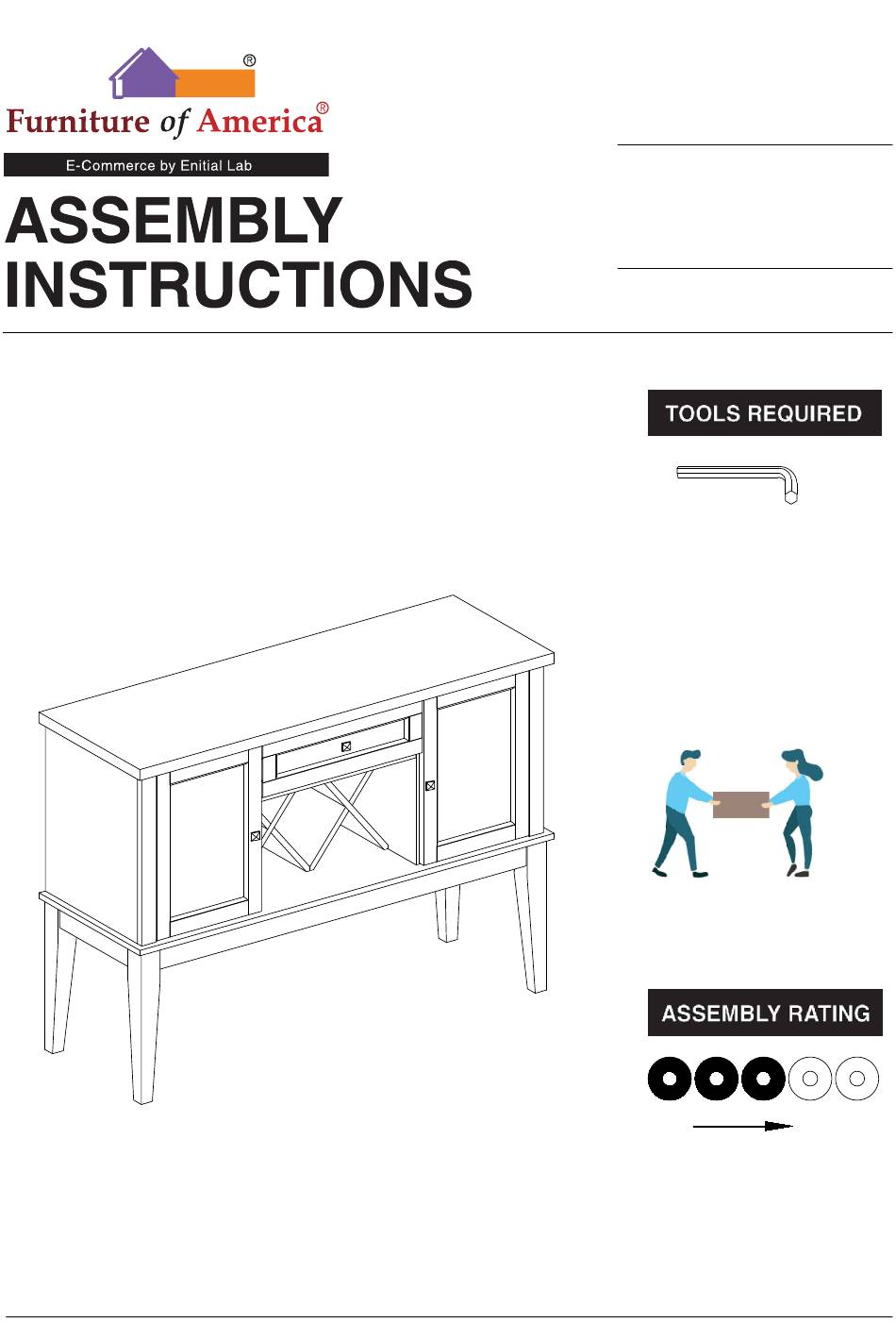

MODEL #
CM3916SV
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Hillsview CM3916SV
Summary of Contents for Furniture of America Hillsview CM3916SV
- Page 1 MODEL # CM3916SV Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 21-02-03 1 / 7...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 7...
- Page 5 SERVER CM3916SV #1 1pc #2 4pcs Top Frame #A 8pcs #B 8pcs #C 8pcs #D 1pc Bolt Lock Washer Flat Washer Allen Wrench 4mm Ø5/16" x 2-1/2" Ø5/16" Ø5/16" #E 1 Set Anti Tip Kit 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Align legs (#2) to the top frame (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x 1pc Part #2 x 4pcs Hardware #A x 8pcs Hardware #B x 8pcs Hardware #C x 8pcs Hardware #E x 1Set 6 / 7...
- Page 7 7 / 7...
