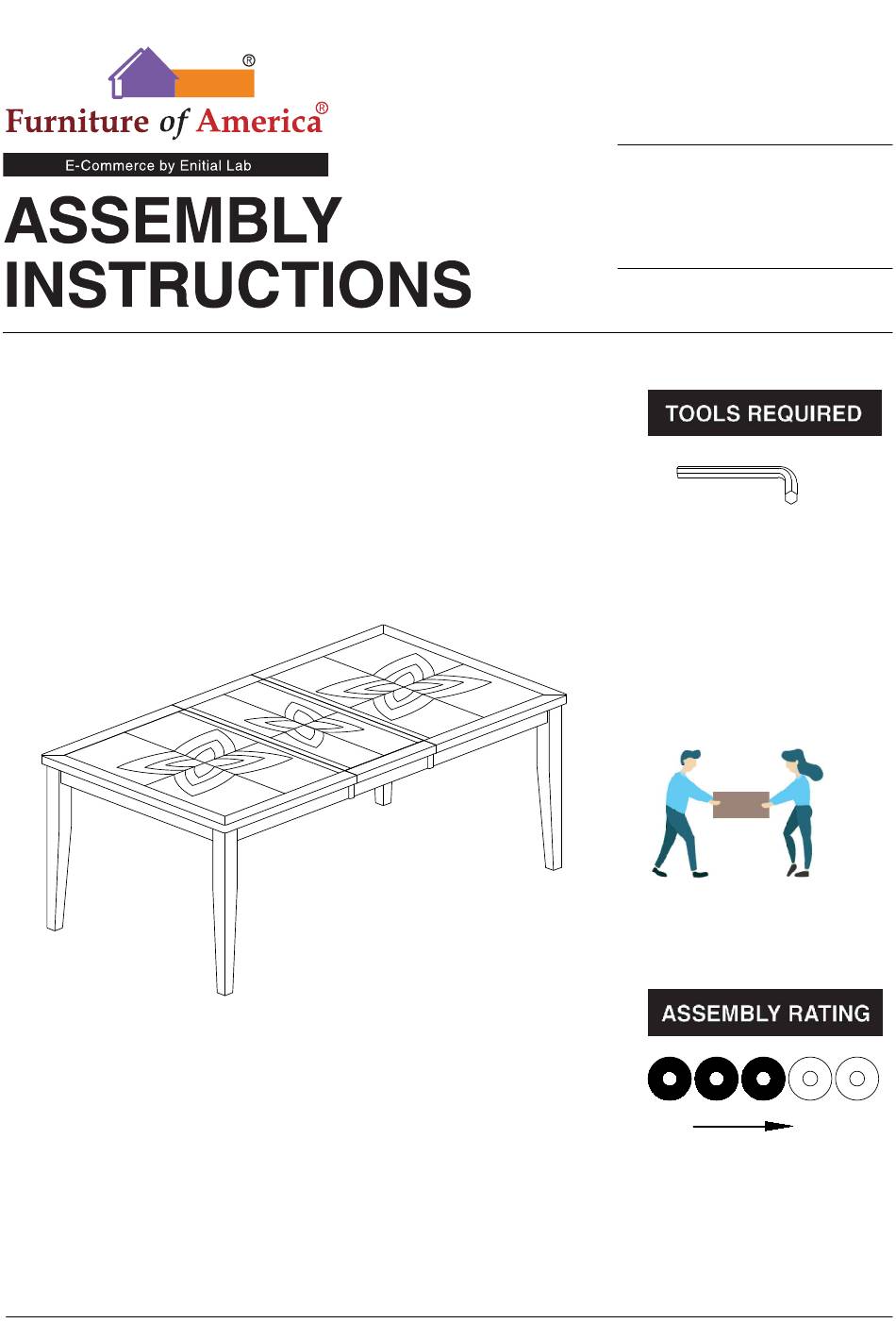

- Page 1 MODEL # CM3916T-78 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 21-02-03 1 / 7...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 7...
- Page 5 TABLE CM3916T-78 #1 1pc #2 1pc #3 4pcs Table Top Leaf #D 1pc #C 8pcs #B 8pcs #A 8pcs Wrench 12mm Bolt Lock Washer Flat Washer Ø5/16" Ø5/16" x 2-1/2" Ø5/16" 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Align legs (#3) to the top (#1), then secure by using Part #1 x 1pc bolts (#A) with washers Part #3 x 4pcs (#B,C). Hardware #A x 8pcs Hardware #B x 8pcs Hardware #C x 8pcs Part #2 x 1pc Unlock the mechanism underneath the table top, then extend the table top.
- Page 7 ASSEMBLY INSTRUCTIONS Lock the leaf to the table top by locking the mechanism underneath the table top. 7 / 7...
