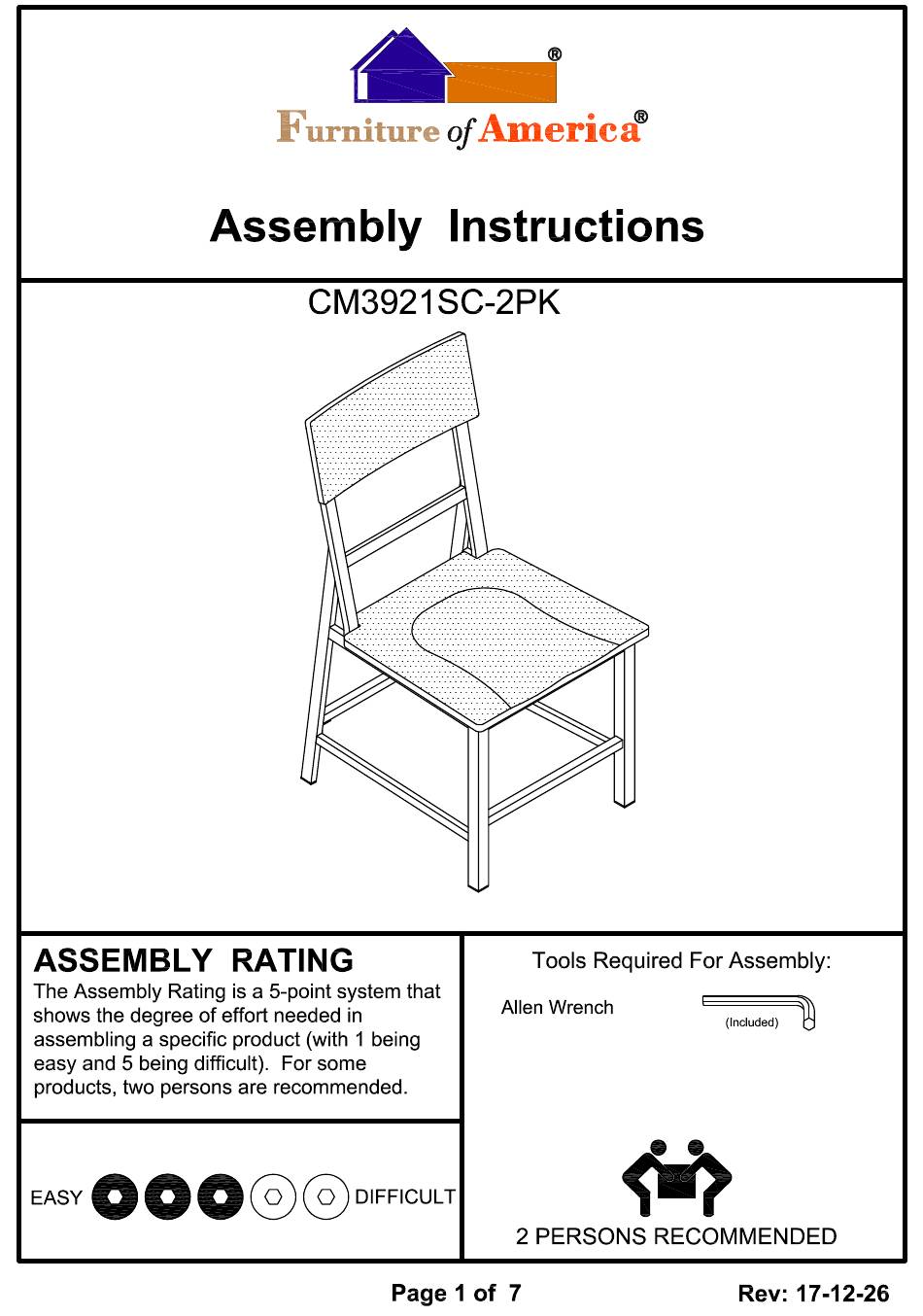

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Insert the support bars (#3,4,5,6,7) to the right side frame (#2) as shown in the diagram.
- Page 5 1) Secure support bars (#3,4,5) to right side frame (#2) by using bolts (#A) with washers (#C,D). 2) Secure support bar (#6) to right side frame (#2) by using bolts (#A) with washers (#C,D). 3) Secure support bar (#7) to right side frame (#2) by using bolts (#A) with washers (#D).
- Page 6 3) Secure support bar (#7) to left side frame (#1) by using bolts (#A) with washers (#C). 1) Secure support bars (#3,4,5) to left side frame (#1) by using bolts (#A) with washers (#C,D). 2) Secure support bar (#6) to left side frame (#1) by using bolts (#A) with washers (#C,D).
- Page 7 Align back panel (#8) to the holes of the side frames (#1,2). Secure by using bolts (#B). ASSEMBLY COMPLETED...
