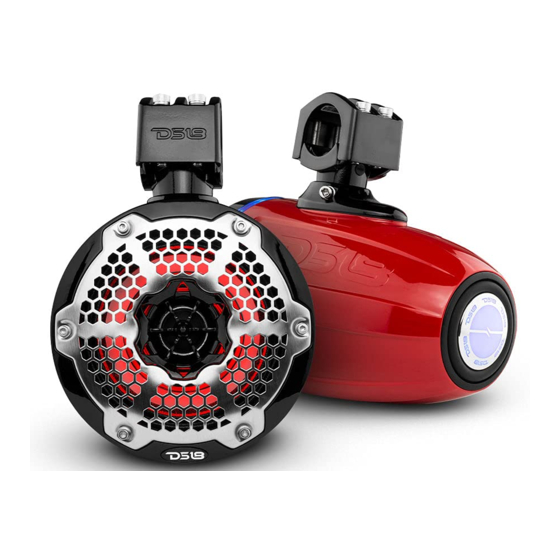

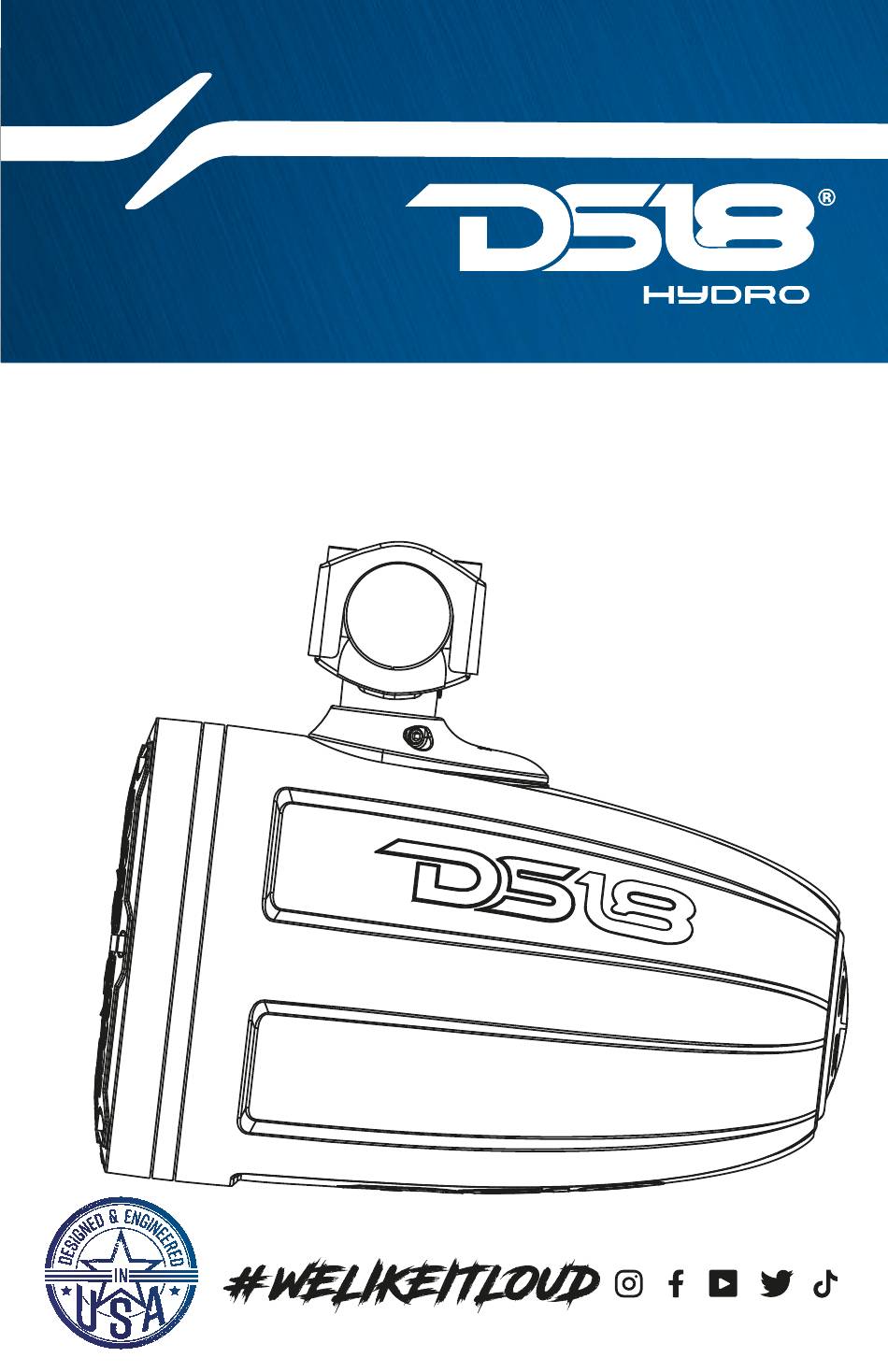

- Page 1 OWNER’S MANUAL NXL-X6TPNEO 6.5” Neodymium Marine Towers with Built-in Passive Radiator, 1" Driver and RGB LED Lights...
- Page 2 NXL-X6TPNEO General Specifications 6.5" Nominal Diameter......4 ohms Nominal Impedance......150W RMS Power Handling....... 450W MAX Power Handling....... 93dB Sensitivity (1w/1m)......70Hz-21Khz Frequency Response......90 Hz Recommended HI Pass Crossover.. Body / Features Enclosure Material......Injection PC+ABS (black and red) Injection ASA (white) IP65 + UV Stable Marine Grade Type......
- Page 3 NXL-X6TPNEO Thiele & Small Parameters Equivilant Volume Vas..8.5 L Excursion (one way) Xmax..Free Air Resonance Fs... 75Hz Total Factor Qts..0.786 Speaker Measurements Overall Diameter........ 6.93" / 176.1mm Overall Depth........11.33" / 287.8mm Overall Height........10.7" / 271.7mm DIMENSIONS 2.40”/60.9mm 4.13”/104.9mm...
- Page 4 1 Pair 6.5” Wakeboard Pod Tower Speaker 1 Piece 6 mm Hex wrench Chromed 1 Piece 4 mm Hex wrench Chromed 1 Pair NBR P ad For 1” to 3” tube adjust 1 Pair Stainless Safety Rope 1 Pcs Screw Fastening Glue...
-
Page 6: Speaker Wires
Cut the length of rubber pad and wires outlet according to the diameter of installation pipe. Soldering,Heat shrink speaker wires... - Page 7 Step 7:Wrap the rubber pad around the pipe and align wire out hole According to the diagram. Rubber pad Step 7 Step 8: Push the wire into the tube, press on the rubber pad,and lock the the top clamp . Step 9: Take down the safety rope and hang it on the pipe, lock the screw gasket safety rope lifting ring on the clamp base, and apply screw fastening glue on the screw before locking.
- Page 8 Step 11: During the mounting process you should have located the spot to drill your tower bar for the 6 conductor wire (Speaker and RGB lightning wiring) insertion. Or NOT (see Tie-wrap solution below) Step 12: Remove Wire NBR Plug and Slide the wire threw the hole Snake the wire down to the bottom of the tower tube in a location that the...
- Page 9 Step 13...
- Page 10 FOR MORE INFORMATION PLEASE VISIT DS18.COM...
