Cisco 811 and 813 Router Cabling and Setup
1
Cisco One-Year Limited Hardware Warranty Terms
2
Overview
3
Parts List
4
Verify the PC Setup
5
Connect the Cisco 811 or 813 Router to a PC
6
Connect the Cisco 811 or 813 Router to a Hub
7
Connect an ISDN Line
8
Connect Telephone, Fax Machine, or Modem
9
Connect the Power and Turn On the Router
10
Verifying the LEDs
11
Obtaining Documentation
12
Documentation Feedback
13
Cisco Product Security Overview
14
Obtaining Technical Assistance
15
Obtaining Additional Publications and Information
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for Cisco 811
Summary of Contents for Cisco 811
- Page 1 Cisco One-Year Limited Hardware Warranty Terms Overview Parts List Verify the PC Setup Connect the Cisco 811 or 813 Router to a PC Connect the Cisco 811 or 813 Router to a Hub Connect an ISDN Line Connect Telephone, Fax Machine, or Modem...
-
Page 2: Cisco One-Year Limited Hardware Warranty Terms
Cisco One-Year Limited Hardware Warranty Terms There are special terms applicable to your hardware warranty and various services that you can use during the warranty period. Your formal Warranty Statement, including the warranties and license agreements applicable to Cisco software, is available on Cisco.com. -
Page 3: Parts List

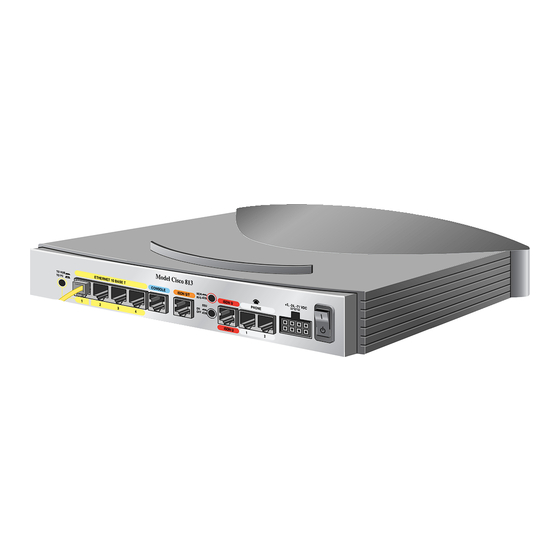

Maintenance contract number Overview This document describes the basic process of cabling and configuring the Internet access device, the Cisco 811 or 813 router. For advanced cabling information, refer to the Cisco 811 and 813 Router Hardware Installation Guide. For advanced configuration information, refer to the Cisco 800 Series Router Software Configuration Guide. -
Page 4: Connect The Cisco 811 Or 813 Router To A Pc
Connect the Cisco 811 or 813 Router to a PC Follow these steps to connect the Cisco 811 or 813 router to a PC: Connect the yellow Ethernet cable from the yellow Ethernet port (Cisco 811 router) or from any of the yellow Ethernet Step 1 ports (Cisco 813 router) on the back panel of the router to the Ethernet port on the NIC on the computer. -
Page 5: Connect The Cisco 811 Or 813 Router To A Hub
Follow these steps to connect the Cisco 811 or 813 router to a hub: Step 1 Connect the yellow Ethernet cable from the yellow Ethernet port (Cisco 811 router) or from any of the yellow Ethernet ports (Cisco 813 router) on the back panel of the router to the hub. -
Page 6: Connect An Isdn Line
Always connect the red cable to the red ISDN U port on the router. Do not connect either cable to the yellow Caution Ethernet port. Accidently connecting these cables to the wrong port can damage your router. Figure 3 Connecting a Cisco 811 or 813 Router to an ISDN U Line TO HU B TO PC M o d el C... -
Page 7: Connect Telephone, Fax Machine, Or Modem
Connect Telephone, Fax Machine, or Modem If you have a Cisco 813 router, you can connect a touch-tone telephone, fax machine, or modem. Use the cables provided with these devices. The gray PHONE 1 and PHONE 2 ports are RJ-11 connectors. Do not connect the router telephone ports to the telephone wall jack. -
Page 8: Verifying The Leds
Connect the Power and Turn On the Router Follow these steps to connect power to the Cisco 811 or 813 router and turn it on. Figure 5 Connecting the Power to a Cisco 811 or 813 Router TO HU B... -
Page 9: Obtaining Documentation
Obtaining Documentation Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems. Cisco.com You can access the most current Cisco documentation at this URL: http://www.cisco.com/cisco/web/psa/default.html?mode=prod... -
Page 10: Cisco Product Security Overview
Cisco Product Security Overview Cisco provides a free online Security Vulnerability Policy portal at this URL: http://www.cisco.com/en/US/products/products_security_vulnerability_policy.html From this site, you can perform these tasks: • Report security vulnerabilities in Cisco products. • Obtain assistance with security incidents that involve Cisco products. •... -
Page 11: Submitting A Service Request
Use the Cisco Product Identification (CPI) tool to locate your product serial number before submitting a web or phone Note request for service. You can access the CPI tool from the Cisco Technical Support Website by clicking the Tools & Resources link under Documentation &... - Page 12 • Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources.
