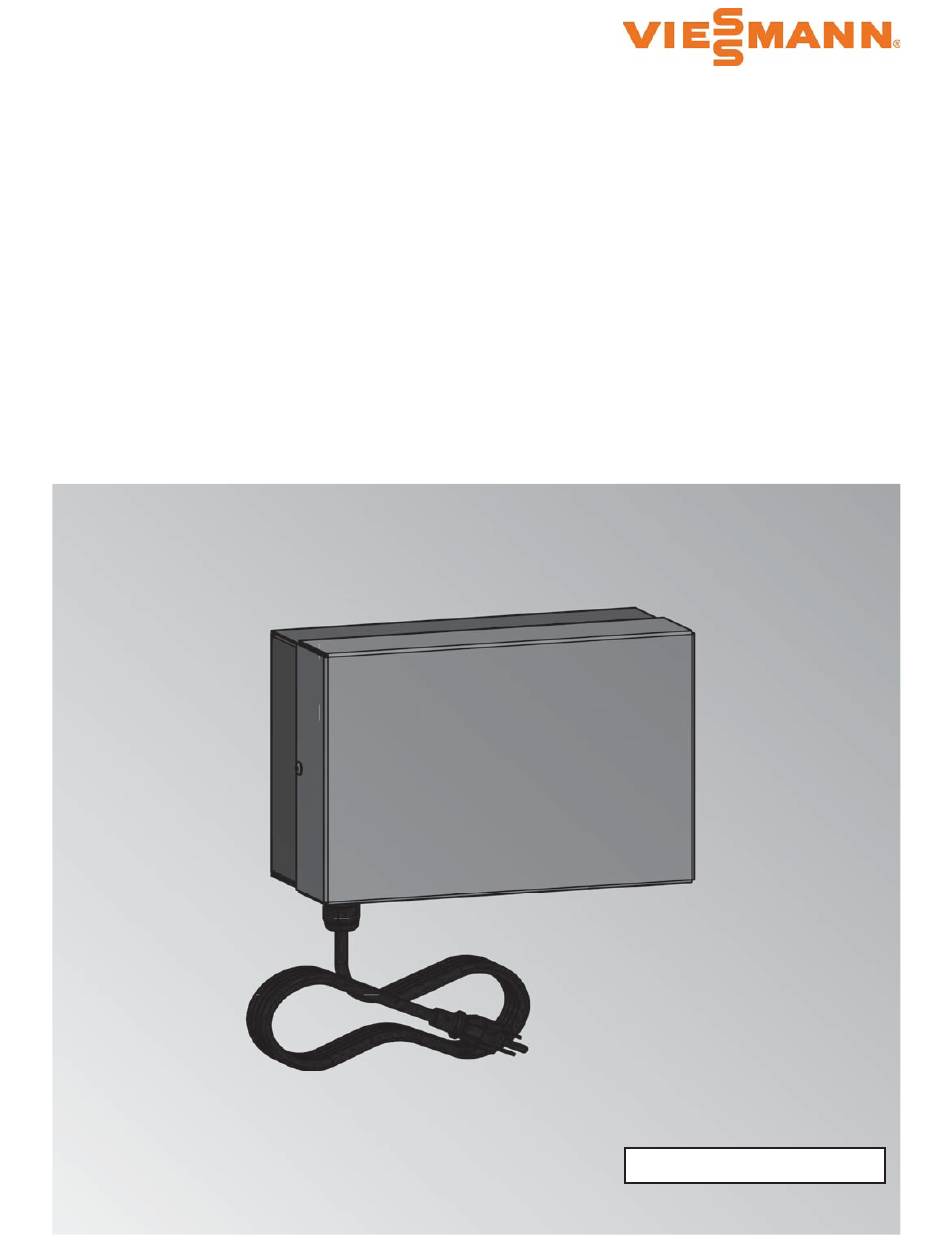

Installation and
Service Instructions
for use by heating contractor
BMS communication with heating systems via BACnet
WAGO BACnet/IP with MS/TP router gateway
WAGO BACnet/IP
MS/TP ROUTER GATEWAY
6196 911 - 01
07/2022
WITH

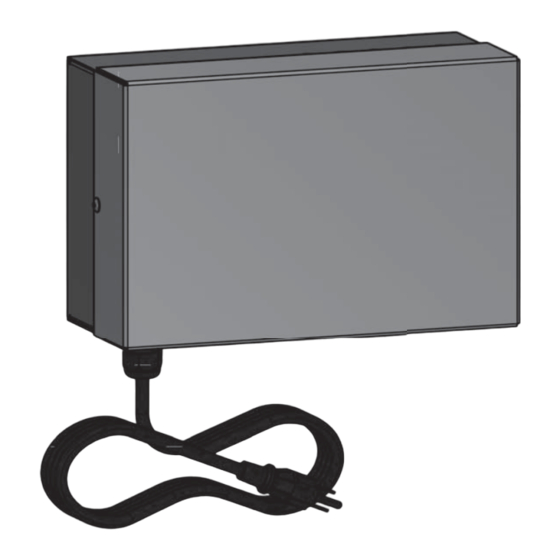

Product may not be exactly as shown
Product may not be exactly as shown
IMPORTANT
IMPORTANT
Read and save these instructions
Read and save these instructions
for future reference.
for future reference.
Please file in Service Binder
Advertisement
Table of Contents
Related Manuals for WAGO BACnet/IP
Summary of Contents for WAGO BACnet/IP
- Page 1 Installation and Service Instructions for use by heating contractor BMS communication with heating systems via BACnet WAGO BACnet/IP with MS/TP router gateway WAGO BACnet/IP WITH MS/TP ROUTER GATEWAY Product may not be exactly as shown Product may not be exactly as shown...
-
Page 2: Safety, Installation And Warranty Requirements
Safety WAGO Gateway Installation and Service Safety, Installation and Warranty Requirements Safety, Installation and Warranty Requirements Please ensure that these instructions are read and understood before commencing installation. Failure to comply with the instructions listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life. -
Page 3: Table Of Contents
Product Information ...........5 Spare Parts Lists ............5 Mounting the Gateway ..........6 Preparing for Installation ..........7 Quick Start Guide WAGO BACnet/IP with MS/TP Router .. 8 Process Overview .............12 Installing the Module ..........12 Connections and Operating Elements ......13 Connecting and Releasing Cores .........15 Establishing the CAN Bus Connection ......16... -
Page 4: Important Regulatory And Installation Requirements
General Information WAGO Gateway Installation and Service Important Regulatory and Installation Requirements Approvals Please carefully read this manual prior to attempting Viessmann boilers, burners and controls are approved for installation. Any warranty is null and void if these sale in North America by CSA International. -
Page 5: Intended Use
Viessmann system are modified from their intended function. Product Information The WAGO BACnet/IP gateway is used to connect Viessmann control units to BACnet systems. For supported devices and other valid product documentation, use the QR code on the left. -
Page 6: Mounting The Gateway
Installation WAGO Gateway Installation and Service Mounting the Gateway 1. Loosen the retaining screws from the extension kit enclosure (do not remove). 2. Remove cover and set aside. 3. Mount the extension module enclosure to the wall using the appropriate hardware. -
Page 7: Preparing For Installation
WAGO BACnet gateway system overview Legend A Viessmann boiler B Building management system C Terminator 120 D Gateway E Power supply unit F Laptop with web browser and WAGO Web-Visu G Module enclosure H BACnet IP to MS/TP router... -
Page 8: Quick Start Guide Wago Bacnet/Ip With Ms/Tp Router
Installation WAGO Gateway Installation and Service Quick Start Guide WAGO BACnet/IP with MS/TP Router Install WAGO Gateway Power up and connect WAGO Gateway to heat generators via CAN-Bus (91 plug). H Power Supply 24VDC (116 mA, 2.8 W) H Polarity sensitive (H, and L) - Page 9 Installation WAGO Gateway Installation and Service Quick Start Guide WAGO BACnet/IP with MS/TP Router (continued) Add Data points Navigate to Datapoints / CAN-Status Make sure you see all the heat generators you want to add to the system Select “Show Datapoints” and Confirm action to discover...
- Page 10 WBM - IP Address and UDP Port (Optional) Note: It is recommended to not change the IP addresses for the Wago gateway and the MS/TP router as they both need to be on the same IP subnet to communicate.
- Page 11 Installation WAGO Gateway Installation and Service Quick Start Guide WAGO BACnet/IP with MS/TP Router (continued) WAGO BACnet Configurator - Set BACnet Device ID (Optional) Note: download the tool from the link on the left. 1. Scan the network for BACnet devices 2.
-
Page 12: Process Overview
Installation WAGO Gateway Installation and Service Process Overview Step Responsibility Page Install the module. Contractor Establish the CAN bus connection. Contractor Connect the plug-in attachment. Contractor Establish the connection to the BACnet. IT expert/system integrator Power supply Electrician Commission the gateway. -
Page 13: Connections And Operating Elements
G CAN low, for looping through the CAN bus O Service interface: LAN connection for connection H CAN high, for looping through the CAN bus to PC/laptop or BACnet/IP connection K CAN bus shield P Memory card slot L 24VDC supply voltage connection... - Page 14 Installation WAGO Gateway Installation and Service Connections and Operating Elements (continued) LED indicators Status Meaning Measure User LED U1 Green The connection to the boiler is active. The CAN bus interface has the status H Check CAN bus connection: “Bus Off”: Short circuit or other serious...
-
Page 15: Connecting And Releasing Cores
Installation WAGO Gateway Installation and Service Connecting and Releasing Cores Connections Gateway 1. Insert a small flat head screwdriver into the opening directly above the wire.. 2. Tilt the handle of the screwdriver up. 3. Pull the wire straight out. -
Page 16: Establishing The Can Bus Connection
Installation WAGO Gateway Installation and Service Establishing the CAN Bus Connection H The Viessmann CAN bus is designed for “line” bus topology with a terminator at both ends (accessories). H With CAN bus, the transmission quality and the cable lengths depend on the electrical properties of the cable: –... - Page 17 Installation WAGO Gateway Installation and Service Establishing the CAN Bus Connection (continued) Legend A CAN bus shield B Cable for lA for controlling the boiler (standard delivery of the gateway) Installation and service instructions for boiler control unit...
-
Page 18: Connecting The Plug-In Attachment
Installation WAGO Gateway Installation and Service Connecting the Plug-in Attachment WAGO BACnet/IP gateway The plug-in attachment (standard delivery) must be plugged in. Do not connect the plug-in attachment until the CAN bus cable has been connected. If the gateway is at the beginning or end of the CAN bus:... -
Page 19: Establishing The Connection To The Bacnet/Ip Gateway
Installation WAGO Gateway Installation and Service Establishing the Connection to the BACnet/IP Gateway The connection to the network must be established by the system integrator. Legend A Connect BACnet/IP via RJ45 interface... -
Page 20: Connecting The Gateway To The Power Supply Unit
Connecting the Gateway to the Power Supply Unit Connecting cores in the power supply unit. Legend A Cable cores between gateway and power supply The WAGO gateway is supplied in the encloser with the unit (standard delivery) power supply unit prewired to the gateway. -
Page 21: Power Supply
Installation WAGO Gateway Installation and Service Power Supply General information The WAGO gateway comes complete with a 6 ft. (2 m) IMPORTANT power cord with convience plug for simplified installation. Electrical installations must comply with the latest edition of: WARNING In the U.S.A., the National Electrical Code (NEC),... -
Page 22: Commissioning The Gateway
BACnet-specific error is present. Clarification with system integrator is required 4. Scan the network for BACnet devices. Right click on the WAGO Gateway, and select “Add to Database” Connecting the Plug-in Attachment Dismounting the Terminals (continued) If the gateway or power supply unit need to be dismounted, e.g. -
Page 23: Dismounting The Gateway
Installation WAGO Gateway Installation and Service Dismounting the Gateway Connecting the Plug-in Attachment Dismounting the controller Connecting the Plug-in Attachment Dismounting the Power Supply Unit... -
Page 24: Gateway
Specifications WAGO Gateway Installation and Service Connecting the Plug-in Attachment Gateway (continued) WAGO BACnet/IP gateway Power supply 24VDC Power consumption Max. 116 mA Nominal rating 2.8 W Permissible ambient temperature H Operation 32 to 104°F (0 to 40°C) H Storage -4 to 140°F (–20 to +60°C) -
Page 25: Power Supply
Specifications WAGO Gateway Installation and Service Connecting the Plug-in Attachment Power Supply Power supply unit Rated voltage 100 to 240V~ Rated frequency 50 to 60 Hz Rated current 1.34A Output voltage 24VDC Permissible ambient temperature H Operation 32 to 104°F (0 to 40°C) H Storage and transport -40 to 185°F (–40 to +85°C) -
Page 26: Bacnet/Ip To Ms/Tp Router Specification
To provide a BACnet MS/TP interface to the Viessmann MS/TP Port Automation Gateway BACnet/IP. Compliance-----------------ANSI/ASHRAE 135 (ISO 16484-5) The router routes messages between BACnet/IP and Data Rate----------------9,600; 16,200; 38,400; 76,800 bps BACnet MS/TP networks as per the ANSI/ ASHRAE 135 Physical Layer--------------------------------------------------EIA-485 (ISO 16484-5) standard. - Page 27 IP address modified to match RJ-45 connector. To reset the router to its default values the default subnet of the BASrouter and Wago gateway. (except for configuration settings), press and hold the Reset IP button using a paper clip for at least 3 seconds while the router is powered.
- Page 28 Specifications WAGO Gateway Installation and Service BACnet/IP to MS/TP Router Specification (continued) Web page navigation The BASrouter has a navigation bar at the top of the web page which can be used to navigate through all its configuration, advanced settings, status, bdt and fdt tables, and security tabs.
- Page 29 This is the unique 8-bit (0–127) MAC address of the default. Usually, this default value should not be changed. router’s MS/TP port, in decimal. Lower MAC address In typical networks, each BACnet/IP device will use the numbers are preferred with the default recommended. same UDP port.
-
Page 30: Final Decommissioning And Disposal
Additional Information WAGO Gateway Installation and Service Connecting the Plug-in Attachment Final Decommissioning and Disposal (continued) Viessmann products can be recycled. Components and substances from the system are not part of ordinary household waste. For decommissioning the system, isolate the system from the power supply and allow components to cool down where appropriate. - Page 31 WAGO Gateway Installation and Service...
- Page 32 WAGO gateway Installation and Service...
